Lockheed Martin F-35 Lightning II
Lockheed Martin F-35 Lightning II
|F-35 Lightning II|

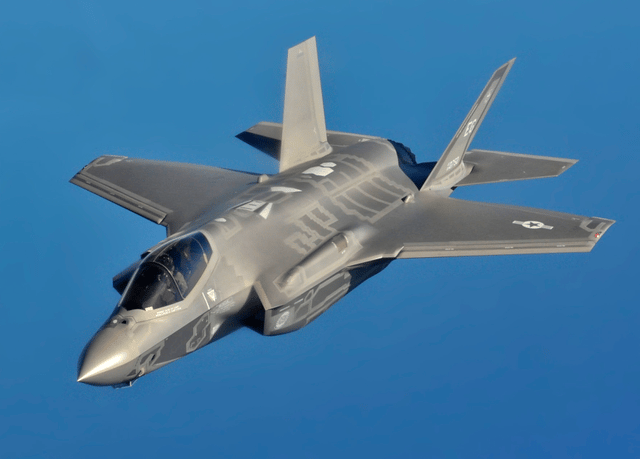

|F-35A Lightning II|
|Role||Stealth multirole fighter|
|National origin||United States|
|Manufacturer||Lockheed Martin Aeronautics|
|First flight||15 December 2006 (2006-12-15)(F-35A)|
|Introduction||F-35B: 31 July 2015 (USMC)|
F-35A: 2 August 2016 (USAF)
F-35C: 28 February 2019 (USN)
|Primary users||United States Air Force|
United States Marine Corps
United States Navy
Royal Air Force
See Operators section for others
|Number built||425+ as of 1 September 2019|
|Program cost||US$1.508 trillion (through 2070 in then-year dollars), US$55.1B for RDT&E, $319.1B for procurement, $4.8B for MILCON, $1123.8B for operations & sustainment (2015 estimate)|
|Developed from||Lockheed Martin X-35|
|F-35B tests on USS Wasp in 2011|
|Short TakeOff |
|BF-04 vertical landing |
The Lockheed Martin F-35 Lightning II is a family of single-seat, single-engine, all-weather, stealth, fifth-generation, multirole combat aircraft, designed for ground-attack and air-superiority missions. It is built by Lockheed Martin and many subcontractors, including Northrop Grumman, Pratt & Whitney, and BAE Systems.
The F-35 has three main models: the conventional takeoff and landing F-35A (CTOL), the short take-off and vertical-landing F-35B (STOVL), and the catapult-assisted take-off but arrested recovery, carrier-based F-35C (CATOBAR). The F-35 descends from the Lockheed Martin X-35, the design that was awarded the Joint Strike Fighter (JSF) program over the competing Boeing X-32.
The United States principally funds F-35 development, with additional funding from other NATO members and close U.S. allies, including the United Kingdom, Italy, Australia, Canada, Norway, Denmark, the Netherlands, and formerly Turkey. These funders generally receive subcontracts to manufacture components for the aircraft; for example, Turkey was the sole supplier of several F-35 parts until its removal from the program in July 2019. Several other countries have ordered, or are considering ordering, the aircraft.
As the largest and most expensive military program ever, the F-35 became the subject of much scrutiny and criticism in the U.S. and in other countries. In 2013 and 2014, critics argued that the plane was "plagued with design flaws", with many blaming the procurement process in which Lockheed was allowed "to design, test, and produce the F-35 all at the same time," instead of identifying and fixing "defects before firing up its production line". By 2014, the program was "$163 billion over budget [and] seven years behind schedule". Critics also contend that the program's high sunk costs and political momentum make it "too big to kill".
The F-35 first flew on 15 December 2006. In July 2015, the United States Marines declared its first squadron of F-35B fighters ready for deployment. However, the DOD-based durability testing indicated the service life of early-production F-35B aircraft is well under the expected 8,000 flight hours, and may be as low as 2,100 flight hours. Lot 9 and later aircraft include design changes but service life testing has yet to occur. The U.S. Air Force declared its first squadron of F-35As ready for deployment in August 2016. The U.S. Navy declared its first F-35Cs ready in February 2019. In 2018, the F-35 made its combat debut with the Israeli Air Force.
|F-35 Lightning II|
|F-35A Lightning II|
|Role||Stealth multirole fighter|
|National origin||United States|
|Manufacturer||Lockheed Martin Aeronautics|
|First flight||15 December 2006 (2006-12-15)(F-35A)|
|Introduction||F-35B: 31 July 2015 (USMC)|
F-35A: 2 August 2016 (USAF)
F-35C: 28 February 2019 (USN)
|Primary users||United States Air Force|
United States Marine Corps
United States Navy
Royal Air Force
See Operators section for others
|Number built||425+ as of 1 September 2019|
|Program cost||US$1.508 trillion (through 2070 in then-year dollars), US$55.1B for RDT&E, $319.1B for procurement, $4.8B for MILCON, $1123.8B for operations & sustainment (2015 estimate)|
|Developed from||Lockheed Martin X-35|
|F-35B tests on USS Wasp in 2011|
|Short TakeOff |
|BF-04 vertical landing |
F-35 development started in 1992 with the origins of the Joint Strike Fighter (JSF) program and was to culminate in full production by 2018. The X-35 first flew on 24 October 2000 and the F-35A on 15 December 2006.
The F-35 was developed to replace most US fighter jets with the variants of a single design that would be common to all branches of the military. It was developed in co-operation with a number of foreign partners, and, unlike the F-22 Raptor, intended to be available for export. Three variants were designed: the F-35A (CTOL), the F-35B (STOVL), and the F-35C (CATOBAR). Despite being intended to share most of their parts to reduce costs and improve maintenance logistics, by 2017, the effective commonality was only 20%. The program received considerable criticism for cost overruns during development and for the total projected cost of the program over the lifetime of the jets.
By 2017, the program was expected to cost $406.5 billion over its lifetime (i.e. until 2070) for acquisition of the jets, and an additional $1.1 trillion for operations and maintenance. A number of design deficiencies were alleged, such as: carrying a small internal payload; performance inferior to the aircraft being replaced, particularly the F-16; lack of safety in relying on a single engine; and flaws such as the vulnerability of the fuel tank to fire and the propensity for transonic roll-off (wing drop). The possible obsolescence of stealth technology was also criticized.
F-35A prototype being towed to its inauguration ceremony on 7 July 2006
F-35B's thrust vectoring nozzle and lift fan
Although several experimental designs have been developed since the 1960s, such as the unsuccessful Rockwell XFV-12, the F-35B is to be the first operational supersonic STOVL stealth fighter. The single-engine F-35 resembles the larger twin-engined Lockheed Martin F-22 Raptor, drawing design elements from it. The exhaust duct design was inspired by the General Dynamics Model 200, proposed for a 1972 supersonic VTOL fighter requirement for the Sea Control Ship.
Lockheed Martin has suggested that the F-35 could replace the USAF's F-15C/D fighters in the air-superiority role and the F-15E Strike Eagle in the ground-attack role. It has also stated the F-35 is intended to have close- and long-range air-to-air capability second only to that of the F-22 Raptor, and that the F-35 has an advantage over the F-22 in basing flexibility and possesses "advanced sensors and information fusion".
Testifying before the House Appropriations Committee on 25 March 2009, acquisition deputy to the assistant secretary of the Air Force, Lt. Gen. Mark D. "Shack" Shackelford, stated that the F-35 is designed to be America's "premier surface-to-air missile killer, and is uniquely equipped for this mission with cutting-edge processing power, synthetic aperture radar integration techniques, and advanced target recognition".
Ostensible improvements over past-generation fighter aircraft include:
Durable, low-maintenance stealth technology, using structural fiber mat instead of the high-maintenance coatings of legacy stealth platforms
Integrated avionics and sensor fusion that combine information from off- and on-board sensors to increase the pilot's situational awareness and improve target identification and weapon delivery, and to relay information quickly to other command and control (C2) nodes
The Autonomic Logistics Global Sustainment, Autonomic Logistics Information System (ALIS), and Computerized maintenance management system to help ensure the aircraft can remain operational with minimal maintenance manpower The Pentagon has moved to open up the competitive bidding by other companies. This was after Lockheed Martin stated that instead of costing 20% less than the F-16 per flight hour, the F-35 would actually cost 12% more. Though the ALGS is intended to reduce maintenance costs, the company disagrees with including the cost of this system in the aircraft ownership calculations. The USMC has implemented a workaround for a cyber vulnerability in the system. The ALIS system currently requires a shipping-container load of servers to run, but Lockheed is working on a more portable version to support the Marines' expeditionary operations.
Electro-hydrostatic actuators run by a power-by-wire flight-control system
A modern and updated flight simulator, which may be used for a greater fraction of pilot training to reduce the costly flight hours of the actual aircraft
Lightweight, powerful lithium-ion batteries to provide power to run the control surfaces in an emergency
Structural composites in the F-35 are 35% of the airframe weight (up from 25% in the F-22). The majority of these are bismaleimide and composite epoxy materials. The F-35 will be the first mass-produced aircraft to include structural nanocomposites, namely carbon nanotube-reinforced epoxy. Experience of the F-22's problems with corrosion led to the F-35 using a gap filler that causes less galvanic corrosion to the airframe's skin, designed with fewer gaps requiring filler and implementing better drainage. The relatively short 35-foot wingspan of the A and B variants is set by the F-35B's requirement to fit inside the Navy's current amphibious assault ship parking area and elevators; the F-35C's longer wing is considered to be more fuel efficient.
A U.S. Navy study found that the F-35 will cost 30 to 40% more to maintain than current jet fighters, not accounting for inflation over the F-35's operational lifetime. A Pentagon study concluded a $1 trillion maintenance cost for the entire fleet over its lifespan, not accounting for inflation. The F-35 program office found that as of January 2014, costs for the F-35 fleet over a 53-year lifecycle was $857 billion. Costs for the fighter have been dropping and accounted for the 22 percent life cycle drop since 2010. Lockheed stated that by 2019, pricing for the fifth-generation aircraft will be less than fourth-generation fighters. An F-35A in 2019 is expected to cost $85 million per unit complete with engines and full mission systems, inflation adjusted from $75 million in December 2013.
An F-35A powerplant on display, 2014
The Pratt & Whitney F135 engine with Rolls-Royce LiftSystem, including roll posts, and rear vectoring nozzle for the F-35B, at the 2007 Paris Air Show
The Pratt & Whitney F135 powers the F-35. An alternative engine, the General Electric/Rolls-Royce F136, was being developed until it was canceled by its manufacturers in December 2011 for lack of funding from the Pentagon. The F135 and F136 engines are not designed to supercruise. However, the F-35 can briefly fly at Mach 1.2 for 150 miles without the use of an afterburner. The F135 is the second (radar) stealthy afterburning jet engine. Like the Pratt & Whitney F119 from which it was derived, the F135 has suffered afterburner pressure pulsations, or 'screech' at low altitude and high speed. The F-35 has a maximum speed of over Mach 1.6. With a maximum takeoff weight of 60,000 lb (27,000 kg), the Lightning II is considerably heavier than the lightweight fighters it replaces.
The STOVL F-35B is outfitted with the Rolls-Royce LiftSystem, designed by Lockheed Martin and developed by Rolls-Royce. This system is more similar to the German VJ 101D/E than the preceding STOVL Harrier Jump Jet and the Rolls-Royce Pegasus engine. The Lift System is composed of a lift fan, drive shaft, two roll posts and a "Three Bearing Swivel Module" (3BSM). The 3BSM is a thrust vectoring nozzle which allows the main engine exhaust to be deflected downward at the tail of the aircraft. The lift fan is near the front of the aircraft and provides a counterbalancing thrust using two counter-rotating blisks. It is powered by the engine's low-pressure (LP) turbine via a drive shaft and gearbox. Roll control during slow flight is achieved by diverting unheated engine bypass air through wing-mounted thrust nozzles called Roll Posts.
F136 funding came at the expense of other program elements, impacting on unit costs. The F136 team stated their engine had a greater temperature margin, potentially critical for VTOL operations in hot, high altitude conditions. Pratt & Whitney tested higher thrust versions of the F135, partly in response to GE's statements that the F136 is capable of producing more thrust than the 43,000 lbf (190 kN) of early F135s. In testing, the F135 has demonstrated a maximum thrust of over 50,000 lbf (220 kN); making it the most powerful engine ever installed in a fighter aircraft as of 2010. It is much heavier than previous fighter engines; the Heavy Underway Replenishment system needed to transfer the F135 between ships is an unfunded USN requirement. Thermoelectric-powered sensors monitor turbine bearing health. At the end of May 2017 Pratt and Whitney announced the F135 Growth Option 1 had finished testing and was available for production. The upgrade requires the changing of the power module on older engines and can be seamlessly inserted into future production engines at a minimal increase in unit cost and no impact to delivery schedule. The Growth Option 1 offers a improvement of 6–10% thrust across the F-35 flight envelope while also getting a 5–6% fuel burn reduction.
F-35A with all weapon bay doors open.
The F-35A is armed with a GAU-22/A, a four-barrel version of the 25 mm GAU-12 Equalizer cannon. The cannon is mounted internally with 182 rounds for the F-35A or in an external pod with 220 rounds for the F-35B and F-35C; the gun pod has stealth features. The software that enables operational firing of the cannon is expected to be installed by 2018.
The F-35 has external hardpoints to carry missiles, bombs, and drop tanks at the expense of increased radar cross-section, and thus reduced stealth. These include four underwing pylons that can carry the AIM-120 AMRAAM BVR AAM, AGM-158 Joint Air to Surface Stand-off Missile (JASSM) cruise missile, and guided bombs; and two near-wingtip pylons for the AIM-9X Sidewinder and AIM-132 ASRAAM short-range air-to-air missiles (AAM).
The F-35 has two internal weapons bays with a total of four weapons stations. Two of these can carry air-to-surface missiles or bombs up to 2,000 lb (910 kg) each in the A and C models, or air-to-surface missiles or bombs up to 1,000 lb (450 kg) each in the B model; the other two stations are for smaller weapons such as air-to-air missiles. The weapon bays can carry AIM-120 AMRAAM, AIM-132 ASRAAM, the Joint Direct Attack Munition (JDAM), Paveway series of bombs, the Joint Standoff Weapon (JSOW), Brimstone, SPEAR 3 anti-tank missiles, and cluster munitions (Wind Corrected Munitions Dispenser).
An air-to-air missile load of eight AIM-120s and two AIM-9s is possible using internal and external weapons stations; a configuration of six 2,000 lb (910 kg) bombs, two AIM-120s and two AIM-9s can also be arranged. The Terma A/S multi-mission pod (MMP) could be used for different equipment and purposes, such as electronic warfare, aerial reconnaissance, or rear-facing tactical radar. The British Ministry of Defence plan to launch the Select Precision Effects at Range (SPEAR) Capability 3 missile from the internal bays of the F-35B, with four missiles per bay.
Lockheed Martin states that the weapons load can be configured as all-air-to-ground or all-air-to-air, and has suggested that a Block 5 version will carry three weapons per bay instead of two, replacing the heavy bomb with two smaller weapons such as AIM-120 AMRAAM air-to-air missiles. Upgrades are to allow each weapons bay to carry four GBU-39 Small Diameter Bombs (SDB) for A and C models, or three in F-35B. Another option is four GBU-53/B Small Diameter Bomb IIs in each bay on all F-35 variants. The F-35A has been outfitted with four SDB II bombs and an AMRAAM missile to test adequate bay door clearance, as well as the C-model, but the STOVL F-35B will not be able to carry the required load of four SDB IIs in each weapons bay upon reaching IOC because of weight and dimension constraints; F-35B bay changes are to be incorporated to increase SDB II loadout around 2022 in line with the Block 4 weapons suite. The Meteor air-to-air missile may be adapted for the F-35, a modified Meteor with smaller tailfins for the F-35 was revealed in September 2010; plans call for the carriage of four Meteors internally. The United Kingdom planned to use up to four AIM-132 ASRAAM missiles internally, later plans call for the carriage of two internal and two external ASRAAMs. The external ASRAAMs are planned to be carried on "stealthy" pylons; the missile allows attacks to slightly beyond visual range without employing radar.
Norway and Australia are funding an adaptation of the Naval Strike Missile (NSM) for the F-35. Under the designation Joint Strike Missile (JSM), it is to be the only cruise missile to fit the F-35's internal bays; according to studies two JSMs can be carried internally with an additional four externally. The F-35 is expected to take on the Wild Weasel mission, though there are no planned anti-radiation missiles for internal carriage. In September 2016, Orbital ATK unveiled its extended-range AARGM-ER incorporating a redesigned control section and 11.5 in (290 mm)-diameter rocket motor for twice the range for internal carriage on the F-35. The B61 nuclear bomb was initially scheduled for deployment in 2017; as of 2012 it was expected to be in the early 2020s, and in 2014 Congress moved to cut funding for the needed weapons integration work. Norton A. Schwartz agreed with the move and said that "F-35 investment dollars should realign to the long-range strike bomber". NATO partners who are buying the F-35 but cannot afford to make them dual-capable want the USAF to fund the conversions to allow their Lightning IIs to carry thermonuclear weapons. The USAF is trying to convince NATO partners who can afford the conversions to contribute to funding for those that cannot. The F-35 Block 4B will be able to carry two B61 nuclear bombs internally by 2024.
According to reports in 2002, solid-state lasers were being developed as optional weapons for the F-35. Lockheed is studying integrating a fiber laser onto the aircraft that uses spectral beam combining to channel energy from a stack of individual laser modules into a single, high-power beam, which can be scaled up or down for various levels of effects. Adding a laser would give the F-35 the ability to essentially burn missiles and other aircraft out of the sky. The F-35 is also one of the target platforms for the High Speed Strike Weapon if hypersonic missile development is successful.
The US Air Force plans to use the F-35A to primarily take up the close air support (CAS) mission in contested environments. Amid criticism that the aircraft is not well suited for the role compared to a dedicated attack platform, Air Force chief of staff Mark Welsh is putting focus on weapons for the F-35 to employ on CAS sorties including guided rockets, fragmentation rockets that would shatter into individual projectiles before impact, and lighter, smaller ammunition in higher capacity gun pods. Fragmentary rocket warheads would have greater effects than cannon shells fired from a gun because a single rocket would create a "thousand-round burst", delivering more projectiles than a strafing run could. Other weapons could take advantage of the aircraft's helmet-mounted cueing system to aim rather than needing to point the nose at a target. Institute for the Study of War's Christopher Harmer has questioned the use of such an expensive aircraft for CAS.
Stealth and signatures
Landing gear door and access panels of the F-35, showing its stealth sawtooth design
F-35A front profile in flight. The doors are opened to expose the aerial refueling inlet valve.
Among the design elements that reduce radar signature are chines that generate vortex lift in the same fashion as the SR-71 Blackbird, instead of the leading edge extensions of the F-16 and F/A-18. The small bumps just forward of the engine air intakes — part of the diverterless supersonic inlet, a simpler, lighter means to ensure high-quality airflow to the engine over a wide range of conditions — also eliminate radar reflections between the diverter and the aircraft's skin and reduce the amount of radar energy that reaches the engine fans to be reflected. Such reflection is also reduced by the Y-duct-type air intake ramps, which run parallel to the fuselage and not directly into the engine fans. Special care is taken during production to match the "boilerplate".
The F-35's radar-absorbent materials are designed to be more durable and require less maintenance than those on the F-117, B-2, and F-22. At some frequencies, the F-35 compares favorably to the F-22 in stealth, according to General Mike Hostage, commander of the Air Combat Command. Low-frequency radars can spot stealthy aircraft because of Rayleigh scattering, but such radars are also conspicuous, susceptible to clutter, and have low precision. The F-35's anti-radar design is primarily focused on the higher-frequency X-band used by missile lock and targeting sensors, rendering them ineffective beyond close ranges. Ground crews use Repair Verification Radar test sets to ensure that a given repair has not increased its radar signature, which is not a concern for non-stealth aircraft.
Like the Fighter Teen Series (F-14, F-15, F-16, F/A-18), the F-35 can carry large external fuel tanks, but flies most missions without them to keep its radar signature low.
In 2008, Air Force officials said the F-35 would be about twice as loud as the McDonnell Douglas F-15 Eagle at takeoff and up to four times as loud during landing. This led residents near two potential F-35 bases — Luke Air Force Base, Arizona, and Eglin Air Force Base, Florida — to request environmental impact studies about the jet's noise. The following year, the city of Valparaiso, Florida, adjacent to Eglin AFB, threatened to sue over the impending F-35 arrival; this lawsuit was settled in March 2010. In 2009, testing reportedly revealed the F-35 to be "only about as noisy as an F-16 fitted with a Pratt & Whitney F100-PW-200 engine" and quieter than the F-22 and F/A-18E/F. An acoustics study by Lockheed Martin and the Air Force found F-35 noise to be comparable to the F-22 and F/A-18E/F. A 2012 USAF environmental impact study found that replacing F-16s with F-35s at Tucson International Airport would subject more than 21 times as many residents to extreme noise levels. Meanwhile, the U.S. Navy began to develop ways to protect sailors' ears from the F-35's "thundering 152 decibels". But in October 2014, the Joint Strike Fighter program office said that the F-35B's take-off noise was only two decibels higher than a Super Hornet, a virtually indistinguishable difference to the human ear, and is even 10 decibels quieter when flying formations or landing.
F-35 cockpit mock-up
The F-35's cockpit has:
An Adacel cockpit speech-recognition system, a first for an operational US fixed-wing aircraft, although similar systems have been used on the AV-8B Harrier II and trialed in the F-16 VISTA and other aircraft.
A helmet-mounted display system.
A right-hand HOTAS side stick controller.
A Martin-Baker US16E ejection seat. Launched by a twin-catapult system housed in side rails, the seat is widely used in fighter jets, but can endanger lightweight pilots wearing the F-35's heavier-than-usual helmet.
An oxygen-generating system derived from the one on the F-22, which has been involved in multiple hypoxia incidents. Unlike the F-22, the flight profile of the F-35 is similar to other fighters that routinely use such systems. On 9 June 2017, the 55 F-35s at Luke Air Force Base were grounded after five pilots complained of hypoxia-like symptoms over a five-week span. Symptoms ranged from dizziness to tingling in their extremities. The suspension was initially expected to last one day, but was extended to give investigators more time. Flying was resumed on 20 June, with no direct cause having been found.
Sensors and avionics
Electro-optical target system (EOTS) under the nose of an F-35
The F-35's sensor and communications suite has situational awareness, command and control and network-centric warfare capabilities. The main sensor on board is the AN/APG-81 active electronically scanned array-radar, designed by Northrop Grumman Electronic Systems. It is augmented by the nose-mounted Electro-Optical Targeting System (EOTS), it provides the capabilities of an externally mounted Sniper Advanced Targeting Pod with a reduced radar cross-section. The AN/ASQ-239 (Barracuda) system is an improved version of the F-22's AN/ALR-94 electronic warfare suite, providing sensor fusion of radio frequency and infrared tracking functions, advanced radar warning receiver including geolocation targeting of threats, multispectral image countermeasures for self-defense against missiles, situational awareness and electronic surveillance, employing 10 radio frequency antennas embedded into the edges of the wing and tail. In September 2015, Lockheed unveiled the "Advanced EOTS" that offers short-wave infrared, high-definition television, infrared marker, and superior image detector resolution capabilities. Offered for the Block 4 configuration, it fits into the same area as the baseline EOTS with minimal changes while preserving stealth features.
Six additional passive infrared sensors are distributed over the aircraft as part of Northrop Grumman's electro-optical AN/AAQ-37 Distributed Aperture System (DAS), which acts as a missile warning system, reports missile launch locations, detects and tracks approaching aircraft spherically around the F-35, and replaces traditional night vision devices. All DAS functions are performed simultaneously, in every direction, at all times. The electronic warfare systems are designed by BAE Systems and include Northrop Grumman components. Functions such as the Electro-Optical Targeting System and the electronic warfare system are not usually integrated on fighters. A DAS sensor mounted in a test platform detected a two-stage ballistic missile launch 1,300 kilometers away.
The communications, navigation and identification (CNI) suite is designed by Northrop Grumman and includes the Multifunction Advanced Data Link (MADL), as one of a half dozen different physical links. The F-35 will be the first fighter with sensor fusion that combines radio frequency and IR tracking for continuous all-direction target detection and identification which is shared via MADL to other platforms without compromising low observability. Link 16 is also included for communication with legacy systems. The F-35 has been designed with synergy between sensors as a specific requirement, the aircraft's "senses" being expected to provide a more cohesive picture of the battlespace around it and be available for use in any possible way and combination with one another; for example, the AN/APG-81 multi-mode radar also acts as a part of the electronic warfare system. The Program Executive Officer (PEO) General Bogdan has described the sensor fusion software as one of the most difficult parts of the program.
Much of the F-35's software is written in C and C++ because of programmer availability; Ada83 code also is reused from the F-22. The Integrity DO-178B real-time operating system (RTOS) from Green Hills Software runs on COTS Freescale PowerPC processors. The final Block 3 software is planned to have 8.6 million lines of code. In 2010, Pentagon officials discovered that additional software may be needed. General Norton Schwartz has said that the software is the biggest factor that might delay the USAF's initial operational capability. In 2011, Michael Gilmore, Director of Operational Test & Evaluation, wrote that, "the F-35 mission systems software development and test is tending towards familiar historical patterns of extended development, discovery in flight test, and deferrals to later increments".
The electronic warfare and electro-optical systems are intended to detect and scan aircraft, allowing engagement or evasion of a hostile aircraft prior to being detected. The CATbird avionics testbed aircraft has proved capable of detecting and jamming radars, including the F-22's AN/APG-77. The F-35 was previously considered a platform for the Next Generation Jammer; attention shifted to using unmanned aircraft in this capacity instead. Several subsystems use Xilinx FPGAs; these COTS components enable supply refreshes from the commercial sector and fleet software upgrades for the software-defined radio systems.
Lockheed Martin's Dave Scott stated that sensor fusion boosts engine thrust and oil efficiency, increasing the aircraft's range. Air Force official Ellen M. Pawlikowski has proposed using the F-35 to control and coordinate multiple unmanned combat aerial vehicles (UCAVs). Using its sensors and communications equipment, a single F-35 could orchestrate an attack made by up to 20 armed UCAVs.
Helmet-mounted display system
VSI Helmet-mounted display system for the F-35
The F-35 does not need to be physically pointing at its target for weapons to be successful. Sensors can track and target a nearby aircraft from any orientation, provide the information to the pilot through their helmet (and therefore visible no matter which way the pilot is looking), and provide the seeker-head of a missile with sufficient information. Recent missile types provide a much greater ability to pursue a target regardless of the launch orientation, called "High Off-Boresight" capability. Sensors use combined radio frequency and infra red (SAIRST) to continually track nearby aircraft while the pilot's helmet-mounted display system (HMDS) displays and selects targets; the helmet system replaces the display-suite-mounted head-up display used in earlier fighters. Each helmet costs $400,000.
The F-35's systems provide the edge in the "observe, orient, decide, and act" OODA loop; stealth and advanced sensors aid in observation (while being difficult to observe), automated target tracking helps in orientation, sensor fusion simplifies decision making, and the aircraft's controls allow the pilot to keep their focus on the targets, rather than the controls of their aircraft.
Problems with the Vision Systems International helmet-mounted display led Lockheed Martin-Elbit Systems to issue a draft specification for alternative proposals in early 2011, to be based around the Anvis-9 night vision goggles. BAE Systems was selected to provide the alternative system in late 2011. The BAE Systems alternative helmet was to include all the features of the VSI system. However, adopting the alternative helmet would have required a cockpit redesign, but in 2013 development on the alternative helmet was halted because of progress on the baseline helmet.
In 2011, Lockheed Martin-Elbit granted VSI a contract to fix the vibration, jitter, night-vision and sensor display problems in their helmet-mounted display. A speculated potential improvement is the replacement of Intevac’s ISIE-10 day/night camera with the newer ISIE-11 model. In October 2012, Lockheed Martin-Elbit stated that progress had been made in resolving the technical issues of the helmet-mounted display, and cited positive reports from night flying tests; it had been questioned whether the helmet system allows pilots enough visibility at night to carry out precision tasks. In 2013, in spite of continuing problems with the helmet display, the F-35B model completed 19 nighttime vertical landings on board USS Wasp at sea, by using the DAS instead of the helmet's built-in night vision capabilities, which offer at best 20/35 vision.
In October 2013, development of the alternate helmet was halted. The current Gen 2 helmet is expected to meet the requirements to declare, in July 2015, that the F-35 has obtained initial operational capability. Beginning in 2016 with low rate initial production (LRIP) lot 7, the program will introduce a Gen 3 helmet that features an improved night vision camera, new liquid crystal displays, automated alignment and other software enhancements.
In July 2015, an F-35 pilot commented that the helmet may have been one of the issues that the F-35 faced while dogfighting against an F-16 during a test; "The helmet was too large for the space inside the canopy to adequately see behind the aircraft. There were multiple occasions when the bandit would've been visible (not blocked by the seat) but the helmet prevented getting in a position to see him (behind the high side of the seat, around the inside of the seat, or high near the lift vector)".
The program's maintenance concept is for any F-35 to be maintained in any F-35 maintenance facility and that all F-35 parts in all bases will be globally tracked and shared as needed. The commonality between the different variants has allowed the USMC to create their first aircraft maintenance Field Training Detachment to directly apply the lessons of the USAF to their F-35 maintenance operations. The aircraft has been designed for ease of maintenance, with 95% of all field replaceable parts "one deep" where nothing else has to be removed to get to the part in question. For instance the ejection seat can be replaced without removing the canopy, the use of low-maintenance electro-hydrostatic actuators instead of hydraulic systems and an all-composite skin without the fragile coatings found on earlier stealth aircraft.
The F-35 Joint Program Office has stated that the aircraft has received good reviews from pilots and maintainers, suggesting it is performing better than its predecessors did at a similar stage of development, and that the stealth type has proved relatively stable from a maintenance standpoint. This reported improvement is attributed to better maintenance training, as F-35 maintainers have received far more extensive instruction at this early stage of the program than on the F-22 Raptor. The F-35's stealth coatings are much easier to work with than those used on the Raptor. Cure times for coating repairs are lower and many of the fasteners and access panels are not coated, further reducing the workload for maintenance crews. Some of the F-35's radar-absorbent materials are baked into the jet's composite skin, which means its stealthy signature is not easily degraded. It is still harder to maintain (because of the need to preserve its stealth characteristics) than fourth-generation aircraft.
However, the DOT&E Report on the F-35 program published in January 2015 determined that the plane has not, in fact, reached any of the nine reliability measures the program was supposed to achieve by this point in its development and that the Joint Program Office has been re-categorizing failure incidents to make the plane look more reliable than it actually is. Further, the complexity of maintaining the F-35 means that, currently, none of the Services are ready to keep it in working order and instead "rely heavily on contractor support and unacceptable workarounds". DOT&E found that the program achieved 61 percent of planned flight hours and that the average rate of availability was as low as 28 percent for the F-35A and 33 percent for the F-35B. The program created a new "modeled achievable" flight hour projection "since low availability was preventing the full use of bed-down plan flight hours". According to the Assistant Secretary of the Air Force for Financial Management, in FY2014, each non-test F-35 flew only 7.7 hours per month, which amounts to approximately one sortie every 5.5 days—for combat purposes, a sortie rate so low as to be crippling. Mean flight hours between removal (MFHBR) have increased, but are still only 59 percent to 65 percent of the required threshold. DOT&E found that mean corrective maintenance time for critical failures got worse for the F-35A and the F-35C over the last year. Structural cracking is also proving to be a recurring and enduring problem that is not yet resolved.
The first delivered USAF F-35 on its delivery flight to Eglin Air Force Base in July 2011.
A U.S. Navy F-35C makes the aircraft's first arrested landing aboard the carrier USS Nimitz off the coast of San Diego.
The first F-35A (designated AA-1) was rolled out in Fort Worth, Texas, on 19 February 2006. In September 2006, the first engine run of the F135 in an airframe took place. On 15 December 2006, the F-35A completed its maiden flight. A modified Boeing 737–300, the Lockheed Martin CATBird has been used as an avionics test-bed for the F-35 program, including a duplication of the cockpit.
The first F-35B (designated BF-1) made its maiden flight on 11 June 2008, piloted by BAE Systems' test pilot Graham Tomlinson. Flight testing of the STOVL propulsion system began on 7 January 2010. The F-35B's first hover was on 17 March 2010, followed by its first vertical landing the next day. During a test flight on 10 June 2010, the F-35B STOVL aircraft achieved supersonic speeds as had the X-35B before. In January 2011, Lockheed Martin reported that a solution had been found for the cracking of an aluminum bulkhead during ground testing of the F-35B. In 2013, the F-35B suffered another bulkhead cracking incident. This will require redesign of the aircraft, which is already very close to the ultimate weight limit.
By June 2009, many of the initial flight test targets had been accomplished but the program was behind schedule. During 2008, a Pentagon Joint Estimate Team (JET) estimated that the program was two years behind the public schedule, a revised estimate in 2009 predicted a 30-month delay. Delays reduced planned production numbers by 122 aircraft through 2015 to provide an additional $2.8 billion for development; internal memos suggested that the official timeline would be extended by 13 months. The success of the JET led Ashton Carter calling for more such teams for other poorly performing projects.
Nearly 30 percent of test flights required more than routine maintenance to make the aircraft flightworthy again. As of March 2010, the F-35 program had used a million more man-hours than predicted. The U.S. Navy projected that lifecycle costs over a 65-year fleet life for all American F-35s to be $442 billion higher than U.S. Air Force projections. F-35 delays have led to shortfall of up to 100 jet fighters in the Navy/Marines team, although measures have been taken using existing assets to manage and reduce this shortfall.
The F-35C's maiden flight took place on 7 June 2010, at NAS Fort Worth JRB. A total of 11 U.S. Air Force F-35s arrived in fiscal year 2011. On 9 March 2011, all F-35s were grounded after a dual generator failure and oil leak in flight; the cause of the incident was discovered to have been the result of faulty maintenance. In 2012, Navy Commander Erik Etz of the F-35 program office commented that rigorous testing of the F-35's sensors had taken place during exercise Northern Edge 2011, and had served as a significant risk-reduction step.
On 2 August 2011, an F-35's integrated power package (IPP) failure during a standard engine test at Edwards Air Force Base led to the F-35 being immediately grounded for two weeks. On 10 August 2011, ground operations were re-instituted; preliminary inquiries indicated that a control valve did not function properly, leading to the IPP failure. On 18 August 2011, the flight ban was lifted for 18 of the 20 F-35s; two aircraft remained grounded for lack of monitoring systems. The IPP suffered a second software-related incident in 2013, this resulted in no disruption as the fleet was already grounded by separate engine issues.
On 25 October 2011, the F-35A reached its designed top speed of Mach 1.6 for the first time. Further testing demonstrated Mach 1.61 and 9.9g. On 11 February 2013, an F-35A completed its final test mission for clean wing flutter, reporting to be clear of flutter at speeds up to Mach 1.6. On 15 August 2012, an F-35B completed airborne engine start tests.
On 6 October 2012, the F-35A dropped its first bomb, followed three days later by an AIM-120 AMRAAM. On 28 November 2012, an F-35C performed a total of eleven weapon releases, including a GBU-31 JDAM and GBU-12 Paveway from its weapons bay in the first weapons released for the F-35C. On 5 June 2013, an F-35A at the Point Mugu Sea Test Range completed the first in-flight missile launch of an AIM-120 C5 AAVI (AMRAAM Air Vehicle Instrumented). It was launched from the internal weapons bay.
On 16 November 2012, the U.S. Marines received the first F-35B at MCAS Yuma, and the VMFA(AW)-121 unit is to be redesignated from a Boeing F/A-18 Hornet unit to an F-35B squadron. A February 2013 Time article revealed that Marine pilots are not allowed to perform a vertical landing—the maneuver is deemed too dangerous, and it is reserved only for Lockheed test pilots. On 21 March 2013, the USMC performed its first hover and vertical landing with an F-35B outside of a testing environment. On 10 May 2013, the F-35B completed its first vertical takeoff test. On 3 August 2013, the 500th vertical landing of an F-35 took place.
On 18 January 2013, the F-35B was grounded after the failure of a fueldraulic line in the propulsion system on 16 January. The problem was traced to an "improperly crimped" fluid line manufactured by Stratoflex. The Pentagon cleared all 25 F-35B aircraft to resume flight tests on 12 February 2013. On 22 February 2013, the U.S. Department of Defense grounded the entire fleet of 51 F-35s after the discovery of a cracked turbine blade in a U.S. Air Force F-35A at Edwards Air Force Base. On 28 February 2013, the grounding was lifted after an investigation concluded that the cracks in that particular engine resulted from stressful testing, including excessive heat for a prolonged period during flight, and did not reflect a fleetwide problem. The F-35C Lightning II carrier variant Joint Strike Fighter conducted its first carrier-based night flight operations aboard an aircraft carrier off the coast of San Diego on 13 November 2014.
On 5 June 2015, the U.S. Air Education and Training Command Accident Investigation Board reported that catastrophic engine failure had led to the destruction of an Air Force F-35A assigned to the 58th Fighter Squadron at Eglin Air Force Base, Florida, on 23 June 2014. The third-stage forward integral arm of a rotor had fractured and broke free during the takeoff roll. Pieces cut through the engine's fan case, engine bay, internal fuel tank and hydraulic and fuel lines before leaving through the aircraft's upper fuselage. Leaked fuel and hydraulic fluid ignited the fire, which destroyed the rear two-thirds of the aircraft. The destruction of the airframe resulted in the cancelation of the F-35's international debut at the 2014 Farnborough Airshow in England, the temporary grounding of the F-35 fleet and ongoing restrictions in the flight envelope.
The US Marines declared the aircraft had met initial operational capability on 31 July 2015, despite shortcomings in night operations, communications, software and weapons carriage capabilities. However, J. Michael Gilmore, director of the Pentagon’s Operational Test and Evaluation Office, criticized the operational trials as not valid. In an internal memo, Gilmore concluded "the exercise was so flawed that it 'was not an operational test … in either a formal or informal sense of the term.' Furthermore, the test 'did not—and could not—demonstrate' that the version of the F-35 that was evaluated 'is ready for real-world operational deployments, given the way the event was structured.'"
On 19 June 2015 the RAF successfully launched two 500 lb Paveway IV precision-guided bombs, making the test the first time non-US munitions were deployed by the aircraft. A Royal Navy F-35 fighter jet has conducted the first "rolling" landing on board Britain's newest aircraft carrier HMS Queen Elizabeth.
On 11 April 2016 the Joint Program Office confirmed that the Royal Netherlands Air Force (RNLAF) had cleared its KDC-10 aerial tanker to refuel the F-35, paving the way for the fighter’s international public debut at the RNLAF's Open Dagen (Open Days) at Leeuwarden on 10–11 June 2016. The testing required the fighter to refuel in daylight, dusk and night, with 30,000 lb. of fuel being transferred during the tests.
The Israel Air Force declared its F-35 fleet operationally capable on 6 December 2017. According to Kuwaiti newspaper Al Jarida, in July 2018 Israel had flown a test mission of at least three F-35 jets to Tehran and back from an airbase near Tel Aviv. While never confirmed publicly, a good number of military and political leaders in the region believed and still believe the story. According to the newspaper, Iran's supreme leader Ali Khamenei fired Iran’s air force chief and commander of Iran’s Revolutionary Guard Corps upon discovery of the mission.
(From the top) 33rd FW F-35A, F-35B and F-35C near Eglin AFB in May 2014.
In 2011, the Director of Operational Test and Evaluation warned that the USAF's plan to start unmonitored flight training "risks the occurrence of a serious mishap". The leaders of the United States Senate Committee on Armed Services called on Defense Secretary Leon Panetta to reconsider the plan. Despite the objections, expanded trial flights began in September 2012.
The F-35A and F-35B were cleared for flight training in early 2012. A military flight release for the F-35A was issued on 28 February 2012. The aircraft were restricted to basic maneuvers with no tactical training allowed. On 24 August 2012, a Marine pilot flew the F-35's 200th sortie at Eglin Air Force Base. The pilot said, "The aircraft have matured dramatically since the early days. The aircraft are predictable and seem to be maintainable, which is good for the sortie production rate. Currently, the flight envelope for the F-35 is very, very restricted, but there are signs of improvement there too". The F-35s at the base no longer need to fly with a chase aircraft and are operating in a normal two-ship element.
On 21 August 2012, J. Michael Gilmore wrote that he would not approve the Operational Test and Evaluation master plan until his concerns about electronic warfare testing, budget, and concurrency were addressed. On 7 September 2012, the Pentagon failed to approve a comprehensive operational testing plan for the F-35. Instead, on 10 September 2012, the USAF began an operational utility evaluation (OUE) of the F-35A entire system, including logistical support and maintenance, maintenance training, pilot training, and pilot execution. By 1 October, the OUE was reported as "proceeding smoothly". Pilots started on simulators, then began flying on 26 October. The OUE was completed on 14 November with the 24th flight, the four pilots involved having completed six flights each.
During the program's Low Rate Initial Production (LRIP) phase, the three U.S. military services worked together to develop tactics and procedures for the F-35 using flight simulators. Simulated flights tested the flight controls' effectiveness, helping to discover technical problems and refine aircraft design. Maintenance personnel discovered that they could often fix problems by rebooting the aircraft's software and onboard systems.
Air Force pilot training F-35A began in January 2013 at Eglin Air Force Base; the program could train 100 pilots and 2,100 maintainers at once.
On 23 June 2014, an F-35A engine caught fire during takeoff at Eglin. In response, the Pentagon's Joint Program Office halted training in all F-35 models the next day, and on 3 July, the F-35 fleet was formally grounded. The fleet was returned to flight on 15 July, but the engine inspection regimen canceled the aircraft's planned debut at the Farnborough 2014 Air Show.
Basing plans for future U.S. F-35s
On 9 December 2010, a media report stated that the "USMC will base 216 F-35Bs on the East Coast and 184 of them on the West Coast, documents showed". This report continued: "Cherry Point will get 128 jets to form eight squadrons; Beaufort will have three squadrons and a pilot training center using 88 aircraft; Miramar will form six operational squadrons with 96 jets and 88 F-35s will go to Yuma for five operational squadrons with an additional test and evaluation unit".
In February 2014, the U.S. Air Force announced that the first Air National Guard unit to fly the new F-35 Lightning II will be the 158th Fighter Wing of the Vermont Air National Guard based at the Burlington Air Guard Station. The 158th currently flies F-16 Fighting Falcons, which are nearing the end of their useful service lives. Burlington Air Guard Station is expected to receive 18 F-35As, replacing the 18 F-16 Fighting Falcons currently assigned. The F-35A is expected to arrive in 2020.
On 8 January 2015, the Royal Air Force base RAF Lakenheath in the UK was chosen as the first base in Europe to station two American F-35 squadrons, following an announcement by the Pentagon. 48 F-35s, making up 2 squadrons, will add to the 48th Fighter Wing's already existing F-15C and F-15E Strike Eagle jets.
On 22 May 2018, Israeli Air Force chief Amikam Norkin said that the Israeli Air Force had employed their F-35Is in two attacks on two battle fronts, the first time any F-35 was used in a combat operation by any country. The air force chief said the plane had been flown "all over the Middle East", and showed conference participants photos of an Israeli F-35I flying over Beirut in a daylight flight.
On 27 September 2018, a United States Marines Corps F-35B attacked a Taliban target in Afghanistan, the first U.S. combat employment. The F-35B took off from the amphibious assault ship USS Essex in the Arabian Sea.
Procurement and international participation
Participant nations: Primary customer: United States Level 1 partner: United Kingdom Level 2 partners: Italy and the Netherlands Level 3 partners: Australia, Canada, Denmark, and Norway Security Cooperative Participants: Israel and Singapore
While the United States is the primary customer and financial backer, along with the United Kingdom, Italy, the Netherlands, Canada, Turkey, Australia, Norway, and Denmark have agreed to contribute US$4.375 billion towards development costs. Total development costs are estimated at more than US$40 billion. The purchase of an estimated 2,400 aircraft is expected to cost an additional US$200 billion. The initial plan was that the nine major partner nations would acquire over 3,100 F-35s through 2035. Sales to partner nations are made through the Pentagon's Foreign Military Sales program.
There are three levels of international participation. The levels generally reflect financial stake in the program, the amount of technology transfer and subcontracts open for bid by national companies, and the order in which countries can obtain production aircraft. The United Kingdom is the sole "Level 1" partner, contributing about 10% of the planned development costs under the 1995 Memorandum of Understanding that brought the UK into the project. Level 2 partners are Italy and the Netherlands. Level 3 partners are Turkey, Canada, Australia, Norway, and Denmark. Israel and Singapore have joined as Security Cooperative Participants (SCP). In particular, there are signs that the Republic of Singapore Air Force (RSAF) is interested, as the force has indicated that it is seriously evaluating a potential purchase and the defense minister has indicated that an F-16 replacement will be announced soon. In February 2019, the Defense Minister of Singapore announced that they would be buying four F-35s with the option to acquire up to eight more.
Japan announced on 20 December 2011 its intent to purchase 42 F-35s with deliveries beginning in 2016 to replace the F-4 Phantom II; Japan seeks 38 F-35s, to be assembled domestically.
By 2012, many changes had occurred in the order book. Italy became the first country to announce a reduction of its overall fleet procurement, cutting its buy from 131 to 90 aircraft. Other nations reduced initial purchases or delayed orders while still intending to purchase the same final numbers. The U.S. canceled the initial purchase of 13 F-35s and postponed orders for another 179. The United Kingdom cut its initial order and delayed a decision on future orders. Australia decided to buy the Boeing F/A-18E/F Super Hornet as an interim measure. Turkey also cut its initial order of four aircraft to two, but confirmed plans to purchase 100 F-35As. Turkey will buy four F-35s to be delivered in 2015 and 2016, while the order may be increased from 100 to 120 aircraft. These changes resulted in increased procurement prices, and increased the likelihood of further cuts.
On 3 April 2012, the Auditor General of Canada Michael Ferguson published a report outlining problems with Canada's procurement of the jet, including misinformation over the final cost. According to the Auditor General, the government knowingly understated the final price of the 65 jets by $10 billion. Canada's Conservative government had stated it would not reduce its order, and anticipated a $75–80 million unit cost; the procurement was termed a "scandal" and "fiasco" by the media and faced a full review to determine any Canadian F-35 purchase. On 13 December 2012, in a scathing editorial published by CBC News, journalist Brian Stewart termed the F-35 project a "global wrecking ball" for its runaway costs and lack of affordability for many participating nations. The Canadian government ultimately decided not to proceed with sole-sourced purchase of the fighter and commenced a competition to choose a different aircraft.
In November 2014, the United Kingdom confirmed its first order for 14 F-35Bs to be delivered in 2016.
In June 2018, the U.S. Senate blocked the transfer of F-35 fighter jets to Turkey over concerns of secrecy.
In January 2019, Singapore officially announced its plan to buy a small number of F-35s for an evaluation of capabilities and suitability before deciding on more F-35s to fully replace its aging F-16 fleet.
In May 2019, Poland announced its plan to buy 32 F-35A fighters to replace Soviet-era jets used by the Polish Air Force. At a meeting between U.S. President Donald Trump and Polish President Andrzej Duda held in Washington D.C, an F-35B was flown over the South Lawn of the White House to demonstrate the aircraft's capabilities and commemorate the sale. In the beginning of October 2019 Reuters news agency reported that the United States Department of State approved the possible purchase of F-35 fighter jets by Poland.
Configuration of the three original F-35 variants. CTOL for conventional take-off and landing, STOVL for short take-off and vertical-landing, and CV for carrier variant
The F-35 is being built in three different main versions to suit various combat missions.
US Air Force F-35A maneuvers to refuel from a KC-135.
The F-35A is the conventional takeoff and landing (CTOL) variant intended for the U.S. Air Force and other air forces. It is the smallest, lightest F-35 version and is the only variant equipped with an internal cannon, the GAU-22/A. This 25 mm cannon is a development of the GAU-12 carried by the USMC's AV-8B Harrier II. It is designed for increased effectiveness against ground targets compared to the 20 mm M61 Vulcan cannon carried by other USAF fighters.
The F-35A is expected to match the F-16 in maneuverability and instantaneous high-g performance, and outperform it in stealth, payload, range on internal fuel, avionics, operational effectiveness, supportability, and survivability. It is expected to match an F-16 that is carrying the usual external fuel tank in acceleration performance.
The A variant is primarily intended to replace the USAF's F-16 Fighting Falcon. At one point it was also intended to replace the A-10 Thunderbolt II starting in 2028. The F-35A can be outfitted to receive fuel via either of the two main aerial refueling methods; this was a consideration in the Canadian procurement and a deciding factor for the Japanese purchase. On 18 December 2013, the Netherlands became the second partner country to operate the F-35A, when Maj. Laurens J.W. Vijge of the Royal Netherlands Air Force took off from Eglin Air Force Base.
The F-35As for the Royal Norwegian Air Force will have drag chute installed. Norway will be the first country to adopt the drag chute pod.
On 2 August 2016, the U.S. Air Force declared the F-35A basic combat ready. The 34th Fighter Squadron located at Hill Air Force Base, Utah, has at least 12 combat-ready jets capable of global deployment. The F-35A is scheduled to be fully combat ready in 2017 with its 3F software upgrade. Air Combat Command will initially deploy F-35A to Red Flag exercises and as a "theater security package" to Europe and the Asia-Pacific. It will probably not be fighting the Islamic State in the Middle East earlier than 2017.
On 13 July 2017, UK Minister of State For Defence Frederick Curzon confirmed that the UK will purchase a minimum 138 aircraft and a decision will shortly be forthcoming as whether there will be a 'mix' of F-35A and 'B' versions required for 'synergy' and 'inter-service operability' between the RAF and Royal Navy.
Video of a USMC F-35B conducting the first vertical landing on a flight deck aboard USS Wasp (LHD-1) on 3 October 2011
A British F-35B hovering at the Royal International Air Tattoo in 2016
The F-35B is the short takeoff and vertical landing (STOVL) variant of the aircraft. Similar in size to the A variant, the B sacrifices about a third of the A variant's fuel volume to accommodate the vertical flight system. Vertical takeoffs and landings are riskier because of threats such as foreign object damage. Whereas the F-35A is stressed to 9 g, the F-35B's stress goal is 7 g. As of 2014, the F-35B is limited to 4.5 g and 400 knots. The next software upgrade includes weapons, and allows 5.5 g and Mach 1.2, with a final target of 7 g and Mach 1.6. The first test flight of the F-35B was conducted on 11 June 2008. Another milestone, the first successful ski-jump launch, was carried out by BAE test pilot Peter Wilson on 24 June 2015.
Unlike other variants, the F-35B has no landing hook. The "STOVL/HOOK" control instead engages conversion between normal and vertical flight. Jet thrust is sent directly downwards during vertical flight. The variant's three-bearing swivel nozzle that directs the full thrust of the engine is moved by a "fueldraulic" actuator using pressurized fuel as the working fluid.
Although the Australian Canberra-class landing helicopter dock ships were not originally planned to operate fixed-wing aircraft, in May 2014, the Minister for Defence David Johnston stated in media interviews that the government was considering acquiring F-35B fighters for Canberras, and Prime Minister Tony Abbott instructed 2015 Defence White Paper planners to consider the option of embarking F-35B squadrons aboard the two ships. Supporters of the idea stated that providing fixed-wing support to amphibious operations would maximize aircraft capability, and the presence of a ski-jump ramp, inherited from the original design, meant that the vessels were better suited to STOVL operations than equivalent ships with flat flight decks. Opponents to the idea countered that embarking enough F-35Bs to be effective required abandoning the ships' amphibious capability and would make the pseudo-carriers more valuable targets, modifications would be required to make the flight deck capable of handling vertical-landing thrust and to increase fuel and ordnance capacity for sustained operations, and that the F-35B project itself has been the most expensive and most problematic of the Joint Strike Fighter variants. In July 2015, Australia ended consideration of buying the F-35B for its two largest assault ships, as the ship modifications were projected to cost more than AUS$5 billion (US$4.4 billion). The plan was opposed by the Royal Australian Air Force, as an F-35B order could have diminished the number of F-35As purchased.
In 2011, the Marina Militare was preparing Grottaglie Air Station for F-35B operations; they are to receive 22 aircraft between 2014 and 2021, with the aircraft carrier Cavour set to be modified to operate them by 2016.
The first RAF F-35 to arrive in the United Kingdom escorted by two USMC F-35Bs and a pair of RAF Typhoon FGR4s en route to the 2016 Royal International Air Tattoo.
The United Kingdom's Royal Air Force and Royal Navy plan to introduce the F-35B, known simply as the Lightning in British service, as a replacement for the Harrier GR9, which was retired in 2010, and Tornado GR4, which was retired in 2019. The F-35 is intended to be the United Kingdom's primary strike attack aircraft for the next three decades. One of the Royal Navy requirements for the F-35B design was a Shipborne Rolling and Vertical Landing (SRVL) mode to increase maximum landing weight to bring back unused ordnance by using wing lift during landing. In July 2013, Chief of the Air Staff, Air Chief Marshal Sir Stephen Dalton announced that No. 617 (The Dambusters) Squadron would be the first operational Royal Air Force squadron to receive the F-35. The second operational squadron will be the Fleet Air Arm's 809 Naval Air Squadron in April 2023. In June 2013, the Royal Air Force had received three aircraft of the 48 on order, all of which are based at Eglin Air Force Base. The F-35 will be based at Royal Air Force Marham and become operational in 2018. In June 2015, the F-35B undertook its first launches from a ski-jump, when one of the UK's aircraft took off using a ramp constructed at NAS Patuxent River. When required to operate from the sea, the Royal Air Force and Royal Navy will operate the F-35B from ships fitted with ski-jumps, as will the Italian Navy. The British version of the F-35B is not intended to receive the Brimstone 2 missile. On 5 July 2017, it was announced the second RAF squadron to be based in the UK would be No. 207 Squadron, which will reform on 1 July 2019 as the Lightning Operational Conversion Unit.
No. 617 Squadron was reformed on 18 April 2018 during a ceremony in Washington, D.C., becoming the first RAF front-line squadron to operate the Lightning. The Dambusters received their first four F-35Bs on 6 June, flying from MCAS Beaufort to RAF Marham. Receiving a further five Lightnings on 3 August, No. 617 Squadron and the F-35 fleet were declared 'combat ready' on 10 January 2019. No. 617 Squadron will undergo its first deployment to RAF Akrotiri, Cyprus, sometime in 2019 before embarking in HMS Queen Elizabeth in Autumn 2019.
A F-35B prepares for a vertical landing on USS America
The U.S. Marine Corps plans to purchase 340 F-35B and 80 F-35C models to replace current inventories of both the F/A-18 Hornet (A, B, C and D-models), and the AV-8B Harrier II, in the fighter and attack roles. The Marines plan to use the F-35B from "unimproved surfaces at austere bases" but with "special, high-temperature concrete designed to handle the heat". The USMC declared initial operational capability with about 50 F-35s running interim block 2B software on 31 July 2015. The USAF had considered replacing the A-10 with the F-35B, but will not do so because of the F-35B's inability to generate enough sorties.
On 6 January 2011, Gates said that the 2012 budget would call for a two-year pause in F-35B production during which the aircraft faced redesign, or cancellation if unsuccessful. In 2011, Lockheed Martin executive vice president Tom Burbage and former Pentagon director of operational testing Tom Christie stated that most program delays were due to the F-35B, which forced massive redesigns of other versions. Lockheed Martin Vice President Steve O’Bryan has said that most F-35B landings will be conventional to reduce stress on vertical lift components. These conventional mode takeoffs and landings cause an "unacceptable wear rate" to the aircraft's "poorly designed" tires. USMC Lt. Gen. Robert Schmidle has said that the vertical lift components would only be used "a small percentage of the time" to transfer the aircraft from carriers to land bases. On 3 October 2011, the F-35B began its initial sea-trials by performing a vertical landing on the deck of the amphibious assault ship USS Wasp, to continue in 2015. Probation status was reportedly ended by Defense Secretary Leon Panetta in January 2012 based on progress made. A heat-resistant anti-skid material called Thermion is being tested on Wasp, also useful against the V-22 exhaust.
Commandant of the U.S. Marine Corps, General James Amos has said that, in spite of increasing costs and schedule delays, there is no plan B to the F-35B. The F-35B is larger than the aircraft it replaces, which required USS America to be designed without well deck capabilities. In 2011, the USMC and USN signed an agreement by which the USMC will purchase 340 F-35B and 80 F-35C fighters, while the USN will purchase 260 F-35Cs. The five squadrons of USMC F-35Cs will be assigned to Navy carriers; F-35Bs will be used on amphibious ships and ashore.
The U.S. Marine Corps plans to disperse its F-35Bs among forward deployed bases to enhance survivability while remaining close to a battlespace, similar to RAF Harrier deployment late in the Cold War, which relied on the use of off-base locations that offered short runways, shelter, and concealment. Known as distributed STOVL operations (DSO), Marine F-35Bs would sustain operations from temporary bases in allied territory within the range of hostile ballistic and cruise missiles, but be moved between temporary locations inside the enemy's 24- to 48-hour targeting cycle. This strategy accounts for the F-35B's short range, the shortest of the three variants, with mobile forward arming and refueling points (M-Farps) accommodating KC-130 and MV-22 Osprey aircraft to rearm and refuel the jets, as well as littoral areas for sea links of mobile distribution sites on land. M-Farps could be based on small airfields, multi-lane roads, or damaged main bases, while F-35Bs would return to U.S. Navy ships, rear-area U.S. Air Force bases, or friendly carriers for scheduled maintenance; metal planking would be needed to protect unprepared roads from the F-35B's engine exhaust, which would be moved between sites by helicopters, and the Marines are studying lighter and more heat-resistant products.
Two F-35 variants in formation. From left: The F-35C (left) has a larger wing than two F-35Bs.
F-35C of VFA-101
Compared to the F-35A, the F-35C carrier variant features larger wings with foldable wingtip sections, larger wing and tail control surfaces for improved low-speed control, stronger landing gear for the stresses of carrier arrested landings, a twin-wheel nose gear, and a stronger tailhook for use with carrier arrestor cables. The larger wing area allows for decreased landing speed while increasing both range and payload.
The U.S. Navy intends to buy 260 F-35Cs to replace the F/A-18A, B, C, and D Hornets and complement the F/A-18E and F/A-18F Super Hornet fleet. The U.S. Marine Corps will also operate five squadrons of F-35Cs that will deploy aboard aircraft carriers and augment US Navy carrier air wings under the two services' long-standing Tactical Aviation Integration (TAI) initiative. On 27 June 2007, the F-35C completed its Air System Critical Design Review (CDR), allowing the production of the first two functional prototypes. The C variant was expected to be available beginning in 2014. The first F-35C was rolled out on 29 July 2009. The U.S. Marine Corps will also purchase 80 F-35Cs, enough for five squadrons, for use with navy carrier air wings in a joint service agreement signed on 14 March 2011. A recent 2014 document stated that the USMC will also have 4 squadrons of F-35Cs with 10 aircraft per squadron for the Marine Corps' contribution to U.S. Navy carrier air wings.
On 6 November 2010, the first F-35C arrived at Naval Air Station Patuxent River. In 2011, the F-35Cs were grounded for six days after a software bug was found that could have prevented the control surfaces from being used during flight. On 27 July 2011, the F-35C test aircraft CF-3 completed its first steam catapult launch during a test flight at Naval Air Engineering Station Lakehurst; the TC-13 Mod 2 test steam catapult, representative of current fleet technology, was used. In addition to catapult launches at varying power levels, a three-week test plan included dual-aircraft jet blast deflector testing and catapult launches using a degraded catapult configuration to measure the effects of steam ingestion on the aircraft.
On 13 August 2011, the F-35 successfully completed jet blast deflector (JBD) testing at Lakehurst. F-35C test aircraft CF-1 along with an F/A-18E tested a combined JBD cooling panel configuration. The tests measured temperature, pressure, sound level, velocity, and other environmental data; the JBD model will enable the operation of all carrier aircraft, including the F-35C. Further carrier suitability testing continued in preparation for initial ship trials in 2013. On 18 November 2011, the U.S. Navy used its new Electromagnetic Aircraft Launch System (EMALS) to launch an F-35C into the air for the first time.
The fighter's F135 engine exceeds the weight capacity of traditional underway replenishment systems and generates more heat than previous engines.
The stealthy skin requires new repair techniques; extensive skin damage will necessitate repairs at Lockheed's land-based facilities.
The adoption of lithium-ion batteries needing careful thermal management, and higher voltage systems than traditional fighters.
Storing of new weapons not previously employed on carrier aircraft.
Large quantities of classified data generated during missions shall require additional security.
In February 2014, Lockheed said the F-35C was on schedule for sea trials after the tailhook was redesigned. The new tailhook has a different shape to better catch arresting wires. Testing on land achieved 36 successful landings. Sea trials were scheduled for October 2014.
On 3 November 2014, an F-35C of VX-23, one of the Navy's flight test units, made its first landing on an aircraft carrier when it recovered aboard USS Nimitz; this started a two week deployment of a pair of aircraft for the initial at sea Development Testing I or DTI, the first of three at sea tests planned for the F-35C. The initial deployment was completed on November 14.
The U.S. Navy may use the F-35C as part of its UCLASS effort to operate a carrier-based unmanned aerial vehicle. Though it has been suggested that the UCLASS could carry air-to-air weapons, an unmanned aircraft lacks situational awareness and is more vulnerable to electronic countermeasures than manned aircraft, and autonomy for deploying lethal weapons is not under development. With the F-35C as the center of a network of naval systems, it could feed information to the UCLASS and order it to fire on a certain target. Large numbers of F-35Cs operating in contested environments can generate a clear picture of the battlespace, and share it with unmanned assets that can be directed to attack.
VFA-147 was selected to be the first operational squadron to transition to the F-35C in January 2018. Operational testing was to continue aboard USS Abraham Lincoln at the beginning of 2018. The carrier is the first to be modernized to operate the F-35C. Initial operating capability was announced on 28 February 2019, with the first deployment is scheduled aboard USS Carl Vinson in 2020. The F-35C will equip two of the four strike fighter squadrons in a carrier air wing. The US Navy declared initial operational capability for the F-35C on 28 February 2019.
Israeli Air Force F-35I Adir. It was operational with the IAF in 2018 and performed the first airstrikes with the aircraft type.
The F-35I Adir (Hebrew: אדיר, meaning "Awesome", or "Mighty One") is an F-35A with Israeli modifications. A senior Israel Air Force official said, "The aircraft will be designated F-35I, as there will be unique Israeli features installed in them". The U.S. initially refused to allow such modifications, then agreed to let Israel integrate its own electronic warfare systems, such as sensors and countermeasures. The main computer will have a plug-and-play feature to allow add-on Israeli electronics to be used; proposed systems include an external jamming pod, and new Israeli air-to-air missiles and guided bombs in the internal weapon bays.
Israel Aerospace Industries (IAI) has considered helping to develop a proposed two-seat F-35. An IAI executive said, "There is a known demand for two seats not only from Israel but from other air forces". IAI plans to produce conformal fuel tanks. A senior IAF official said that elements of the F-35's stealth may be overcome in 5 to 10 years, while the aircraft will be in service for 30 to 40 years, which is why Israel insisted on installing their own electronic warfare systems: "The basic F-35 design is OK. We can make do with adding integrated software". Israel is interested in purchasing up to 75 F-35s.
On 12 December 2016, Israel began receiving its first F-35Is of the 50 it plans to purchase for integration and testing. Israel is to be the second nation with an operational F-35 squadron, after the U.S. The first nine F-35s became operational (at initial operating capacity) in the Israeli Air Force in December 2017. On 22 May 2018, the commander of the Israel's Air Force, Major General Amikam Norkin, said that Israel became the first country to use the F-35 in combat. That combat was during clashes with Iran in Syria, but IDF officials also said that F-35 has been "flying all over the Middle East", and had also carried out airstrikes on another Middle Eastern battlefront.
The Canadian CF-35 is a proposed variant that would differ from the F-35A through the addition of a drogue parachute and may include an F-35B/C-style refueling probe. In 2012, it was revealed that the CF-35 would employ the same boom refueling system as the F-35A. One alternative proposal would have been the adoption of the F-35C for its probe refueling and lower landing speed; however, the Parliamentary Budget Officer's report cited the F-35C's limited performance and payload as being too high a price to pay. Following the 2015 Federal Election the Liberal Party, whose campaign had included a pledge to cancel the F-35 procurement, won a majority in the House of Commons. The new government stated it would run a competition for an aircraft to replace the existing CF-18 Hornet.
Dutch F-35A in July 2013
Royal Danish Air Force – 27 planned
Royal Norwegian Air Force – 7 operational and used for training of Norwegian pilots in the US, 9 delivered to Norway for testing and integration, with 36 additional planned with a total of 52 planned Ørland Main Air Station, Trøndelag 331 Skvadron (planned) 332 Skvadron 338 Skvadron (planned)
Turkish Air Force – 4 delivered to Luke Air Force Base. 30 F-35s were ordered, of up to 120 total planned. Future purchases have been banned by the United States, with current contracts canceled by early 2020. Intended Turkish squadrons were: 112th Squadron "Devil" 171st Squadron "Corsair" 172nd Squadron "Hawk"
United States Air Force – 1,763 planned 33d Fighter Wing AETC – Eglin AFB, Florida 58th Fighter Squadron 53d Wing, ACC – Eglin AFB, Florida 31st Test and Evaluation Squadron – Edwards AFB, California (53d Test and Evaluation Group) 422d Test and Evaluation Squadron – Nellis AFB, Nevada (53d Test and Evaluation Group) 56th Fighter Wing AETC – Luke AFB, Arizona 61st Fighter Squadron 62d Fighter Squadron 63d Fighter Squadron 308th Fighter Squadron 57th Wing ACC – Nellis AFB, Nevada 6th Weapons Squadron 158th Fighter Wing ANG – Burlington ANGB, Vermont 134th Fighter Squadron 388th Fighter Wing ACC – Hill AFB, Utah 4th Fighter Squadron 34th Fighter Squadron 421st Fighter Squadron 412th Test Wing AMC – Edwards AFB, California 461st Flight Test Squadron 419th Fighter Wing AFRC – Hill AFB, Utah 466th Fighter Squadron
The first Italian F-35B
First four RAF F-35Bs on a delivery flight to RAF Marham, June 2018
A US Marine Corps F35B aboard USS Wasp
Japan Maritime Self-Defense Force - 42 planned
Republic of Korea Navy - unspecified number planned
18 received, with 15 in the UK and the rest in the US, where they are used for testing and training. 42 (24 FOC fighters and 18 training aircraft) to be fast-tracked by 2023; 138 F-35 total planned, first 48 aircraft will be F-35B Declared combat-ready in January 2019.
Royal Air Force Eglin Air Force Base, Florida, US No. 17 Test and Evaluation Squadron – 3 operated for testing RAF Marham, Norfolk, UK No. 207 Squadron (Operational Conversion Unit) – 6 delivered No. 617 (The Dambusters) Squadron – 9 delivered Unspecified squadron
US Navy F-35C takes off from Eglin AFB
United States Marine Corps – 80 planned VFA-101 – Eglin AFB, Florida (Navy squadron, but trains both Navy and Marine F-35C pilots, and operates Navy and Marine F-35Cs maintained by both sailors and Marines. This is the same arrangement as other aircraft common to the Navy and Marine Corps.) VMFA-314 - MCAS Miramar, California
United States Navy – 260 planned VX-9 – Edwards AFB, California VX-23 – NAS Patuxent River, Maryland VFA-101 – Eglin AFB, Florida - deactivated 23 May 2019. VFA-125 – NAS Lemoore, California VFA-147 - NAS Lemoore, California
Accidents and notable incidents
On 23 June 2014, an F-35A's engine caught fire just before a training flight at Eglin Air Force Base. The pilot escaped unharmed. Engine parts from the burned aircraft were discovered on the runway, indicating a substantial engine failure. The accident caused all training to be halted on 25 June, and all flights halted on 3 July. The fleet was returned to flight on 15 July with restrictions in the flight envelope. Preliminary findings suggested that excessive rubbing of the engine fan blades created increased stress and wear that lead to the catastrophic failure of the fan. In early June 2015, the USAF Air Education and Training Command (AETC) issued its official report, which blamed the failure on the third stage rotor of the engine's fan module. The report stated that "pieces of the failed rotor arm cut through the engine's fan case" and eventually out "through the aircraft's upper fuselage". Pratt & Whitney, the engine manufacturer, addressed this by applying an extended "rub-in" to increase the gap between the second stator and the third rotor integral arm seal. It also altered the design to pre-trench the stator. Both were to be completed by early 2016. The damage cost an estimated US$50 million. All aircraft resumed operations within 25 days of the mishap.
The first F-35 crash occurred on 28 September 2018, when a USMC F-35B crashed near Marine Corps Air Station Beaufort, South Carolina, after the pilot ejected safely. All F-35s were grounded pending a fleet-wide inspection of potentially faulty engine tubes. The next day, the U.S. Air Force and the U.S. Navy announced that some of their F-35s were flying again. An Air Force spokeswoman said that the "majority of the Air Force's F-35As have been inspected and returned to flying status" while "some still require additional maintenance."
On 9 April 2019, a Japan Air Self-Defense Force F-35A attached to Misawa Air Base disappeared from radar during a training mission over the Pacific Ocean, when about 84 miles (135 km) east of the Aomori Prefecture. The aircraft was confirmed to have crashed after debris from it was found on the water. The pilot's remains were recovered in early June. The pilot, 41-year old Maj. Akinori Hosomi, was on a "routine" air combat training mission with three other F-35s. The Major radioed to the other three pilots that he was aborting the drill shortly before disappearing. Both the US and the Japanese Navy sent ships and aircraft to search for the missing aircraft and pilot. In response to the incident, Japan grounded all its 12 F-35As but stated it was "still committed" to purchasing 105 F-35As and 42 F-35Bs. There was speculation that China or Russia might attempt to salvage the crashed jet, but the Japanese Defense Ministry announced there had been no "reported activities" from either country. Japan's defense minister Takeshi Iwaya stated that the crash was likely caused by the "spatial disorientation" of its pilot. It was reported that the jet did not send a distress signal during the crash nor did the pilot mention any problem with the aircraft during communication. In addition, since the training was not a low-level flight, Maj. Hosomi could have had time to react given his experience level.
In April 2015, the General Accountability Office reported "61 violations of quality management rules and policies" during an inspection of Pratt & Whitney’s work on the F-35 fighter jet engine. The agency warned that the problems could lead to "further cost increases" and "schedule delays" on the program.  Pratt and the Pentagon’s F-35 program office responded that they had taken "aggressive steps" to "address the [GAO] findings." Pratt said it had "implemented plans to correct 60 percent of the issues raised" and would complete all but one by July 2015, while the remaining issue would be addressed by year-end.
In late 2017, GAO, as Bloomberg reported, found that the time needed to repair a part in the F-35 averaged 172 days, which was "twice the program’s objective," adding that those shortages are “degrading readiness” since the fighter jets were "unable to fly about 22 percent of the time” for lack of needed parts. The Pentagon responded that the program's cost had been "brought under control."
In a June 2018 report to the U.S. Congress, the General Accountability Office, recommended that "Congress should consider...that no funds shall be [made] available...for F35 Block 4 until [the Department of Defense] provides a sound business case for the effort." GAO also recommended to the DoD that "all critical deficiencies" in the program should be resolved "before its full-rate production decision."
In an article in the June 2019 issue of Harper's, investigative journalist Andrew Cockburn reported that out of the six F-35s the Marine Air Force deployed in the Middle East, the planes, "over several months, only managed to fly, on average, one combat sortie per plane every three days." Additionally, the F-35 initially carried a radar whose frequent freezing required the pilot to regularly switch it on and off, a problem that was "eventually corrected," while the Air Force version featured an "unacceptably inaccurate" gun on which the Air Force stated is "working."
In June 2019, questions were raised about the integrity of the F-35 supply chain when it was reported that a UK subsidiary of a company in the People's Republic of China, Shenzhen Fastprint, manufactures certain circuit board components for the fighter jet. The UK Ministry of Defence denied any risks.
Environmental issues were also cited, such as the F-35 being "at least four times noisier than the F-16s" it is replacing. The article claimed the aircraft belongs in America's "bulging arsenal of weapons systems incapable of performing as advertised and bought at extraordinary cost," the F-35 costing, as Cockburn claimed, almost six times more than the F-16 it is replacing, while the whole F-35 program would be, at a projected total cost of $406 billion, the "most expensive weapons program in history". As reported in the press, the F-35 Joint Strike fighter program is now projected to cost throughout its lifetime $1.5 trillion, or "roughly what [the U.S.] spent on the entire Iraq War."
The first of 15 pre-production F-35s
F-35B cutaway with LiftFan
Data from Lockheed Martin : F-35A specifications, Lockheed Martin : F-35B Short Takeoff/Vertical Landing Variant, Lockheed Martin : F-35C Carrier borne variant, Lockheed Martin : F-35 weaponry, Lockheed Martin : F-35 Program Status, F-35 Program brief F-35 JSF Statistics
Length: 50 ft 6 in (15.39 m)
Wingspan: 35 ft (11 m)
Height: 14 ft 2.5 in (4.331 m)
Wing area: 460 sq ft (43 m2)
Empty weight: 28,999 lb (13,154 kg)
Gross weight: 49,441 lb (22,426 kg)
Max takeoff weight: 70,000 lb (31,751 kg)
Fuel capacity: 18,498 lb (8,391 kg) internal fuel
Powerplant: 1 × Pratt & Whitney F135 afterburning turbofan, 28,000 lbf (120 kN) thrust dry, 43,000 lbf (190 kN) with afterburner
- 760 nmi (870 mi; 1,410 km) - Combat radius (interdiction mission on internal fuel, for internal air to air configuration)
Service ceiling: 50,000 ft (15,000 m) +
g limits: +9g
Wing loading: 107.5 lb/sq ft (525 kg/m2) at Gross weight
Thrust/weight: 0.87 with full internal fuel
- 1.07 with 50% internal fuel
Hardpoints: 6 × external pylons on wings with a capacity of 15,000 lb (6,800 kg) and two internal bays with a capacity of up to 5,700 lb (2,590 kg); total weapons payload is 18,000 lb (8,100 kg),with provisions to carry combinations of: Missiles: Air-to-air missiles: 14× AIM-120 AMRAAM 2× AIM-9X Sidewinder AIM-132 ASRAAM MBDA Meteor (pending further funding) Air-to-surface missiles: AGM-88 AARGM AGM-158 JASSM SPEAR 3 Joint Air-to-Ground Missile (JAGM) Joint Strike Missile (JSM, planned) SOM Anti-ship missiles: Long Range Anti-Ship Missile (LRASM) Bombs: Mark 84 or Mark 83 or Mark 82 GP bombs Mk.20 Rockeye II cluster bomb Mk 77 incendiary bombs Wind Corrected Munitions Dispenser (WCMD) capable Paveway series laser-guided bombs Small Diameter Bomb (SDB) Joint Direct Attack Munition (JDAM) series AGM-154 JSOW B61 mod 12 nuclear bomb
Northrop Grumman Electronic Systems AN/APG-81 AESA radar
Lockheed Martin AAQ-40 E/O Targeting System (EOTS)
Northrop Grumman Electronic Systems AN/AAQ-37 Distributed Aperture System (DAS) missile warning system
BAE Systems AN/ASQ-239 (Barracuda) electronic warfare system
Northrop Grumman AN/ASQ-242 CNI system, which includes Harris Corporation Multifunction Advanced Data Link (MADL) communication system Link 16 data link SINCGARS An IFF interrogator and transponder HAVE QUICK AM, VHF, UHF AM, and UHF FM Radio GUARD survival radio A radar altimeter An instrument landing system A TACAN system Instrument carrier landing system A JPALS TADIL-J JVMF/VMF
|Length||50.5 ft (15.4 m)||50.5 ft (15.4 m)||50.8 ft (15.5 m)|
|Wingspan||35 ft (10.7 m)||35 ft (10.7 m)||43 ft (13.1 m)|
|Wing Area||460 ft² (42.7 m²)||460 ft² (42.7 m²)||620 ft² (57.6 m²)|
|Empty weight||28,999 lb (13,154 kg)||32,472 lb (14,729 kg)||34,581 lb (15,686 kg)|
|Internal fuel||18,498 lb (8,391 kg)||13,326 lb (6,045 kg)||19,624 lb (8,901 kg)|
|Max takeoff weight||70,000 lb (31,800 kg) class||60,000 lb (27,200 kg) class||70,000 lb (31,800 kg) class|
1,200 nmi (2,200 km)
900 nmi (1,700 km)
1,200 nmi (2,200 km)
|Combat radius on|
|669 nmi (1,239 km)||505 nmi (935 km)||670 nmi (1,241 km)|
• full fuel:
• 50% fuel:
Appearances in media
Lockheed Martin X-35 – Concept demonstrator aircraft for Joint Strike Fighter program
Lockheed Martin F-22 Raptor – American fifth-generation air superiority fighter
Aircraft of comparable role, configuration and era
Chengdu J-20 – Chinese fifth-generation fighter
Shenyang FC-31 – Fifth-generation jet fighter currently under development by Shenyang Aircraft Corporation
Sukhoi Su-57 – Russian fifth-generation fighter aircraft
List of fighter aircraft
List of active United States military aircraft – Wikimedia list article
List of megaprojects, Aerospace
