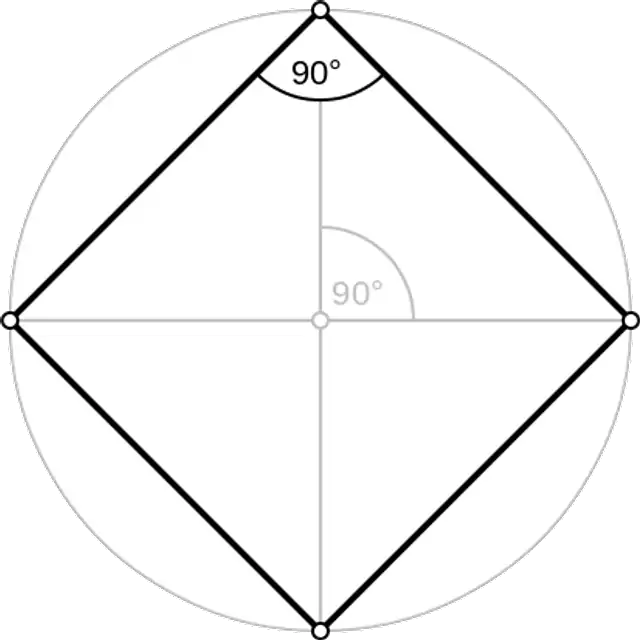

Square
Square
Square | |
---|---|
Type | Regular polygon |
Edgesandvertices | 4 |
Schläfli symbol | {4} |
Coxeter diagram | |
Symmetry group | Dihedral(D), order 2×4 |
Internal angle(degrees) | 90° |
Dual polygon | Self |
Properties | Convex,cyclic,equilateral,isogonal,isotoxal |
Square | |
---|---|
Type | Regular polygon |
Edgesandvertices | 4 |
Schläfli symbol | {4} |
Coxeter diagram | |
Symmetry group | Dihedral(D), order 2×4 |
Internal angle(degrees) | 90° |
Dual polygon | Self |
Properties | Convex,cyclic,equilateral,isogonal,isotoxal |
Characterizations
A convex quadrilateral is a square if and only if it is any one of the following:[2][3]
a rectangle with two adjacent equal sides
a rhombus with a right vertex angle
a rhombus with all angles equal
a parallelogram with one right vertex angle and two adjacent equal sides
a quadrilateral with four equal sides and four right angles
a quadrilateral where the diagonals are equal and are the perpendicular bisectors of each other, i.e. a rhombus with equal diagonals
a convex quadrilateral with successive sides a, b, c, d whose area is [4]
Properties
A square is a special case of a rhombus (equal sides, opposite equal angles), a kite (two pairs of adjacent equal sides), a trapezoid (one pair of opposite sides parallel), a parallelogram (all opposite sides parallel), a quadrilateral or tetragon (four-sided polygon), and a rectangle (opposite sides equal, right-angles) and therefore has all the properties of all these shapes, namely:[5]
The diagonals of a square bisect each other and meet at 90°
The diagonals of a square bisect its angles.
Opposite sides of a square are both parallel and equal in length.
All four angles of a square are equal.
(Each is 360°/4 = 90°, so every angle of a square is a right angle.)
All four sides of a square are equal.
The diagonals of a square are equal.
The square is the n=2 case of the families of n-hypercubes and n-orthoplexes.
A square has Schläfli symbol {4}. A truncated square, t{4}, is an octagon, {8}. An alternated square, h{4}, is a digon, {2}.
Perimeter and area
The area of a square is the product of the length of its sides.
and the area A is
In classical times, the second power was described in terms of the area of a square, as in the above formula.
This led to the use of the term square
The area can also be calculated using the diagonal d according to
In terms of the circumradius R, the area of a square is
In terms of the inradius r, the area of the square is
Because it is a regular polygon, a square is the quadrilateral of least perimeter enclosing a given area. Dually, a square is the quadrilateral containing the largest area within a given perimeter.[6] Indeed, if A and P are the area and perimeter enclosed by a quadrilateral, then the following isoperimetric inequality holds:
with equality if and only if the quadrilateral is a square.
Other facts
The diagonals of a square are (about 1.414) times the length of a side of the square.
This value, known as the square root of 2 or Pythagoras' constant, was the first number proven to be irrational.
A square can also be defined as a parallelogram with equal diagonals that bisect the angles.
If a figure is both a rectangle (right angles) and a rhombus (equal edge lengths), then it is a square.
If a circle is circumscribed around a square, the area of the circle is (about 1.5708) times the area of the square.
If a circle is inscribed in the square, the area of the circle is (about 0.7854) times the area of the square.
A square has a larger area than any other quadrilateral with the same perimeter.[7]
A square tiling is one of three regular tilings of the plane (the others are the equilateral triangle and the regular hexagon).
The square is in two families of polytopes in two dimensions: hypercube and the cross-polytope. The Schläfli symbol for the square is {4}.
The square is a highly symmetric object.
There are four lines of reflectional symmetry and it has rotational symmetry of order 4 (through 90°, 180° and 270°). Its symmetry group is the dihedral group D4.
If the inscribed circle of a square ABCD has tangency points E on AB, F on BC, G on CD, and H on DA, then for any point P on the inscribed circle,[8]
If is the distance from an arbitrary point in the plane to the i-th vertex of a square and is the circumradius of the square, then[9]
Coordinates and equations
plotted on Cartesian coordinates
The coordinates for the vertices of a square with vertical and horizontal sides, centered at the origin and with side length 2 are (±1, ±1), while the interior of this square consists of all points (xi, yi) with −1 < x**i< 1 and −1 <* y**i* < 1. The equation
Alternatively the equation
can also be used to describe the boundary of a square with center coordinates (a, b) and a horizontal or vertical radius of r.
Construction
Square at a given circumcircle
Square at a given diagonal
Square at a given side length, right angle by using Thales' theorem
The following animations show how to construct a square using a compass and straightedge. This is possible as 4 = 22, a power of two.
Symmetry
The dihedral symmetries are divided depending on whether they pass through vertices (d for diagonal) or edges (p for perpendiculars) Cyclic symmetries in the middle column are labeled as g for their central gyration orders. Full symmetry of the square is r8 and no symmetry is labeled a1.
The square has Dih4 symmetry, order 8. There are 2 dihedral subgroups: Dih2, Dih1, and 3 cyclic subgroups: Z4, Z2, and Z1.
A square is a special case of many lower symmetry quadrilaterals:
a rectangle with two adjacent equal sides
a quadrilateral with four equal sides and four right angles
a parallelogram with one right angle and two adjacent equal sides
a rhombus with a right angle
a rhombus with all angles equal
a rhombus with equal diagonals
These 6 symmetries express 8 distinct symmetries on a square.
John Conway labels these by a letter and group order.[10]
Each subgroup symmetry allows one or more degrees of freedom for irregular quadrilaterals. r8 is full symmetry of the square, and a1 is no symmetry. d4, is the symmetry of a rectangle and p4, is the symmetry of a rhombus. These two forms are duals of each other and have half the symmetry order of the square. d2 is the symmetry of an isosceles trapezoid, and p2 is the symmetry of a kite. g2 defines the geometry of a parallelogram.
Only the g4 subgroup has no degrees of freedom but can seen as a square with directed edges.
Squares inscribed in triangles
Every acute triangle has three inscribed squares (squares in its interior such that all four of a square's vertices lie on a side of the triangle, so two of them lie on the same side and hence one side of the square coincides with part of a side of the triangle). In a right triangle two of the squares coincide and have a vertex at the triangle's right angle, so a right triangle has only two distinct inscribed squares. An obtuse triangle has only one inscribed square, with a side coinciding with part of the triangle's longest side.
The fraction of the triangle's area that is filled by the square is no more than 1/2.
Squaring the circle
In 1882, the task was proven to be impossible, as a consequence of the Lindemann–Weierstrass theorem which proves that pi (π) is a transcendental number, rather than an algebraic irrational number; that is, it is not the root of any polynomial with rational coefficients.
Non-Euclidean geometry
In non-Euclidean geometry, squares are more generally polygons with 4 equal sides and equal angles.
In spherical geometry, a square is a polygon whose edges are great circle arcs of equal distance, which meet at equal angles. Unlike the square of plane geometry, the angles of such a square are larger than a right angle. Larger spherical squares have larger angles.
In hyperbolic geometry, squares with right angles do not exist. Rather, squares in hyperbolic geometry have angles of less than right angles. Larger hyperbolic squares have smaller angles.
Examples:
Crossed square
Crossed-square
A crossed square is a faceting of the square, a self-intersecting polygon created by removing two opposite edges of a square and reconnecting by its two diagonals. It has half the symmetry of the square, Dih2, order 4. It has the same vertex arrangement as the square, and is vertex-transitive. It appears as two 45-45-90 triangle with a common vertex, but the geometric intersection is not considered a vertex.
A crossed square is sometimes likened to a bow tie or butterfly. the crossed rectangle is related, as a faceting of the rectangle, both special cases of crossed quadrilaterals.[11]
The interior of a crossed square can have a polygon density of ±1 in each triangle, dependent upon the winding orientation as clockwise or counterclockwise.
A square and a crossed square have the following properties in common:
Opposite sides are equal in length.
The two diagonals are equal in length.
It has two lines of reflectional symmetry and rotational symmetry of order 2 (through 180°).
It exists in the vertex figure of a uniform star polyhedra, the tetrahemihexahedron.
Graphs
3-simplex (3D)
The K4 complete graph is often drawn as a square with all 6 possible edges connected, hence appearing as a square with both diagonals drawn. This graph also represents an orthographic projection of the 4 vertices and 6 edges of the regular 3-simplex (tetrahedron).
