Circle |
---|

A **circle** is a simple closed shape. It is the set of all points in a plane that are at a given distance from a given point, the centre; equivalently it is the curve traced out by a point that moves in a plane so that its distance from a given point is constant. The distance between any of the points and the centre is called the radius. This article is about circles in Euclidean geometry, and, in particular, the Euclidean plane, except where otherwise noted.

A circle is a simple closed curve that divides the plane into two regions: an interior and an exterior. In everyday use, the term "circle" may be used interchangeably to refer to either the boundary of the figure, or to the whole figure including its interior; in strict technical usage, the circle is only the boundary and the whole figure is called a disc.

A circle may also be defined as a special kind of ellipse in which the two foci are coincident and the eccentricity is 0, or the two-dimensional shape enclosing the most area per unit Perimeter squared, using calculus of variations.

Circle |
---|

Euclid's definition

A circle is a plane figure bounded by one line, and such that all right lines drawn from a certain point within it to the bounding line, are equal.

The bounding line is called its circumference and the point, its centre.— Euclid, Elements, Book I

^{[1]}

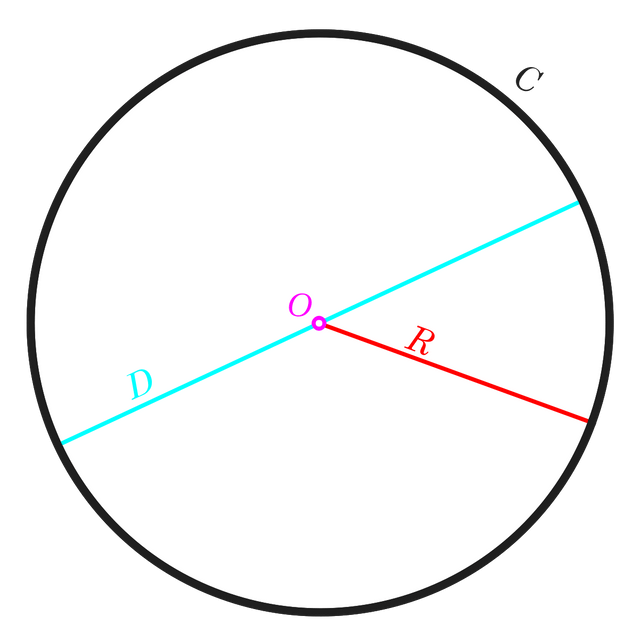

Terminology

Annulus: a ring-shaped object, the region bounded by two concentric circles.

Arc: any connected part of a circle. Specifying two end points of an arc and a center allows for two arcs that together make up a full circle.

Centre: the point equidistant from all points on the circle.

Chord: a line segment whose endpoints lie on the circle, thus dividing a circle in two sements.

Circumference: the length of one circuit along the circle, or the distance around the circle.

Diameter: a line segment whose endpoints lie on the circle and that passes through the centre; or the length of such a line segment. This is the largest distance between any two points on the circle. It is a special case of a chord, namely the longest chord for a given circle, and its length is twice the length of a radius.

Disc: the region of the plane bounded by a circle.

Lens: the region common to (the intersection of) two overlapping discs.

Passant: a coplanar straight line that has no point in common with the circle.

Radius: a line segment joining the centre of a circle with any single point on the circle itself; or the length of such a segment, which is half (the length of) a diameter.

Sector: a region bounded by two radii of equal length with a common center and either of the two possible arcs, determined by this center and the endpoints of the radii.

Segment: a region bounded by a chord and one of the arcs connecting the chord's endpoints. The length of the chord imposes a lower boundary on the diameter of possible arcs. Sometimes the term

*segment*is used only for regions not containing the center of the circle to which their arc belongs to.Secant: an extended chord, a coplanar straight line, intersecting a circle in two points.

Semicircle: one of the two possible arcs determined by the endpoints of a diameter, taking its midpoint as center. In non-technical common usage it may mean the interior of the two dimensional region bounded by a diameter and one of its arcs, that is technically called a half-disc. A half-disc is a special case of a segment, namely the largest one.

Tangent: a coplanar straight line that has one single point in common with a circle ("touches the circle at this point").

All of the specified regions may be considered as *open*, that is, not containing their boundaries, or as *closed*, including their respective boundaries.

History

The compass in this 13th-century manuscript is a symbol of God's act of Creation. Notice also the circular shape of the halo.

Circular piece of silk with Mongol images

Circles in an old Arabic astronomical drawing.

Tughrul Tower from inside

The word *circle* derives from the Greek κίρκος/κύκλος (*kirkos/kuklos*), itself a metathesis of the Homeric Greek κρίκος (*krikos*), meaning "hoop" or "ring".^{[2]} The origins of the words circus and circuit

The circle has been known since before the beginning of recorded history.

Natural circles would have been observed, such as the Moon, Sun, and a short plant stalk blowing in the wind on sand, which forms a circle shape in the sand.

The circle is the basis for the wheel, which, with related inventions such as gears, makes much of modern machinery possible. In mathematics, the study of the circle has helped inspire the development of geometry, astronomy and calculus.

Early science, particularly geometry and astrology and astronomy, was connected to the divine for most medieval scholars, and many believed that there was something intrinsically "divine" or "perfect" that could be found in circles.^{[3]}^{[4]}

Some highlights in the history of the circle are:

1700 BCE – The Rhind papyrus gives a method to find the area of a circular field. The result corresponds to 256/81 (3.16049...) as an approximate value of π.

^{[5]}

300 BCE – Book 3 of Euclid's

*Elements*In Plato's Seventh Letter there is a detailed definition and explanation of the circle. Plato explains the perfect circle, and how it is different from any drawing, words, definition or explanation.

1880 CE – Lindemann proves that π is transcendental, effectively settling the millennia-old problem of squaring the circle.

^{[6]}

Analytic results

Length of circumference

The ratio of a circle's circumference to its diameter is π (pi), an irrational constant approximately equal to 3.141592654. Thus the length of the circumference *C* is related to the radius *r* and diameter *d* by:

Area enclosed

Area enclosed by a circle = π × area of the shaded square

As proved by Archimedes, in his Measurement of a Circle, the area enclosed by a circle is equal to that of a triangle whose base has the length of the circle's circumference and whose height equals the circle's radius,^{[7]} which comes to π multiplied by the radius squared:

Equivalently, denoting diameter by *d*,

that is, approximately 79% of the circumscribing square (whose side is of length *d*).

The circle is the plane curve enclosing the maximum area for a given arc length.

This relates the circle to a problem in the calculus of variations, namely the isoperimetric inequality.

Equations

Cartesian coordinates

Circle of radius *r* = 1, centre (*a*, *b*) = (1.2, −0.5)

**Equation of a circle**
In an *x*–*y a*,* b*) and radius* r*is the set of all points ( x,* y*) such that

This equation, known as the Equation of the Circle, follows from the Pythagorean theorem applied to any point on the circle: as shown in the adjacent diagram, the radius is the hypotenuse of a right-angled triangle whose other sides are of length |*x*−* a*| and |*y*−* b*|. If the circle is centred at the origin (0, 0), then the equation simplifies to

**Parametric form**
The equation can be written in parametric form using the trigonometric functions sine and cosine as

where *t* is a parametric variable in the range 0 to 2π, interpreted geometrically as the angle that the ray from (*a*, *b*) to (*x*, *y*) makes with the positive *x*-axis.

An alternative parametrisation of the circle is:

In this parameterisation, the ratio of *t* to *r* can be interpreted geometrically as the stereographic projection of the line passing through the centre parallel to the *x*-axis (see Tangent half-angle substitution). However, this parameterisation works only if *t* is made to range not only through all reals but also to a point at infinity; otherwise, the bottom-most point of the circle would be omitted.

**Homogeneous form**
In homogeneous coordinates, each conic section with the equation of a circle has the form

It can be proven that a conic section is a circle exactly when it contains (when extended to the complex projective plane) the points *I* (1: *i*: 0) and *J* (1: −*i*: 0). These points are called the circular points at infinity.

Polar coordinates

In polar coordinates, the equation of a circle is:

In the general case, the equation can be solved for *r*, giving

Note that without the ± sign, the equation would in some cases describe only half a circle.

Complex plane

In the complex plane, a circle with a centre at *c* and radius *r* has the equation:

- .

In parametric form, this can be written:

- .

The slightly generalised equation

Tangent lines

The tangent line through a point *P* on the circle is perpendicular to the diameter passing through *P*. If P = (*x1, y* and the circle has centre (*a*, *b*) and radius *r*, then the tangent line is perpendicular to the line from (*a*, *b*) to (*x1, y*, so it has the form (*x*1 − *a) + ( y1 –* b*)

*y*=* c*. Evaluating at (

*x*1,

*y*1) determines the value of* c* and the result is that the equation of the tangent is

or

If *y*1 ≠ *b* then the slope of this line is

This can also be found using implicit differentiation.

When the centre of the circle is at the origin then the equation of the tangent line becomes

and its slope is

Properties

The circle is the shape with the largest area for a given length of perimeter.

(See Isoperimetric inequality.)

The circle is a highly symmetric shape: every line through the centre forms a line of reflection symmetry and it has rotational symmetry around the centre for every angle. Its symmetry group is the orthogonal group O(2,*Rcircle group T.

All circles are similar. A circle's circumference and radius are proportional. The area enclosed and the square of its radius are proportional. The constants of proportionality are 2π and π, respectively.

The circle that is centred at the origin with radius 1 is called the unit circle. Thought of as a great circle of the unit sphere, it becomes the Riemannian circle.

Through any three points, not all on the same line, there lies a unique circle.

In Cartesian coordinates, it is possible to give explicit formulae for the coordinates of the centre of the circle and the radius in terms of the coordinates of the three given points. See circumcircle.

Chord

Chords are equidistant from the centre of a circle if and only if they are equal in length.

The perpendicular bisector of a chord passes through the centre of a circle; equivalent statements stemming from the uniqueness of the perpendicular bisector are: A perpendicular line from the centre of a circle bisects the chord.

The line segment through the centre bisecting a chord is perpendicular to the chord.

If a central angle and an inscribed angle of a circle are subtended by the same chord and on the same side of the chord, then the central angle is twice the inscribed angle.

If two angles are inscribed on the same chord and on the same side of the chord, then they are equal.

If two angles are inscribed on the same chord and on opposite sides of the chord, then they are supplementary. For a cyclic quadrilateral, the exterior angle is equal to the interior opposite angle.

An inscribed angle subtended by a diameter is a right angle (see Thales' theorem).

The diameter is the longest chord of the circle.

Among all the circles with a chord AB in common, the circle with minimal radius is the one with diameter AB.

If the intersection of any two chords divides one chord into lengths

*a*and*b*and divides the other chord into lengths*c*and*d*, then*ab*=*cd*.If the intersection of any two perpendicular chords divides one chord into lengths

*a*and*b*and divides the other chord into lengths*c*and*d*, then*a*2 +*b*2 +*c*2 +*d*2 equals the square of the diameter.^{[8]}The sum of the squared lengths of any two chords intersecting at right angles at a given point is the same as that of any other two perpendicular chords intersecting at the same point, and is given by 8

*r*2 – 4*p*2 (where*r*is the circle's radius and*p*is the distance from the centre point to the point of intersection).^{[9]}The distance from a point on the circle to a given chord times the diameter of the circle equals the product of the distances from the point to the ends of the chord.

^{[10]}

Tangent

A line drawn perpendicular to a radius through the end point of the radius lying on the circle is a tangent to the circle.

A line drawn perpendicular to a tangent through the point of contact with a circle passes through the centre of the circle.

Two tangents can always be drawn to a circle from any point outside the circle, and these tangents are equal in length.

If a tangent at

*A*and a tangent at*B*intersect at the exterior point*P*, then denoting the centre as*O*, the angles ∠*BOA*and ∠*BPA*are supplementary.If

*AD*is tangent to the circle at*A*and if*AQ*is a chord of the circle, then ∠*DAQ*= 1/2arc(*AQ*).

Theorems

Secant-secant theorem

The chord theorem states that if two chords,

*CD*and*EB*, intersect at*A*, then*AC*×*AD*=*AB*×*AE*.If two secants,

*AE*and*AD*, also cut the circle at*B*and*C*respectively, then*AC*×*AD*=*AB*×*AE*. (Corollary of the chord theorem.)A tangent can be considered a limiting case of a secant whose ends are coincident.

If a tangent from an external point

*A*meets the circle at*F*and a secant from the external point*A*meets the circle at*C*and*D*respectively, then*AF*2 =*AC*×*AD*. (Tangent-secant theorem.)The angle between a chord and the tangent at one of its endpoints is equal to one half the angle subtended at the centre of the circle, on the opposite side of the chord (Tangent Chord Angle).

If the angle subtended by the chord at the centre is 90 degrees then

*ℓ*=*r*√2, where*ℓ*is the length of the chord and*r*is the radius of the circle.If two secants are inscribed in the circle as shown at right, then the measurement of angle

*A*is equal to one half the difference of the measurements of the enclosed arcs ( and ). That is, where*O*is the centre of the circle. This is the secant-secant theorem.

Inscribed angles

Inscribed angle theorem

An inscribed angle (examples are the blue and green angles in the figure) is exactly half the corresponding central angle (red). Hence, all inscribed angles that subtend the same arc (pink) are equal. Angles inscribed on the arc (brown) are supplementary. In particular, every inscribed angle that subtends a diameter is a right angle (since the central angle is 180 degrees).

Sagitta

The sagitta is the vertical segment.

The sagitta (also known as the versine) is a line segment drawn perpendicular to a chord, between the midpoint of that chord and the arc of the circle.

Given the length

*y*of a chord, and the length*x*of the sagitta, the Pythagorean theorem can be used to calculate the radius of the unique circle that will fit around the two lines:

Another proof of this result, which relies only on two chord properties given above, is as follows.

Given a chord of length *y* and with sagitta of length *x*, since the sagitta intersects the midpoint of the chord, we know it is part of a diameter of the circle. Since the diameter is twice the radius, the "missing" part of the diameter is (2*r* − *x*) in length. Using the fact that one part of one chord times the other part is equal to the same product taken along a chord intersecting the first chord, we find that (2*r* − *x*)*x*= (*y*/ 2)2. Solving for* r*, we find the required result.

Compass and straightedge constructions

There are many compass-and-straightedge constructions resulting in circles.

The simplest and most basic is the construction given the centre of the circle and a point on the circle.

Place the fixed leg of the compass on the centre point, the movable leg on the point on the circle and rotate the compass.

Construction with given diameter

Construct a circle through points A, B and C by finding the perpendicular bisectors (red) of the sides of the triangle (blue).

Construct the midpoint

**M**of the diameter.Construct the circle with centre

**M**passing through one of the endpoints of the diameter (it will also pass through the other endpoint).

Construction through three noncollinear points

Name the points

**P**,**Q**and**R**,Construct the perpendicular bisector of the segment

**PQ**.Construct the perpendicular bisector of the segment

**PR**.Label the point of intersection of these two perpendicular bisectors

**M**. (They meet because the points are not collinear).Construct the circle with centre

**M**passing through one of the points**P**,**Q**or**R**(it will also pass through the other two points).

Circle of Apollonius

Apollonius' definition of a circle: *d*1/*d*2 constant

Apollonius of Perga showed that a circle may also be defined as the set of points in a plane having a constant *ratio* (other than 1) of distances to two fixed foci, *A* and *B*.^{[11]}^{[12]} (The set of points where the distances are equal is the perpendicular bisector of segment *AB*, a line.) That circle is sometimes said to be drawn *about* two points.

The proof is in two parts.

First, one must prove that, given two foci *A* and *B* and a ratio of distances, any point *P* satisfying the ratio of distances must fall on a particular circle. Let *C* be another point, also satisfying the ratio and lying on segment *AB*. By the angle bisector theorem the line segment *PC* will bisect the interior angle *APB*, since the segments are similar:

Analogously, a line segment *PD* through some point *D* on *AB* extended bisects the corresponding exterior angle *BPQ* where *Q* is on *AP* extended. Since the interior and exterior angles sum to 180 degrees, the angle *CPD* is exactly 90 degrees, i.e., a right angle. The set of points *P* such that angle *CPD* is a right angle forms a circle, of which *CD* is a diameter.

Second, see^{[13]}

Cross-ratios

A closely related property of circles involves the geometry of the cross-ratio of points in the complex plane. If *A*, *B*, and *C* are as above, then the circle of Apollonius for these three points is the collection of points *P* for which the absolute value of the cross-ratio is equal to one:

Stated another way, *P* is a point on the circle of Apollonius if and only if the cross-ratio [*A*,*B*;*C*,*P*] is on the unit circle in the complex plane.

Generalised circles

If *C* is the midpoint of the segment *AB*, then the collection of points *P* satisfying the Apollonius condition

is not a circle, but rather a line.

Thus, if *A*, *B*, and *C* are given distinct points in the plane, then the locus of points *P* satisfying the above equation is called a "generalised circle." It may either be a true circle or a line. In this sense a line is a generalised circle of infinite radius.

Inscription in or circumscription about other figures

In every triangle a unique circle, called the incircle, can be inscribed such that it is tangent to each of the three sides of the triangle.^{[14]}

About every triangle a unique circle, called the circumcircle, can be circumscribed such that it goes through each of the triangle's three vertices.^{[15]}

A tangential polygon, such as a tangential quadrilateral, is any convex polygon within which a circle can be inscribed that is tangent to each side of the polygon.^{[16]} Every regular polygon and every triangle is a tangential polygon.

A cyclic polygon is any convex polygon about which a circle can be circumscribed, passing through each vertex. A well-studied example is the cyclic quadrilateral. Every regular polygon and every triangle is a cyclic polygon. A polygon that is both cyclic and tangential is called a bicentric polygon.

A hypocycloid is a curve that is inscribed in a given circle by tracing a fixed point on a smaller circle that rolls within and tangent to the given circle.

Limiting case of other figures

The circle can be viewed as a limiting case of each of various other figures:

A Cartesian oval is a set of points such that a weighted sum of the distances from any of its points to two fixed points (foci) is a constant. An ellipse is the case in which the weights are equal. A circle is an ellipse with an eccentricity of zero, meaning that the two foci coincide with each other as the centre of the circle. A circle is also a different special case of a Cartesian oval in which one of the weights is zero.

A superellipse has an equation of the form for positive

*a*,*b*, and*n*. A supercircle has*b*=*a*. A circle is the special case of a supercircle in which*n*= 2.A Cassini oval is a set of points such that the product of the distances from any of its points to two fixed points is a constant. When the two fixed points coincide, a circle results.

A curve of constant width is a figure whose width, defined as the perpendicular distance between two distinct parallel lines each intersecting its boundary in a single point, is the same regardless of the direction of those two parallel lines. The circle is the simplest example of this type of figure.

In other *p*-norms

*p*-norms

Illustrations of unit circles (see also superellipse) in different *p*-norms (every vector from the origin to the unit circle has a length of one, the length being calculated with length-formula of the corresponding *p*).

Defining a circle as the set of points with a fixed distance from a point, different shapes can be considered circles under different definitions of distance.

In *p*-norm, distance is determined by

In Euclidean geometry, *p* = 2, giving the familiar

in polar coordinates.

A circle of radius 1 (using this distance) is the von Neumann neighborhood of its center.

A circle of radius *r* for the Chebyshev distance (L∞ metric) on a plane is also a square with side length 2*r* parallel to the coordinate axes, so planar Chebyshev distance can be viewed as equivalent by rotation and scaling to planar taxicab distance. However, this equivalence between L1 and L∞ metrics does not generalize to higher dimensions.

Squaring the circle

Squaring the circle is the problem, proposed by ancient geometers, of constructing a square with the same area as a given circle by using only a finite number of steps with compass and straightedge.

In 1882, the task was proven to be impossible, as a consequence of the Lindemann–Weierstrass theorem, which proves that pi (π) is a transcendental number, rather than an algebraic irrational number; that is, it is not the root of any polynomial with rational coefficients.
