Steam locomotive

Steam locomotive

The LNER Class A4 4468 Mallard built in Doncaster is the fastest steam locomotive, reaching 126 mph (203 km/h) on 3 July 1938.

The LNER Class A4 4468 Mallard built in Doncaster is the fastest steam locomotive, reaching 126 mph (203 km/h) on 3 July 1938.

The LNER Class A3 4472 Flying Scotsman

The LNER Class A3 4472 Flying Scotsman

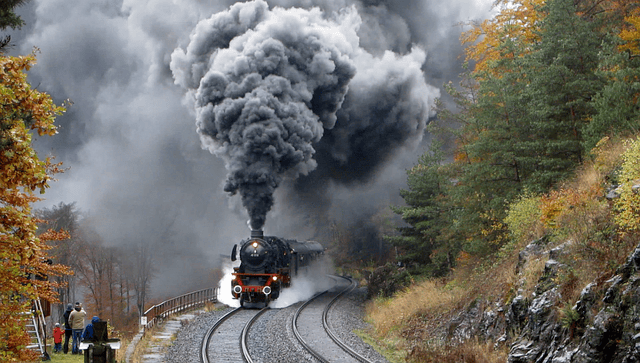

41 018 climbing the Schiefe Ebene with 01 1066 as pusher locomotive (video 34.4 MB).

41 018 climbing the Schiefe Ebene with 01 1066 as pusher locomotive (video 34.4 MB).

A steam locomotive is a type of railway locomotive that produces its pulling power through a steam engine. These locomotives are fueled by burning combustible material – usually coal, wood, or oil – to produce steam in a boiler. The steam moves reciprocating pistons which are mechanically connected to the locomotive's main wheels (drivers). Both fuel and water supplies are carried with the locomotive, either on the locomotive itself or in wagons (tenders) pulled behind.

Steam locomotives were first developed in the United Kingdom during the early 19th century and used for railway transport until the middle of the 20th century. Richard Trevithick built the first steam locomotive in 1802. The first commercially successful steam locomotive was built in 1812–13 by John Blenkinsop.[1] Locomotion No. 1, built by George Stephenson and his son Robert's company Robert Stephenson and Company, was the first steam locomotive to haul passengers on a public railway, the Stockton and Darlington Railway in 1825. In 1830, George Stephenson opened the first public inter-city railway, the Liverpool and Manchester Railway. Robert Stephenson and Company was the pre-eminent builder of steam locomotives for railways in the United Kingdom, the United States, and much of Europe in the first decades of steam.[2]

In the 20th century, Chief Mechanical Engineer of the London and North Eastern Railway (LNER) Nigel Gresley designed some of the most famous locomotives, including the Flying Scotsman, the first steam locomotive officially recorded over 100 mph in passenger service, and a LNER Class A4, 4468 Mallard, which still holds the record for being the fastest steam locomotive in the world (126 mph).[3]

From the early 1900s, steam locomotives were gradually superseded by electric and diesel locomotives, with railways fully converting to electric and diesel power beginning in the late 1930s. The majority of steam locomotives were retired from regular service by the 1980s, although several continue to run on tourist and heritage lines.

History

Britain

Trevithick's 1802 Coalbrookdale locomotive

Trevithick's 1802 Coalbrookdale locomotive

The Salamanca locomotive

The Salamanca locomotive

The Locomotion at Darlington Railway Centre and Museum

The Locomotion at Darlington Railway Centre and Museum

The earliest railways employed horses to draw carts along rail tracks.[4] In 1784, William Murdoch, a Scottish inventor, built a small-scale prototype of a steam road locomotive in Birmingham.[5] A full-scale rail steam locomotive was proposed by William Reynolds around 1787.[6] An early working model of a steam rail locomotive was designed and constructed by steamboat pioneer John Fitch in the US during 1794.[7] His steam locomotive used interior bladed wheels guided by rails or tracks. The model still exists at the Ohio Historical Society Museum in Columbus.[8] The authenticity and date of this locomotive is disputed by some experts and a workable steam train would have to await the invention of the high-pressure steam engine by Richard Trevithick, who pioneered the use of steam locomotives.[9]

The first full-scale working railway steam locomotive, was the 3 ft (914 mm) gauge Coalbrookdale Locomotive, built by Trevithick in 1802. It was constructed for the Coalbrookdale ironworks in Shropshire in the United Kingdom though no record of it working there has survived.[10] On 21 February 1804, the first recorded steam-hauled railway journey took place as another of Trevithick's locomotives hauled a train along the 4 ft 4 in (1,321 mm) tramway from the Pen-y-darren ironworks, near Merthyr Tydfil, to Abercynon in South Wales.[11][12] Accompanied by Andrew Vivian, it ran with mixed success.[4] The design incorporated a number of important innovations that included using high-pressure steam which reduced the weight of the engine and increased its efficiency.

Trevithick visited the Newcastle area in 1804 and had a ready audience of colliery (coal mine) owners and engineers.

The visit was so successful that the colliery railways in north-east England became the leading centre for experimentation and development of the steam locomotive.[14] Trevithick continued his own steam propulsion experiments through another trio of locomotives, concluding with the Catch Me Who Can

In 1812, Matthew Murray's successful twin-cylinder rack locomotive Salamanca first ran on the edge-railed rack-and-pinion Middleton Railway.[15]*Timothy%20Hackworth%20an]]*nother well-known early locomotive wasPuffing Billy

George Stephenson

George Stephenson, a former miner working as an engine-wright at Killingworth Colliery, developed up to sixteen Killingworth locomotives, including Blücher in 1814, another in 1815, and a (newly-identified) Killingworth Billy in 1816. He also constructed The Duke in 1817 for the Kilmarnock and Troon Railway, which was the first steam locomotive to work in Scotland.

In 1825, George Stephenson built Locomotion No. 1 for the Stockton and Darlington Railway, north-east England, which was the first public steam railway in the world. In 1829, his son Robert built in Newcastle The Rocket which was entered in and won the Rainhill Trials. This success led to the company emerging as the pre-eminent builder of steam locomotives used on railways in the UK, US and much of Europe.[16] The Liverpool and Manchester Railway opened a year later making exclusive use of steam power for passenger and goods trains.

United States

The Stourbridge Lion

The Stourbridge Lion

Many of the earliest locomotives for American railroads were imported from Great Britain, including first the Stourbridge Lion and later the John Bull (still the oldest operable engine-powered vehicle in the United States of any kind, as of 1981) however a domestic locomotive-manufacturing industry was quickly established. The Baltimore and Ohio Railroad's Tom Thumb in 1830, designed and built by Peter Cooper,[17]*History%20of%20the%20Baltimore%20]]*as the first US-built locomotive to run in America, although it was intended as a demonstration of the potential of steam traction, rather than as a revenue-earning locomotive. The[16]

Continental Europe

Photo of the Adler made in the early 1850s

Photo of the Adler made in the early 1850s

The Austria, the first locomotive in Austria

The Austria, the first locomotive in Austria

The first railway service outside the United Kingdom and North America was opened in 1829 in France between Saint-Etienne and Lyon. Then on 5 May 1835, the first line in Belgium linked Mechelen and Brussels. The locomotive was named The Elephant.

In Germany, the first working steam locomotive was a rack-and-pinion engine, similar to the Salamanca, designed by the British locomotive pioneer John Blenkinsop. Built in June 1816 by Johann Friedrich Krigar in the Royal Berlin Iron Foundry (Königliche Eisengießerei zu Berlin), the locomotive ran on a circular track in the factory yard. It was the first locomotive to be built on the European mainland and the first steam-powered passenger service; curious onlookers could ride in the attached coaches for a fee. It is portrayed on a New Year's badge for the Royal Foundry dated 1816. Another locomotive was built using the same system in 1817. They were to be used on pit railways in Königshütte and in Luisenthal on the Saar (today part of Völklingen), but neither could be returned to working order after being dismantled, moved and reassembled. On 7 December 1835, the Adler ran for the first time between Nuremberg and Fürth on the Bavarian Ludwig Railway. It was the 118th engine from the locomotive works of Robert Stephenson and stood under patent protection.

In 1837, the first steam railway started in Austria on the Emperor Ferdinand Northern Railway between Vienna-Floridsdorf and Deutsch-Wagram. The oldest continually working steam engine in the world also runs in Austria: the GKB 671 built in 1860, has never been taken out of service, and is still used for special excursions.

In 1838, the third steam locomotive to be built in Germany, the Saxonia, was manufactured by the Maschinenbaufirma Übigau near Dresden, built by Prof. Johann Andreas Schubert. The first independently designed locomotive in Germany was the Beuth, built by August Borsig in 1841. The first locomotive produced by Henschel-Werke in Kassel, the Drache, was delivered in 1848.

The first steam locomotives operating in Italy were the Bayard and the Vesuvio, running on the Napoli-Portici line, in the Kingdom of the Two Sicilies.

The first railway line over Swiss territory was the Strasbourg–Basle line opened in 1844. Three years later, in 1847, the first fully Swiss railway line, the Spanisch Brötli Bahn, from Zürich to Baden was opened.

Basic form

  • 01. Fire box

  • 02. Ashpan

  • 03. Water (inside the boiler)

  • 04. Smoke box

  • 05. Cab

  • 06. Tender

  • 07. Steam dome

  • 08. Safety valve

  • 09. Regulator valve

  • 10. Super heater (in smoke box)

  • 11. Piston

  • 12. Blast pipe

  • 13. Valve gear

  • 14. Regulator rod

  • 15. Drive frame

  • 16. Rear Pony truck

  • 17. Front Pony truck

  • 18. Bearing and axle box

  • 19. Leaf spring

  • 20. Brake shoe

  • 21. Air brake pump

  • 22. (Front) Center coupler

  • 23. Whistle

  • 24. Sandbox

Boiler

A steam locomotive with the boiler and firebox exposed (firebox on the left)

A steam locomotive with the boiler and firebox exposed (firebox on the left)

Aftermath of a boiler explosion on a railway locomotive, c.1850

Aftermath of a boiler explosion on a railway locomotive, c.1850

The fire-tube boiler was standard practice for steam locomotives and although other types of boiler were evaluated they were not widely used except for 1000 locomotives in Hungary which used the water-tube Brotan boiler.

A boiler consists of a firebox where the fuel is burned, a barrel where water is turned into steam and a smokebox which is kept at a slightly lower pressure than outside the firebox.

Solid fuel, such as wood, coal or coke, is thrown into the firebox through a door by a fireman, onto a set of grates which hold the fuel in a bed as it burns. Ash falls through the grate into an ashpan. If oil is used as the fuel, a door is needed for adjusting the air flow, maintaining the firebox, and cleaning the oil jets.

The fire-tube boiler has internal tubes connecting the firebox to the smokebox through which the combustion gases flow transferring heat to the water.

All the tubes together provide a large contact area, called the tube heating surface, between the gas and water in the boiler.

Boiler water surrounds the firebox to stop the metal from becoming too hot.

This is another area where the gas transfers heat to the water and is called the firebox heating surface.

Ash and char collect in the smokebox as the gas gets drawn up the chimney (stack or smokestack in the US) by the exhaust steam from the cylinders. Surrounding the boiler are layers of insulation or lagging to reduce heat loss.

The pressure in the boiler has to be monitored using a gauge mounted in the cab.

Steam pressure can be released manually by the driver or fireman.

If the pressure reaches the boiler's design working limit, a safety valve opens automatically to reduce the pressure[18] and avoid a catastrophic accident.

The exhaust steam from the engine cylinders shoots out of a nozzle pointing up the chimney in the smokebox.

The steam entrains or drags the smokebox gases with it which maintains a lower pressure in the smokebox than that under the firebox grate.

This pressure difference causes air to flow up through the coal bed and keeps the fire burning.

The search for thermal efficiency greater than that of a typical fire-tube boiler led engineers, such as Nigel Gresley, to consider the water-tube boiler. Although he tested the concept on the LNER Class W1, the difficulties during development exceeded the will to increase efficiency by that route.

The steam generated in the boiler not only moves the locomotive, but is also used to operate other devices such as the whistle, the air compressor for the brakes, the pump for replenishing the water in the boiler and the passenger car heating system.

The constant demand for steam requires a periodic replacement of water in the boiler.

The water is kept in a tank in the locomotive tender or wrapped around the boiler in the case of a tank locomotive. Periodic stops are required to refill the tanks; an alternative was a scoop installed under the tender that collected water as the train passed over a track pan located between the rails.

While the locomotive is producing steam, the amount of water in the boiler is constantly monitored by looking at the water level in a transparent tube, or sight glass.

Efficient and safe operation of the boiler requires keeping the level in between lines marked on the sight glass.

If the water level is too high, steam production falls, efficiency is lost and water is carried out with the steam into the cylinders, possibly causing mechanical damage.

More seriously, if the water level gets too low, the crown(top)sheet of the firebox becomes exposed.

Without water on top of the sheet to transfer away the heat of combustion, it softens and fails, letting high-pressure steam into the firebox and the cab.

The development of the fusible plug, a temperature-sensitive device, ensured a controlled venting of steam into the firebox to warn the fireman to add water.

Scale builds up in the boiler and prevents adequate heat transfer, and corrosion eventually degrades the boiler materials to the point where it needs to be rebuilt or replaced.

Start-up on a large engine may take hours of preliminary heating of the boiler water before sufficient steam is available.

Although the boiler is typically placed horizontally, for locomotives designed to work in locations with steep slopes it may be more appropriate to consider a vertical boiler or one mounted such that the boiler remains horizontal but the wheels are inclined to suit the slope of the rails.

Steam circuit

Thermal image of an operating steam locomotive

Thermal image of an operating steam locomotive

The steam generated in the boiler fills the space above the water in the partially filled boiler.

Its maximum working pressure is limited by spring-loaded safety valves.

It is then collected either in a perforated tube fitted above the water level or by a dome that often houses the regulator valve, or throttle, the purpose of which is to control the amount of steam leaving the boiler.

The steam then either travels directly along and down a steam pipe to the engine unit or may first pass into the wet header of a superheater, the role of the latter being to improve thermal efficiency and eliminate water droplets suspended in the "saturated steam", the state in which it leaves the boiler. On leaving the superheater, the steam exits the dry header of the superheater and passes down a steam pipe, entering the steam chests adjacent to the cylinders of a reciprocating engine. Inside each steam chest is a sliding valve that distributes the steam via ports that connect the steam chest to the ends of the cylinder space. The role of the valves is twofold: admission of each fresh dose of steam, and exhaust of the used steam once it has done its work.

The cylinders are double-acting, with steam admitted to each side of the piston in turn.

In a two-cylinder locomotive, one cylinder is located on each side of the vehicle.

The cranks are set 90° out of phase.

During a full rotation of the driving wheel, steam provides four power strokes; each cylinder receives two injections of steam per revolution.

The first stroke is to the front of the piston and the second stroke to the rear of the piston; hence two working strokes.

Consequently, two deliveries of steam onto each piston face in the two cylinders generates a full revolution of the driving wheel.

Each piston is attached to the driving axle on each side by a connecting rod, and the driving wheels are connected together by coupling rods to transmit power from the main driver to the other wheels. Note that at the two "dead centres", when the connecting rod is on the same axis as the crankpin on the driving wheel, the connecting rod applies no torque to the wheel. Therefore, if both cranksets could be at "dead centre" at the same time, and the wheels should happen to stop in this position, the locomotive could not start moving. Therefore, the crankpins are attached to the wheels at a 90° angle to each other, so only one side can be at dead centre at a time.

Each piston transmits power through a crosshead, connecting rod (Main rod in the US) and a crankpin on the driving wheel (Main driver in the US) or to a crank on a driving axle. The movement of the valves in the steam chest is controlled through a set of rods and linkages called the valve gear, actuated from the driving axle or from the crankpin; the valve gear includes devices that allow reversing the engine, adjusting valve travel and the timing of the admission and exhaust events. The cut-off point determines the moment when the valve blocks a steam port, "cutting off" admission steam and thus determining the proportion of the stroke during which steam is admitted into the cylinder; for example a 50% cut-off admits steam for half the stroke of the piston. The remainder of the stroke is driven by the expansive force of the steam. Careful use of cut-off provides economical use of steam and in turn, reduces fuel and water consumption. The reversing lever (Johnson bar in the US), or screw-reverser (if so equipped), that controls the cut-off, therefore, performs a similar function to a gearshift in an automobile – maximum cut-off, providing maximum tractive effort at the expense of efficiency, is used to pull away from a standing start, whilst a cut-off as low as 10% is used when cruising, providing reduced tractive effort, and therefore lower fuel/water consumption.[19]

Exhaust steam is directed upwards out of the locomotive through the chimney, by way of a nozzle called a blastpipe, creating the familiar "chuffing" sound of the steam locomotive. The blastpipe is placed at a strategic point inside the smokebox that is at the same time traversed by the combustion gases drawn through the boiler and grate by the action of the steam blast. The combining of the two streams, steam and exhaust gases, is crucial to the efficiency of any steam locomotive, and the internal profiles of the chimney (or, strictly speaking, the ejector) require careful design and adjustment. This has been the object of intensive studies by a number of engineers (and often ignored by others, sometimes with catastrophic consequences). The fact that the draught depends on the exhaust pressure means that power delivery and power generation are automatically self-adjusting. Among other things, a balance has to be struck between obtaining sufficient draught for combustion whilst giving the exhaust gases and particles sufficient time to be consumed. In the past, a strong draught could lift the fire off the grate, or cause the ejection of unburnt particles of fuel, dirt and pollution for which steam locomotives had an unenviable reputation. Moreover, the pumping action of the exhaust has the counter-effect of exerting back pressure on the side of the piston receiving steam, thus slightly reducing cylinder power. Designing the exhaust ejector became a specific science, with engineers such as Chapelon, Giesl and Porta making large improvements in thermal efficiency and a significant reduction in maintenance time[20] and pollution.[21] A similar system was used by some early gasoline/kerosene tractor manufacturers (Advance-Rumely/Hart-Parr) – the exhaust gas volume was vented through a cooling tower, allowing the steam exhaust to draw more air past the radiator.

Running gear

Steam locomotive 2-8-2 at train station

Steam locomotive 2-8-2 at train station

Steam-cleaning the running gear of an "H" class locomotive, Chicago and North Western Railway, 1943

Steam-cleaning the running gear of an "H" class locomotive, Chicago and North Western Railway, 1943

Running gear of steam locomotive

Running gear of steam locomotive

Running gear animation

Running gear animation

Running gear includes the brake gear, wheel sets, axleboxes, springing and the motion that includes connecting rods and valve gear. The transmission of the power from the pistons to the rails and the behaviour of the locomotive as a vehicle, being able to negotiate curves, points and irregularities in the track, is of paramount importance. Because reciprocating power has to be directly applied to the rail from 0 rpm upwards, this creates the problem of adhesion of the driving wheels to the smooth rail surface. Adhesive weight is the portion of the locomotive's weight bearing on the driving wheels. This is made more effective if a pair of driving wheels is able to make the most of its axle load, i.e. its individual share of the adhesive weight. Equalising beams connecting the ends of leaf springs have often been deemed a complication in Britain, however, locomotives fitted with the beams have usually been less prone to loss of traction due to wheel-slip. Suspension using equalizing levers between driving axles, and between driving axles and trucks, was standard practice on North American locomotives to maintain even wheel loads when operating on uneven track.

Locomotives with total adhesion, where all of the wheels are coupled together, generally lack stability at speed.

To counter this, locomotives often fit unpowered carrying wheels mounted on two-wheeled trucks or four-wheeled bogies centred by springs/inverted rockers/geared rollers that help to guide the locomotive through curves. These usually take on weight – of the cylinders at the front or the firebox at the rear — when the width exceeds that of the mainframes. Locomotives with multiple coupled-wheels on a rigid chassis would have unacceptable flange forces on tight curves giving excessive flange and rail wear, track spreading and wheel climb derailments. One solution was to remove or thin the flanges on an axle. More common was to give axles end-play and use lateral motion control with spring or inclined-plane gravity devices.

Railroads generally preferred locomotives with fewer axles, to reduce maintenance costs.

The number of axles required was dictated by the maximum axle loading of the railroad in question.

A builder would typically add axles until the maximum weight on any one axle was acceptable to the railroad's maximum axle loading.

A locomotive with a wheel arrangement of two lead axles, two drive axles, and one trailing axle was a high-speed machine.

Two lead axles were necessary to have good tracking at high speeds.

Two drive axles had a lower reciprocating mass than three, four, five or six coupled axles.

They were thus able to turn at very high speeds due to the lower reciprocating mass.

A trailing axle was able to support a huge firebox, hence most locomotives with the wheel arrangement of 4-4-2 (American Type Atlantic) were called free steamers and were able to maintain steam pressure regardless of throttle setting.

Chassis

The chassis, or locomotive frame, is the principal structure onto which the boiler is mounted and which incorporates the various elements of the running gear. The boiler is rigidly mounted on a "saddle" beneath the smokebox and in front of the boiler barrel, but the firebox at the rear is allowed to slide forward and backwards, to allow for expansion when hot.

European locomotives usually use "plate frames", where two vertical flat plates form the main chassis, with a variety of spacers and a buffer beam at each end to form a rigid structure. When inside cylinders are mounted between the frames, the plate frames are a single large casting that forms a major support element. The axleboxes slide up and down to give some sprung suspension, against thickened webs attached to the frame, called "hornblocks".[22]

American practice for many years was to use built-up bar frames, with the smokebox saddle/cylinder structure and drag beam integrated therein.

In the 1920s, with the introduction of "superpower", the cast-steel locomotive bed became the norm, incorporating frames, spring hangers, motion brackets, smokebox saddle and cylinder blocks into a single complex, sturdy but heavy casting.

An S.N.C.F design study using welded tubular frames gave a rigid frame with a 30% weight reduction.[23]

Fuel and water

Water gauge.

Water gauge.

A locomotive takes on water using a water crane

A locomotive takes on water using a water crane

Generally, the largest locomotives are permanently coupled to a tender that carries the water and fuel. Often, locomotives working shorter distances do not have a tender and carry the fuel in a bunker, with the water carried in tanks placed next to the boiler. The tanks can be in various configurations, including two tanks alongside (side tanks or pannier tanks), one on top (saddle tank) or one between the frames (well tank).

The fuel used depended on what was economically available to the railway.

In the UK and other parts of Europe, plentiful supplies of coal made this the obvious choice from the earliest days of the steam engine.

Until 1870,[24] the majority of locomotives in the United States burned wood, but as the Eastern forests were cleared, coal gradually became more widely used until it became the dominant fuel worldwide in steam locomotives. Railways serving sugar cane farming operations burned bagasse, a byproduct of sugar refining. In the US, the ready availability and low price of oil made it a popular steam locomotive fuel after 1900 for the southwestern railroads, particularly the Southern Pacific. In the Australian state of Victoria, many steam locomotives were converted to heavy oil firing after World War II. German, Russian, Australian and British railways experimented with using coal dust to fire locomotives.

During World War II, a number of Swiss steam shunting locomotives were modified to use electrically heated boilers, consuming around 480 kW of power collected from an overhead line with a pantograph. These locomotives were significantly less efficient than electric ones; they were used because Switzerland had access to plentiful hydroelectricity, and suffered from a shortage of coal because of the war.[25]

A number of tourist lines and heritage locomotives in Switzerland, Argentina and Australia have used light diesel-type oil.

Water was supplied at stopping places and locomotive depots from a dedicated water tower connected to water cranes or gantries. In the UK, the US and France, water troughs (track pans in the US) were provided on some main lines to allow locomotives to replenish their water supply without stopping, from rainwater or snowmelt that filled the trough due to inclement weather. This was achieved by using a deployable "water scoop" fitted under the tender or the rear water tank in the case of a large tank engine; the fireman remotely lowered the scoop into the trough, the speed of the engine forced the water up into the tank, and the scoop was raised again once it was full.

Water is an essential element in the operation of a steam locomotive.

As Swengel argued:

It has the highest specific heat of any common substance; that is, more thermal energy is stored by heating water to a given temperature than would be stored by heating an equal mass of steel or copper to the same temperature.

In addition, the property of vapourising (forming steam) stores additional energy without increasing the temperature… water is a very satisfactory medium for converting thermal energy of fuel into mechanical energy.[27]

Swengel went on to note that "at low temperature and relatively low boiler outputs", good water and regular boiler washout was an acceptable practice, even though such maintenance was high.

As steam pressures increased, however, a problem of "foaming" or "priming" developed in the boiler, wherein dissolved solids in the water formed "tough-skinned bubbles" inside the boiler, which in turn were carried into the steam pipes and could blow off the cylinder heads.

To overcome the problem, hot mineral-concentrated water was deliberately wasted (blown down) from the boiler periodically.

Higher steam pressures required more blowing-down of water out of the boiler.

Oxygen generated by boiling water attacks the boiler, and with increased steam pressure the rate of rust (iron oxide) generated inside the boiler increases.

One way to help overcome the problem was water treatment.

Swengel suggested that these problems contributed to the interest in electrification of railways.[27]

In the 1970s, L.D.

Porta developed a sophisticated system of heavy-duty chemical water treatment (Porta Treatment) that not only keeps the inside of the boiler clean and prevents corrosion, but modifies the foam in such a way as to form a compact "blanket" on the water surface that filters the steam as it is produced, keeping it pure and preventing carry-over into the cylinders of water and suspended abrasive matter.[28][29]

Crew

A steam locomotive is normally controlled from the boiler's backhead, and the crew is usually protected from the elements by a cab. A crew of at least two people is normally required to operate a steam locomotive. One, the train driver or engineer (North America), is responsible for controlling the locomotive's starting, stopping and speed, and the fireman is responsible for maintaining the fire, regulating steam pressure and monitoring boiler and tender water levels. Due to the historical loss of operational infrastructure and staffing, preserved steam locomotives operating on the mainline will often have a support crew travelling with the train.

Fittings and appliances

All locomotives are fitted with a variety of appliances.

Some of these relate directly to the operation of the steam engine; while others are for signalling, train control or other purposes.

In the United States, the Federal Railroad Administration mandated the use of certain appliances over the years in response to safety concerns. The most typical appliances are as follows:

Steam pumps and injectors

Water (feedwater) must be delivered to the boiler to replace that which is exhausted as steam after delivering a working stroke to the pistons. As the boiler is under pressure during operation, feedwater must be forced into the boiler at a pressure that is greater than the steam pressure, necessitating the use of some sort of pump. Hand-operated pumps sufficed for the very earliest locomotives. Later engines used pumps driven by the motion of the pistons (axle pumps), which were simple to operate, reliable and could handle large quantities of water but only operated when the locomotive was moving and could overload the valve gear and piston rods at high speeds. Steam injectors later replaced the pump, while some engines transitioned to turbopumps. Standard practice evolved to use two independent systems for feeding water to the boiler; either two steam injectors or, on more conservative designs, axle pumps when running at service speed and a steam injector for filling the boiler when stationary or at low speeds. By the 20th century virtually all new-built locomotives used only steam injectors – often one injector was supplied with "live" steam straight from the boiler itself and the other used exhaust steam from the locomotive's cylinders, which was more efficient (since it made use of otherwise wasted steam) but could only be used when the locomotive was in motion and the regulator was open. Injectors became unreliable if the feedwater was at a high temperature, so locomotives with feedwater heaters, tank locomotives with the tanks in contact with the boiler and condensing locomotives sometimes used reciprocating steam pumps or turbopumps.

Vertical glass tubes, known as water gauges or water glasses, show the level of water in the boiler and are carefully monitored at all times while the boiler is being fired. Before the 1870s it was more common to have a series of try-cocks fitted to the boiler within reach of the crew; each try cock (at least two and usually three were fitted) was mounted at a different level. By opening each try-cock and seeing if steam or water vented through it, the level of water in the boiler could be estimated with limited accuracy. As boiler pressures increased the use of try-cocks became increasingly dangerous and the valves were prone to blockage with scale or sediment, giving false readings. This led to their replacement with the sight glass. As with the injectors, two glasses with separate fittings were usually installed to provide independent readings.

Boiler insulation

The term for pipe and boiler insulation is "lagging"[30] which derives from the cooper's term for a wooden barrel stave.[31] Two of the earliest steam locomotives used wooden lagging to insulate their boilers: the Salamanca, the first commercially successful steam locomotive, built in 1812,[16] and the Locomotion No. 1, the first steam locomotive to carry passengers on a public rail line. Large amounts of heat are wasted if a boiler is not insulated. Early locomotives used lags, shaped wooden staves, fitted lengthways along the boiler barrel, and held in place by hoops, metal bands, the terms and methods are from cooperage.

Improved insulating methods included applying a thick paste containing a porous mineral such as kieselgur, or attaching shaped blocks of insulating compound such as magnesia blocks.[33] In the latter days of steam, "mattresses" of stitched asbestos cloth stuffed with asbestos fibre were fixed to the boiler, on separators so as not quite to touch the boiler. However, asbestos is currently banned in most countries for health reasons. The most common modern-day material is glass wool, or wrappings of aluminium foil.

The lagging is protected by a close-fitted sheet-metal casing[34]

Effective lagging is particularly important for fireless locomotives; however, in recent times under the influence of L.D. Porta, "exaggerated" insulation has been practised for all types of locomotive on all surfaces liable to dissipate heat, such as cylinder ends and facings between the cylinders and the mainframes. This considerably reduces engine warmup time with a marked increase in overall efficiency.

Safety valves

The boiler safety valves lifting on 60163 Tornado

The boiler safety valves lifting on 60163 Tornado

Early locomotives were fitted with a valve controlled by a weight suspended from the end of a lever, with the steam outlet being stopped by a cone-shaped valve.

As there was nothing to prevent the weighted lever from bouncing when the locomotive ran over irregularities in the track, thus wasting steam, the weight was later replaced by a more stable spring-loaded column, often supplied by Salter, a well-known spring scale manufacturer. The danger of these devices was that the driving crew could be tempted to add weight to the arm to increase pressure. Most early boilers were fitted with a tamper-proof "lockup" direct-loaded ball valve protected by a cowl. In the late 1850s, John Ramsbottom introduced a safety valve that became popular in Britain during the latter part of the 19th century. Not only was this valve tamper-proof, but tampering by the driver could only have the effect of easing pressure. George Richardson's safety valve was an American invention introduced in 1875,[35] and was designed to release the steam only at the moment when the pressure attained the maximum permitted. This type of valve is in almost universal use at present. Britain's Great Western Railway was a notable exception to this rule, retaining the direct-loaded type until the end of its separate existence, because it was considered that such a valve lost less pressure between opening and closing.

Pressure gauge

Pressure gauges on Blackmore Vale

Pressure gauges on Blackmore Vale

The earliest locomotives did not show the pressure of steam in the boiler, but it was possible to estimate this by the position of the safety valve arm which often extended onto the firebox back plate; gradations marked on the spring column gave a rough indication of the actual pressure.

The promoters of the Rainhill trials urged that each contender have a proper mechanism for reading the boiler pressure, and Stephenson devised a nine-foot vertical tube of mercury with a sight-glass at the top, mounted alongside the chimney, for his Rocket. The Bourdon tube gauge, in which the pressure straightens an oval-section coiled tube of brass or bronze connected to a pointer, was introduced in 1849 and quickly gained acceptance, and is still used today.[36] Some locomotives have an additional pressure gauge in the steam chest. This helps the driver avoid wheel-slip at startup, by warning if the regulator opening is too great.

Spark arrestors and smokeboxes

Typical self-cleaning smokebox design

Typical self-cleaning smokebox design

Spark arrestor and self-cleaning smokebox

Wood-burners emit large quantities of flying sparks which necessitate an efficient spark-arresting device generally housed in the smokestack.

Many different types were fitted,[35] the most common early type being the Bonnet stack that incorporated a cone-shaped deflector placed before the mouth of the chimney pipe, and a wire screen covering the wide stack exit. A more-efficient design was the Radley and Hunter centrifugal stack patented in 1850 (commonly known as the diamond stack), incorporating baffles so oriented as to induce a swirl effect in the chamber that encouraged the embers to burn out and fall to the bottom as ash. In the self-cleaning smokebox the opposite effect was achieved: by allowing the flue gasses to strike a series of deflector plates, angled in such a way that the blast was not impaired, the larger particles were broken into small pieces that would be ejected with the blast, rather than settle in the bottom of the smokebox to be removed by hand at the end of the run. As with the arrestor, a screen was incorporated to retain any large embers.[38]

Locomotives of the British Railways standard classes fitted with self-cleaning smokeboxes were identified by a small cast oval plate marked "S.C.", fitted at the bottom of the smokebox door. These engines required different disposal procedures and the plate highlighted this need to depot staff.

Stokers

A factor that limits locomotive performance is the rate at which fuel is fed into the fire.

In the early 20th century some locomotives became so large that the fireman could not shovel coal fast enough.[34]

Feedwater heating

Introducing cold water into a boiler reduces power, and from the 1920s a variety of heaters were incorporated. The most common type for locomotives was the exhaust steam feedwater heater that piped some of the exhaust through small tanks mounted on top of the boiler or smokebox or into the tender tank; the warm water then had to be delivered to the boiler by a small auxiliary steam pump. The rare economiser type differed in that it extracted residual heat from the exhaust gases. An example of this is the pre-heater drum(s) found on the Franco-Crosti boiler.

The use of live steam and exhaust steam injectors also assists in the pre-heating of boiler feedwater to a small degree, though there is no efficiency advantage to live steam injectors.

Such pre-heating also reduces the thermal shock that a boiler might experience when cold water is introduced directly. This is further helped by the top feed, where water is introduced to the highest part of the boiler and made to trickle over a series of trays. G.J. Churchward fitted this arrangement to the high end of his domeless coned boilers. Other British lines such as the LBSCR fitted some locomotives with the top feed inside a separate dome forward of the main one.

Condensers and water re-supply

Watering a steam locomotive

Watering a steam locomotive

South African Class 25 condensing locomotive

South African Class 25 condensing locomotive

Steam locomotives consume vast quantities of water because they operate on an open cycle, expelling their steam immediately after a single use rather than recycling it in a closed loop as stationary and marine steam engines do. Water was a constant logistical problem, and condensing engines were devised for use in desert areas. These engines had huge radiators in their tenders and instead of exhausting steam out of the funnel it was captured, passed back to the tender and condensed. The cylinder lubricating oil was removed from the exhausted steam to avoid a phenomenon known as priming, a condition caused by foaming in the boiler which would allow water to be carried into the cylinders causing damage because of its incompressibility. The most notable engines employing condensers (Class 25, the "puffers which never puff"[39]) worked across the Karoo desert of South Africa from the 1950s until the 1980s.

Some British and American locomotives were equipped with scoops which collected water from "water troughs" (track pans in the US) while in motion, thus avoiding stops for water. In the US, small communities often did not have refilling facilities. During the early days of railroading, the crew simply stopped next to a stream and filled the tender using leather buckets. This was known as "jerking water" and led to the term "jerkwater towns" (meaning a small town, a term which today is considered derisive).[40] In Australia and South Africa, locomotives in drier regions operated with large oversized tenders and some even had an additional water wagon, sometimes called a "canteen" or in Australia (particularly in New South Wales) a "water gin".

Steam locomotives working on underground railways (such as London's Metropolitan Railway) were fitted with condensing apparatus to prevent steam from escaping into the railway tunnels. These were still being used between King's Cross and Moorgate into the early 1960s.

Braking

Locomotives have their own braking system, independent from the rest of the train.

Locomotive brakes employ large shoes which press against the driving wheel treads.

With the advent of compressed air brakes, a separate system allowed the driver to control the brakes on all cars. A single-stage, steam-driven, air compressor was mounted on the side of the boiler. Long freight trains needed more air and a two-stage compressor with LP and HP cylinders, driven by cross-compound HP and LP steam cylinders, was introduced. It had three and a half times the capacity of the single stage.[41] Most were made by Westinghouse. Two were fitted in front of the smokebox on big articulated locomotives. Westinghouse systems were used in the United States, Canada, Australia and New Zealand.

An alternative to the air brake is the vacuum brake, in which a steam-operated ejector is mounted on the engine instead of the air pump, to create a vacuum and release the brakes. A secondary ejector or crosshead vacuum pump is used to maintain the vacuum in the system against the small leaks in the pipe connections between carriages and wagons. Vacuum systems existed on British, Indian, West Australian and South African railway networks.

Steam locomotives are fitted with sandboxes from which sand can be deposited on top of the rail to improve traction and braking in wet or icy weather. On American locomotives, the sandboxes, or sand domes, are usually mounted on top of the boiler. In Britain, the limited loading gauge precludes this, so the sandboxes are mounted just above, or just below, the running plate.

Lubrication

"Wakefield" brand displacement lubricator mounted on a locomotive boiler backplate.

"Wakefield" brand displacement lubricator mounted on a locomotive boiler backplate.

Big-end bearing (with connecting rod and coupling rod) of a Blackmoor Vale showing pierced cork stoppers to oil reservoirs

Big-end bearing (with connecting rod and coupling rod) of a Blackmoor Vale showing pierced cork stoppers to oil reservoirs

The pistons and valves on the earliest locomotives were lubricated by the enginemen dropping a lump of tallow down the blast pipe.[42]

As speeds and distances increased, mechanisms were developed that injected thick mineral oil into the steam supply.

The first, a displacement lubricator, mounted in the cab, uses a controlled stream of steam condensing into a sealed container of oil. Water from the condensed steam displaces the oil into pipes. The apparatus is usually fitted with sight-glasses to confirm the rate of supply. A later method uses a mechanical pump worked from one of the crossheads. In both cases, the supply of oil is proportional to the speed of the locomotive.

Lubricating the frame components (axle bearings, horn blocks and bogie pivots) depends on capillary action: trimmings of worsted yarn are trailed from oil reservoirs into pipes leading to the respective component.[43] The rate of oil supplied is controlled by the size of the bundle of yarn and not the speed of the locomotive, so it is necessary to remove the trimmings (which are mounted on wire) when stationary. However, at regular stops (such as a terminating station platform), oil finding its way onto the track can still be a problem.

Crankpin and crosshead bearings carry small cup-shaped reservoirs for oil.

These have feed pipes to the bearing surface that start above the normal fill level, or are kept closed by a loose-fitting pin, so that only when the locomotive is in motion does oil enter.

In United Kingdom practice, the cups are closed with simple corks, but these have a piece of porous cane pushed through them to admit air.

It is customary for a small capsule of pungent oil (aniseed or garlic) to be incorporated in the bearing metal to warn if the lubrication fails and excess heating or wear occurs.[44]

Blower

When the locomotive is running under power, a draught on the fire is created by the exhaust steam directed up the chimney by the blastpipe.

Without draught, the fire will quickly die down and steam pressure will fall.

When the locomotive is stopped, or coasting with the regulator closed, there is no exhaust steam to create a draught, so the draught is maintained by means of a blower.

This is a ring placed either around the base of the chimney, or around the blast pipe orifice, containing several small steam nozzles directed up the chimney.

These nozzles are fed with steam directly from the boiler, controlled by the blower valve.

When the regulator is open, the blower valve is closed; when the driver intends to close the regulator, he will first open the blower valve.

It is important that the blower be opened before the regulator is closed, since without draught on the fire, there may be backdraught – where atmospheric air blows down the chimney, causing the flow of hot gases through the boiler tubes to be reversed, with the fire itself being blown through the firehole onto the footplate, with serious consequences for the crew. The risk of backdraught is higher when the locomotive enters a tunnel because of the pressure shock. The blower is also used to create draught when steam is being raised at the start of the locomotive's duty, at any time when the driver needs to increase the draught on the fire, and to clear smoke from the driver's line of vision.[45]

Blowbacks were fairly common.

In a 1955 report on an accident near Dunstable, the Inspector wrote, "In 1953 twenty-three cases, which were not caused by an engine defect, were reported and they resulted in 26 enginemen receiving injuries. In 1954, the number of occurrences and of injuries were the same and there was also one fatal casualty."[46] They remain a problem, as evidenced by the 2012 incident with BR standard class 7 70013 Oliver Cromwell.

Buffers

In British and European (except former Soviet Union countries) practice, locomotives usually have buffers at each end to absorb compressive loads ("buffets"[47]). The tensional load of drawing the train (draft force) is carried by the coupling system. Together these control slack between the locomotive and train, absorb minor impacts and provide a bearing point for pushing movements.

In Canadian and American practice, all of the forces between the locomotive and cars are handled through the coupler – particularly the Janney coupler, long standard on American railroad rolling stock – and its associated draft gear, which allows some limited slack movement. Small dimples called "poling pockets" at the front and rear corners of the locomotive allowed cars to be pushed onto an adjacent track using a pole braced between the locomotive and the cars.[48] In Britain and Europe, North American style "buckeye" and other couplers that handle forces between items of rolling stock have become increasingly popular.

Pilots

A pilot was usually fixed to the front end of locomotives, although in European and a few other railway systems including New South Wales, they were considered unnecessary. Plough-shaped, sometimes called "cow catchers", they were quite large and were designed to remove obstacles from the track such as cattle, bison, other animals or tree limbs. Though unable to "catch" stray cattle, these distinctive items remained on locomotives until the end of steam. Switching engines usually replaced the pilot with small steps, known as footboards. Many systems used the pilot and other design features to produce a distinctive appearance.

Headlights

Preserved Great Western Railway locomotive Bradley Manor, with two oil lamps signifying an express passenger service, and a high-intensity electric lamp added for safety standards.

Preserved Great Western Railway locomotive Bradley Manor, with two oil lamps signifying an express passenger service, and a high-intensity electric lamp added for safety standards.

When night operations began, railway companies in some countries equipped their locomotives with lights to allow the driver to see what lay ahead of the train, or to enable others to see the locomotive.

Headlights were originally oil or acetylene lamps, but when electric arc lamps became available in the late 1880s, they quickly replaced the older types.

Britain did not adopt bright headlights as they would affect night vision and so could mask the low-intensity oil lamps used in the semaphore signals and at each end of trains, increasing the danger of missing signals, especially on busy tracks. Locomotive stopping distances were also normally much greater than the range of headlights, and the railways were well-signalled and fully fenced to prevent livestock and people from straying onto them, largely negating the need for bright lamps. Thus low-intensity oil lamps continued to be used, positioned on the front of locomotives to indicate the class of each train. Four "lamp irons" (brackets on which to place the lamps) were provided: one below the chimney and three evenly spaced across the top of the buffer beam. The exception to this was the Southern Railway and its constituents, who added an extra lamp iron each side of the smokebox, and the arrangement of lamps (or in daylight, white circular plates) told railway staff the origin and destination of the train. On all vehicles, equivalent lamp irons were also provided on the rear of the locomotive or tender for when the locomotive was running tender- or bunker-first.

In some countries, heritage steam operation continues on the national network.

Some railway authorities have mandated powerful headlights on at all times, including during daylight.

This was to further inform the public or track workers of any active trains.

Bells and whistles

Locomotives used bells and steam whistles from earliest days of steam locomotion.

In the United States, India and Canada, bells warned of a train in motion.

In Britain, where all lines are by law fenced throughout,[49] bells were only a requirement on railways running on a road (i.e. not fenced off), for example a tramway along the side of the road or in a dockyard.

Consequently, only a minority of locomotives in the UK carried bells.

Whistles are used to signal personnel and give warnings.

Depending on the terrain the locomotive was being used in, the whistle could be designed for long-distance warning of impending arrival, or for more localised use.

Early bells and whistles were sounded through pull-string cords and levers.

Automatic bell ringers came into widespread use in the US after 1910.[24]

Automatic control

A typical AWS "sunflower" indicator. The indicator shows either a black disk or a yellow and black "exploding" disk.

A typical AWS "sunflower" indicator. The indicator shows either a black disk or a yellow and black "exploding" disk.

From the early 20th century operating companies in such countries as Germany and Britain began to fit locomotives with Automatic Warning System (AWS) in-cab signalling, which automatically applied the brakes when a signal was passed at "caution". In Britain, these became mandatory in 1956. In the United States, the Pennsylvania Railroad also fitted their locomotives with such devices.

Booster engines

The booster engine was an auxiliary steam engine which provided extra tractive effort for starting. It was a low-speed device, usually mounted on the trailing truck. It was dis-engaged via an idler gear at a low speed, eg 30 km/hr. Boosters were widely used in the US and tried experimentally in Britain and France. On the narrow-gauged New Zealand railway system, six Kb 4-8-4 locomotives were fitted with boosters, the only 3 ft 6 in (1,067 mm) gauge engines in the world to have such equipment.

Booster engines were also fitted to tender trucks in the US and known as auxiliary locomotives.

Two and even three truck axles were connected together using side rods which limited them to slow-speed service.[51]

Firedoor

The firedoor is used to cover the firehole when coal is not being added.

It serves two purposes, first, it prevents air being drawn over the top of the fire, rather forcing it to be drawn through it.

The second purpose is to safeguard the train crew against blowbacks.

It does, however, have a means to allow some air to pass over the top of the fire (referred to as "secondary air") to complete the combustion of gases produced by the fire.

Firedoors come in multiple designs, the most basic of which is a single piece which is hinged on one side and can swing open onto the footplate.

This design has two issues.

First, it takes up lots of room on the footplate, and second, the draught will tend to pull it completely shut, thus cutting off any secondary air.

To compensate for this some locomotives are fitted with a latch that prevents the firedoor from closing completely whereas others have a small vent on the door that may be opened to allow secondary air to flow through.

Though it was considered to design a firedoor that opens inwards into the firebox thus preventing the inconvenience caused on the footplate, such a door would be exposed to the full heat of the fire and would likely deform, thus becoming useless.

A more popular type of firedoor consists of a two-piece sliding door operated by a single lever.

There are tracks above and below the firedoor which the door runs along.

These tracks are prone to becoming jammed by debris and the doors required more effort to open than the aforementioned swinging door.

In order to address this some firedoors use powered operation which utilized a steam or air cylinder to open the door.

Among these are the butterfly doors which pivot at the upper corner, the pivoting action offers low resistance to the cylinder that opens the door.[52]

Variations

Numerous variations on the basic locomotive occurred as railways attempted to improve efficiency and performance.

Cylinders

Early steam locomotives had two cylinders, one either side, and this practice persisted as the simplest arrangement.

The cylinders could be mounted between the mainframes (known as "inside" cylinders), or mounted outside the frames and driving wheels ("outside" cylinders).

Inside cylinders are driven by cranks built into the driving axle; outside cylinders are driven by cranks on extensions to the driving axles.

Later designs employed three or four cylinders, mounted both inside and outside the frames, for a more even power cycle and greater power output.[53] This was at the expense of more complicated valve gear and increased maintenance requirements.

In some cases the third cylinder was added inside simply to allow for smaller diameter outside cylinders, and hence reduce the width of the locomotive for use on lines with a restricted loading gauge, for example the SR K1 and U1 classes.

Most British express-passenger locomotives built between 1930 and 1950 were 4-6-0 or 4-6-2 types with three or four cylinders (e.g. GWR 6000 Class, LMS Coronation Class, SR Merchant Navy Class, LNER Gresley Class A3). From 1951, all but one of the 999 new British Rail standard class steam locomotives across all types used 2-cylinder configurations for easier maintenance.

Valve gear

Early locomotives used a simple valve gear that gave full power in either forward or reverse.[36] Soon the Stephenson valve gear allowed the driver to control cut-off; this was largely superseded by Walschaerts valve gear and similar patterns. Early locomotive designs using slide valves and outside admission were relatively easy to construct, but inefficient and prone to wear.[36] Eventually, slide valves were superseded by inside admission piston valves, though there were attempts to apply poppet valves (commonly used in stationary engines) in the 20th century. Stephenson valve gear was generally placed within the frame and was difficult to access for maintenance; later patterns applied outside the frame were more readily visible and maintained.

Compounding

U-127 Lenin's funeral train, a 4-6-0 oil burning De Glehn compound locomotive, in the Museum of the Moscow Railway at Paveletsky Rail Terminal

U-127 Lenin's funeral train, a 4-6-0 oil burning De Glehn compound locomotive, in the Museum of the Moscow Railway at Paveletsky Rail Terminal

Compound locomotives were used from 1876, expanding the steam twice or more through separate cylinders – reducing thermal losses caused by cylinder cooling.

Compound locomotives were especially useful in trains where long periods of continuous efforts were needed.

Compounding contributed to the dramatic increase in power achieved by André Chapelon's rebuilds from 1929.

A common application was in articulated locomotives, the most common being that designed by Anatole Mallet, in which the high-pressure stage was attached directly to the boiler frame; in front of this was pivoted a low-pressure engine on its own frame, which takes the exhaust from the rear engine.[54]

Articulated locomotives

More-powerful locomotives tend to be longer, but long rigid-framed designs are impractical for the tight curves frequently found on narrow-gauge railways.

Various designs for articulated locomotives were developed to overcome this problem. The Mallet and the Garratt were the two most popular, both using a single boiler and two engines (sets of cylinders and driving wheels). The Garratt has two power bogies, whereas the Mallet has one. There were also a few examples of triplex locomotives that had a third engine under the tender. Both the front and tender engines were low-pressure compounded, though they could be operated simple (high-pressure) for starting off. Other less common variations included the Fairlie locomotive, which had two boilers back-to-back on a common frame, with two separate power bogies.

Duplex types

Duplex locomotives, containing two engines in one rigid frame, were also tried, but were not notably successful. For example, the 4-4-4-4 Pennsylvania Railroad's T1 class, designed for very fast running, suffered recurring and ultimately unfixable slippage problems throughout their careers.[55]

Geared locomotives

For locomotives where a high starting torque and low speed were required, the conventional direct drive approach was inadequate.

"Geared" steam locomotives, such as the Shay, the Climax and the Heisler, were developed to meet this need on industrial, logging, mine and quarry railways. The common feature of these three types was the provision of reduction gearing and a drive shaft between the crankshaft and the driving axles. This arrangement allowed the engine to run at a much higher speed than the driving wheels compared to the conventional design, where the ratio is 1:1.

Cab forward

In the United States on the Southern Pacific Railroad, a series of cab forward locomotives were produced with the cab and the firebox at the front of the locomotive and the tender behind the smokebox, so that the engine appeared to run backwards. This was only possible by using oil-firing. Southern Pacific selected this design to provide air free of smoke for the engine driver to breathe as the locomotive passed through mountain tunnels and snow sheds. Another variation was the Camelback locomotive, with the cab situated halfway along the boiler. In England, Oliver Bulleid developed the SR Leader class locomotive during the nationalisation process in the late 1940s. The locomotive was heavily tested but several design faults (such as coal firing and sleeve valves) meant that this locomotive and the other part-built locomotives were scrapped. The cab-forward design was taken by Bulleid to Ireland, where he moved after nationalisation, where he developed the "turfburner". This locomotive was more successful, but was scrapped due to the dieselisation of the Irish railways.

The only preserved cab forward locomotive is Southern Pacific 4294 in Sacramento, California.

In France, the three Heilmann locomotives were built with a cab forward design.

Steam turbines

Ljungström steam turbine locomotive with air preheater, c.1925 (Swedish National Museum of Science and Technology).

Ljungström steam turbine locomotive with air preheater, c.1925 (Swedish National Museum of Science and Technology).

Steam turbines were created as an attempt to improve the operation and efficiency of steam locomotives.

Experiments with steam turbines using direct-drive and electrical transmissions in various countries proved mostly unsuccessful.[34] The London, Midland and Scottish Railway built the Turbomotive, a largely successful attempt to prove the efficiency of steam turbines.[34] Had it not been for the outbreak of World War II, more may have been built. The Turbomotive ran from 1935 to 1949, when it was rebuilt into a conventional locomotive because many parts required replacement, an uneconomical proposition for a "one-off" locomotive. In the United States, Union Pacific, Chesapeake and Ohio and Norfolk & Western (N&W) railways all built turbine-electric locomotives. The Pennsylvania Railroad (PRR) also built turbine locomotives, but with a direct-drive gearbox. However, all designs failed due to dust, vibration, design flaws or inefficiency at lower speeds. The final one remaining in service was the N&W's, retired in January 1958. The only truly successful design was the TGOJ MT3, used for hauling iron ore from Grängesberg in Sweden to the ports of Oxelösund. Despite functioning correctly, only three were built. Two of them are preserved in working order in museums in Sweden.

Fireless locomotive

Fireless locomotive

Fireless locomotive

In a fireless locomotive the boiler is replaced by a steam accumulator, which is charged with steam (actually water at a temperature well above boiling point, (212 °F (100 °C)) from a stationary boiler. Fireless locomotives were used where there was a high fire risk (e.g. oil refineries), where cleanliness was important (e.g. food-production plants) or where steam is readily available (e.g. paper mills and power stations where steam is either a by-product or is cheaply available). The water vessel ("boiler") is heavily insulated the same as with a fired locomotive. Until all the water has boiled away, the steam pressure does not drop except as the temperature drops.

Another class of fireless locomotive is a compressed-air locomotive.

Mixed power

Heilmann locomotive No. 8001, Chemins de Fer de l'Ouest

Heilmann locomotive No. 8001, Chemins de Fer de l'Ouest

Steam diesel hybrid locomotive

Mixed power locomotives, utilising both steam and diesel propulsion, have been produced in Russia, Britain and Italy.

Electric-steam locomotive

Under unusual conditions (lack of coal, abundant hydroelectricity) some locomotives in Switzerland were modified to use electricity to heat the boiler, making them electric-steam locomotives.[56]

Steam-electric locomotive

A steam-electric locomotive is similar in concept to a diesel-electric locomotive, except that a steam engine instead of a diesel engine is used to drive a generator. Three such locomotives were built by the French engineer Jean Jacques Heilmann in the 1890s.

Categorisation

The Gov. Stanford, a 4-4-0 (using Whyte notation) locomotive typical of 19th-century American practice

The Gov. Stanford, a 4-4-0 (using Whyte notation) locomotive typical of 19th-century American practice

Steam locomotives are categorised by their wheel arrangement.

The two dominant systems for this are the Whyte notation and UIC classification.

The Whyte notation, used in most English-speaking and Commonwealth countries, represents each set of wheels with a number.

These numbers typically represented the number of unpowered leading wheels, followed by the number of driving wheels (sometimes in several groups), followed by the number of un-powered trailing wheels.

For example, a yard engine with only 4 driven wheels would be categorised as a 0-4-0 wheel arrangement. A locomotive with a 4-wheel leading truck, followed by 6 drive wheels, and a 2-wheel trailing truck, would be classed as a 4-6-2. Different arrangements were given names which usually reflect the first usage of the arrangement; for instance, the "Santa Fe" type (2-10-2) is so called because the first examples were built for the Atchison, Topeka and Santa Fe Railway. These names were informally given and varied according to region and even politics.

The UIC classification is used mostly in European countries apart from the United Kingdom.

It designates consecutive pairs of wheels (informally "axles") with a number for non-driving wheels and a capital letter for driving wheels (A=1, B=2, etc.) So a Whyte 4-6-2 designation would be an equivalent to a 2-C-1 UIC designation.

On many railroads, locomotives were organised into classes. These broadly represented locomotives which could be substituted for each other in service, but most commonly a class represented a single design. As a rule classes were assigned some sort of code, generally based on the wheel arrangement. Classes also commonly acquired nicknames, such as "Pugs", representing notable (and sometimes uncomplimentary) features of the locomotives.[57][58]

Performance

Measurement

In the steam locomotive era, two measures of locomotive performance were generally applied.

At first, locomotives were rated by tractive effort, defined as the average force developed during one revolution of the driving wheels at the railhead.[27] This can be roughly calculated by multiplying the total piston area by 85% of the boiler pressure (a rule of thumb reflecting the slightly lower pressure in the steam chest above the cylinder), and dividing by the ratio of the driver diameter over the piston stroke. However, the precise formula is:

.

where d is the bore of the cylinder (diameter) in inches, s is the cylinder stroke, in inches, P is boiler pressure in pounds per square inch, D is the diameter of the driving wheel in inches, and c is a factor that depends on the effective cut-off.[59] In the US, c is usually set at 0.85, but lower on engines that have maximum cutoff limited to 50–75%.

The tractive effort is only the "average" force, as not all effort is constant during the one revolution of the drivers.

At some points of the cycle, only one piston is exerting turning moment and at other points, both pistons are working.

Not all boilers deliver full power at starting, and the tractive effort also decreases as the rotating speed increases.[27]

Tractive effort is a measure of the heaviest load a locomotive can start or haul at very low speed over the ruling grade in a given territory.[27] However, as the pressure grew to run faster goods and heavier passenger trains, tractive effort was seen to be an inadequate measure of performance because it did not take into account speed. Therefore, in the 20th century, locomotives began to be rated by power output. A variety of calculations and formulas were applied, but in general railways used dynamometer cars to measure tractive force at speed in actual road testing.

British railway companies have been reluctant to disclose figures for drawbar horsepower and have usually relied on continuous tractive effort instead.

Relation to wheel arrangement

Whyte classification is indirectly connected to locomotive performance.

Given adequate proportions of the rest of the locomotive, power output is determined by the size of the fire, and for a bituminous coal-fuelled locomotive, this is determined by the grate area.

Modern non-compound locomotives are typically able to produce about 40 drawbar horsepower per square foot of grate.

Tractive force, as noted earlier, is largely determined by the boiler pressure, the cylinder proportions and the size of the driving wheels.

However, it is also limited by the weight on the driving wheels (termed "adhesive weight"), which needs to be at least four times the tractive effort.[34]

The weight of the locomotive is roughly proportional to the power output; the number of axles required is determined by this weight divided by the axleload limit for the trackage where the locomotive is to be used.

The number of driving wheels is derived from the adhesive weight in the same manner, leaving the remaining axles to be accounted for by the leading and trailing bogies.[34] Passenger locomotives conventionally had two-axle leading bogies for better guidance at speed; on the other hand, the vast increase in the size of the grate and firebox in the 20th century meant that a trailing bogie was called upon to provide support. In Europe, some use was made of several variants of the Bissel bogie

As a rule, "shunting engines" (US: switching engines) omitted leading and trailing bogies, both to maximise tractive effort available and to reduce wheelbase. Speed was unimportant; making the smallest engine (and therefore smallest fuel consumption) for the tractive effort was paramount. Driving wheels were small and usually supported the firebox as well as the main section of the boiler. Banking engines (US: helper engines) tended to follow the principles of shunting engines, except that the wheelbase limitation did not apply, so banking engines tended to have more driving wheels. In the US, this process eventually resulted in the Mallet type engine with its many driven wheels, and these tended to acquire leading and then trailing bogies as guidance of the engine became more of an issue.

As locomotive types began to diverge in the late 19th century, freight engine designs at first emphasised tractive effort, whereas those for passenger engines emphasised speed.

Over time, freight locomotive size increased, and the overall number of axles increased accordingly; the leading bogie was usually a single axle, but a trailing truck was added to larger locomotives to support a larger firebox that could no longer fit between or above the driving wheels.

Passenger locomotives had leading bogies with two axles, fewer driving axles, and very large driving wheels in order to limit the speed at which the reciprocating parts had to move.

In the 1920s, the focus in the United States turned to horsepower, epitomised by the "super power" concept promoted by the Lima Locomotive Works, although tractive effort was still the prime consideration after World War I to the end of steam.

Goods trains were designed to run faster, while passenger locomotives needed to pull heavier loads at speed.

This was achieved by increasing the size of grate and firebox without changes to the rest of the locomotive, requiring the addition of a second axle to the trailing truck.

Freight 2-8-2 s became 2-8-4 s while 2-10-2 s became 2-10-4 s. Similarly, passenger 4-6-2 s became 4-6-4 s. In the United States this led to a convergence on the dual-purpose 4-8-4 and the 4-6-6-4 articulated configuration, which was used for both freight and passenger service.[60] Mallet locomotives went through a similar transformation, evolving from bank engines into huge mainline locomotives with much larger fireboxes; their driving wheels were also increased in size in order to allow faster running.

Manufacture

Most manufactured classes

Esh 4444 0-10-0 at Varshavsky Rail Terminal, St. Petersburg

Esh 4444 0-10-0 at Varshavsky Rail Terminal, St. Petersburg

The most-manufactured single class of steam locomotive in the world is the 0-10-0 Russian locomotive class E steam locomotive with around 11,000 produced both in Russia and other countries such as Czechoslovakia, Germany, Sweden, Hungary and Poland. The Russian locomotive class O numbered 9,129 locomotives, built between 1890 and 1928. Around 7,000 units were produced of the German DRB Class 52 2-10-0 Kriegslok.

In Britain, 863 of the GWR 5700 class were built, and 943 of the DX class of the London and North Western Railway - including 86 engines built for the Lancashire and Yorkshire Railway.[61]

United Kingdom

Great Western Railway No. 6833 Calcot Grange, a 4-6-0 Grange class steam locomotive at Bristol Temple Meads station. Note the Belpaire (square-topped) firebox.

Great Western Railway No. 6833 Calcot Grange, a 4-6-0 Grange class steam locomotive at Bristol Temple Meads station. Note the Belpaire (square-topped) firebox.

Before the 1923 Grouping Act, production in the UK was mixed. The larger railway companies built locomotives in their own workshops, with the smaller ones and industrial concerns ordering them from outside builders. A large market for outside builders existed due to the home-build policy exercised by the main railway companies. An example of a pre-grouping works was the one at Melton Constable, which maintained and built some of the locomotives for the Midland and Great Northern Joint Railway. Other works included one at Boston (an early GNR building) and Horwich works.

Between 1923 and 1947, the "Big Four" railway companies (the Great Western Railway, the London, Midland and Scottish Railway, the London and North Eastern Railway and the Southern Railway) all built most of their own locomotives, only buying locomotives from outside builders when their own works were fully occupied (or as a result of government-mandated standardisation during wartime).[62]

From 1948, British Railways allowed the former "Big Four" companies (now designated as "Regions") to continue to produce their own designs, but also created a range of standard locomotives which supposedly combined the best features from each region. Although a policy of "dieselisation" was adopted in 1955, BR continued to build new steam locomotives until 1960, with the final engine being named Evening Star

Some independent manufacturers produced steam locomotives for a few more years, with the last British-built industrial steam locomotive being constructed by Hunslet in 1971. Since then, a few specialised manufacturers have continued to produce small locomotives for narrow gauge and miniature railways, but as the prime market for these is the tourist and heritage railway sector, the demand for such locomotives is limited. In November 2008, a new build main line steam locomotive, 60163 Tornado

Sweden

In the 19th and early 20th centuries, most Swedish steam locomotives were manufactured in Britain.

Later, however, most steam locomotives were built by local factories including NOHAB in Trollhättan and ASJ in Falun. One of the most successful types was the class "B" (4-6-0), inspired by the Prussian class P8. Many of the Swedish steam locomotives were preserved during the Cold War in case of war. During the 1990s, these steam locomotives were sold to non-profit associations or abroad, which is why the Swedish class B, class S (2-6-4) and class E2 (2-8-0) locomotives can now be seen in Britain, the Netherlands, Germany and Canada.

United States

California Western Railroad No. 45 (builder No. 58045), built by Baldwin in 1924, is a 2-8-2 Mikado locomotive. It is still in use today on the Skunk Train.

California Western Railroad No. 45 (builder No. 58045), built by Baldwin in 1924, is a 2-8-2 Mikado locomotive. It is still in use today on the Skunk Train.

Locomotives for American railroads were nearly always built in the United States with very few imports, except in the earliest days of steam engines.

This was due to the basic differences of markets in the United States which initially had many small markets located large distances apart, in contrast to Europe's higher density of markets.

Locomotives that were cheap and rugged and could go large distances over cheaply built and maintained tracks were required.

Once the manufacture of engines was established on a wide scale there was very little advantage to buying an engine from overseas that would have to be customised to fit the local requirements and track conditions.

Improvements in engine design of both European and US origin were incorporated by manufacturers when they could be justified in a generally very conservative and slow-changing market.

With the notable exception of the USRA standard locomotives built during World War I, in the United States, steam locomotive manufacture was always semi-customised. Railroads ordered locomotives tailored to their specific requirements, though some basic design features were always present. Railroads developed some specific characteristics; for example, the Pennsylvania Railroad and the Great Northern Railway had a preference for the Belpaire firebox.[63] In the United States, large-scale manufacturers constructed locomotives for nearly all rail companies, although nearly all major railroads had shops capable of heavy repairs and some railroads (for example, the Norfolk and Western Railway and the Pennsylvania Railroad, which had two erecting shops) constructed locomotives entirely in their own shops.[64][65] Companies manufacturing locomotives in the US included Baldwin Locomotive Works, American Locomotive Company (Alco), and Lima Locomotive Works. Altogether, between 1830 and 1950, over 160,000 steam locomotives were built in the United States, with Baldwin accounting for the largest share, nearly 70,000.[66]

Steam locomotives required regular and, compared to a diesel-electric engine, frequent service and overhaul (often at government-regulated intervals in Europe and the US).

Alterations and upgrades regularly occurred during overhauls.

New appliances were added, unsatisfactory features removed, cylinders improved or replaced.

Almost any part of the locomotive, including boilers, was replaced or upgraded.

When service or upgrades got too expensive the locomotive was traded off or retired.

On the Baltimore and Ohio Railroad two 2-10-2 locomotives were dismantled; the boilers were placed onto two new Class T 4-8-2] locomotives and the residual wheel machinery made into a pair of Class U 0-10-0 switchers with new boilers. Union Pacific's fleet of 3-cylinder 4-10-2 engines were converted into two-cylinder engines in 1942, because of high maintenance problems.

Australia

The 200th steam locomotive built by Clyde Engineering (TF 1164) from the Powerhouse Museum collection

The 200th steam locomotive built by Clyde Engineering (TF 1164) from the Powerhouse Museum collection

In Sydney, Clyde Engineering and the workshops in Eveleigh both built steam locomotives for the New South Wales Government Railways. These include the C38 class 4-6-2; the first five were built at Clyde with streamlining, the other 25 locomotives were built at Eveleigh (13) and Cardiff Workshops (12) near Newcastle. In Queensland, steam locomotives were locally constructed by Walkers. Similarly, the South Australian state government railways also manufactured steam locomotives locally at Islington Railway Workshops in Adelaide. Victorian Railways constructed most of their locomotives at their Newport Workshops and in Bendigo, while in the early days locomotives were built at the Phoenix Foundry in Ballarat. Locomotives constructed at the Newport shops ranged from the nA class 2-6-2 T built for the narrow gauge, up to the H class 4-8-4 – the largest conventional locomotive ever to operate in Australia, weighing 260 tons. However, the title of largest locomotive ever used in Australia goes to the 263-ton NSWGR AD60 class 4-8-4+4-8-4 Garratt,[67] built by Beyer-Peacock in the United Kingdom. Most steam locomotives used in Western Australia were built in the United Kingdom, though some examples were designed and built locally at the Western Australian Government Railways' Midland Railway Workshops. The 10 WAGR S class locomotives (introduced in 1943) were the only class of steam locomotive to be wholly conceived, designed and built in Western Australia,[68] while the Midland workshops notably participated in the Australia-wide construction program of Australian Standard Garratts – these wartime locomotives were built at Midland in Western Australia, Clyde Engineering in New South Wales, Newport in Victoria and Islington in South Australia and saw varying degrees of service in all Australian states.[68]

The end of steam in general use

The introduction of electric locomotives around the turn of the 20th century and later diesel-electric locomotives spelled the beginning of a decline in the use of steam locomotives, although it was some time before they were phased out of general use.[69] As diesel power (especially with electric transmission) became more reliable in the 1930s, it gained a foothold in North America.[70] The full transition away from steam power in North America took place during the 1950s. In continental Europe, large-scale electrification had replaced steam power by the 1970s. Steam was a familiar technology, adapted well to local facilities, and also consumed a wide variety of fuels; this led to its continued use in many countries until the end of the 20th century.

Steam engines have considerably less thermal efficiency than modern diesels, requiring constant maintenance and labour to keep them operational.[71] Water is required at many points throughout a rail network, making it a major problem in desert areas, as are found in some regions of the United States, Australia and South Africa.

In places where water is available, it may be hard, which can cause "scale" to form, composed mainly of calcium carbonate, magnesium hydroxide and calcium sulfate. Calcium and magnesium carbonates tend to be deposited as off-white solids on the inside the surfaces of pipes and heat exchangers. This precipitation is principally caused by thermal decomposition of bicarbonate ions but also happens in cases where the carbonate ion is at saturation concentration.[72] The resulting build-up of scale restricts the flow of water in pipes. In boilers, the deposits impair the flow of heat into the water, reducing the heating efficiency and allowing the metal boiler components to overheat.

The reciprocating mechanism on the driving wheels of a two-cylinder single expansion steam locomotive tended to pound the rails (see hammer blow), thus requiring more maintenance. Raising steam from coal took a matter of hours, and created serious pollution problems. Coal-burning locomotives required fire cleaning and ash removal between turns of duty.[73] Diesel or electric locomotives, by comparison, drew benefit from new custom-built servicing facilities. The smoke from steam locomotives was also deemed objectionable; the first electric and diesel locomotives were developed in response to smoke abatement requirements,[74] although this did not take into account the high level of less-visible pollution in diesel exhaust smoke, especially when idling. In some countries, however, power for electric locomotives is derived from steam generated in power stations, which are often run by coal.

United States

Northwestern Steel and Wire locomotive number 80, July 1964

Northwestern Steel and Wire locomotive number 80, July 1964

The first diesel locomotive appeared on the Central Railroad of New Jersey in 1925 and on the New York Central in 1927.

Since then, diesel locomotives began to appear in mainline service in the United States in the mid-1930s.[75] The diesel engines reduced maintenance costs dramatically, while increasing locomotive availability.

On the Chicago, Rock Island and Pacific Railroad the new units delivered over 350,000 miles (560,000 km) a year, compared with about 120,000–150,000 miles (190,000–240,000 km) for a mainline steam locomotive.[34] World War II delayed dieselisation in the US. In 1949 the Gulf, Mobile and Ohio Railroad became the first large mainline railroad to convert completely to diesel locomotives, and Life Magazine ran an article on 5 December 1949 titled "The GM&O puts all its steam engines to torch, becomes first major US railroad to dieselize 100%".[76] The Susquehanna was one of the earliest railroads in America to fully dieselize by 1947 and retiring their steam locomotives by 1949. The final 2-8-4 Berkshire built was Nickle Plate Road's 779 built in 1949. The last steam locomotive manufactured for general service was a Norfolk and Western 0-8-0, built in its Roanoke shops in December, 1953.[77] In Spring of 1960, Norfolk and Western Y6b 2190 and S1 290 doused their fires for the last time in a Williamson, West Virginia roundhouse. 1960 is normally considered the final year of regular Class 1 main line standard gauge steam operation in the United States, with operations on the Grand Trunk Western, Illinois Central, Norfolk and Western and Duluth Missabe and Iron Range Railroads,[78] as well as Canadian Pacific operations in Maine.[79]

However, the Grand Trunk Western used some steam power for regular passenger trains until 1961, the last instance of this occurring unannounced on trains 56 and 21 in the Detroit area on 20 September 1961 with 4-8-4 6323, one day before its flue time expired.[80] The last steam-powered standard-gauge regular freight service by a class 1 railroad was on the isolated Leadville branch of the Colorado and Southern (Burlington Lines) 11 October 1962 with 2-8-0 641.[81] Narrow-gauge steam was used for freight service by the Denver and Rio Grande Western on the 250-mile (400 km) run from Alamosa, Colorado to Farmington, New Mexico via Durango until service ceased on 6 December 1968.[81] The Union Pacific is the only Class I railroad in the US to have never completely dieselised, at least nominally. It has always had at least one operational steam locomotive, Union Pacific 844, on its roster.[82] Some US shortlines continued steam operations into the 1960s, and the Northwestern Steel and Wire mill in Sterling, Illinois, continued to operate steam locomotives until December 1980.[83] Two surviving sections of the Denver and Rio Grande Western's Alamosa to Durango narrow-gauge line mentioned above, now operating separately as the Cumbres and Toltec Scenic Railroad and the Durango and Silverton Narrow Gauge Railroad, continue to use steam locomotives and operate as tourist railroads.

By the end of the 20th century, around 1,800 of the over 160,000 steam locomotives built in the United States between 1830 and 1950 still existed, but with only a few still in operating condition.[66]

Britain

British industrial steam in the 1970s: a Robert Stephenson & Hawthorn 0-4-0ST shunting coal wagons at Agecroft Power Station, Pendlebury in 1976

British industrial steam in the 1970s: a Robert Stephenson & Hawthorn 0-4-0ST shunting coal wagons at Agecroft Power Station, Pendlebury in 1976

Trials of diesel locomotives and railcars began in Britain in the 1930s but made only limited progress. One problem was that British diesel locomotives were often seriously under-powered compared with the steam locomotives against which they were competing. Moreover, labour and coal were relatively cheap.

After 1945, problems associated with post-war reconstruction and the availability of cheap domestic-produced coal kept steam in widespread use throughout the two following decades.

However the ready availability of cheap oil led to new dieselisation programmes from 1955, and these began to take full effect from around 1962.

Towards the end of the steam era, steam motive power fell into a state of disrepair.

The last steam locomotive built for mainline British Railways was BR Standard Class 9F 92220 Evening Star, which was completed in March 1960. The last steam-hauled service trains on the British Railways network ran in 1968, but the use of steam locomotives in British industry continued into the 1980s.[84].%20Ian%20Allan.%201994.%20p.%C2%A03.%20ISBN%C2%A00-]]n June 1975, there were still 41 locations where steam was in regular use, and many more where engines were maintained in reserve in case of diesel failures..%20Bradfo]]radually, the decline of the ironstone quarries, steel, coal mining and shipbuilding industries – and the plentiful supply of redundant British Rail diesel shunters as replacements – led to the end of steam power for commercial uses..%20Ian%20Allan.%201994.%20p.%C2%A03.%20ISBN%C2%A00-]]

Several hundred rebuilt and preserved steam locomotives are still used on preserved volunteer-run 'heritage' railway lines in the UK.

A proportion of the locomotives are regularly used on the national rail network by private operators where they run special excursions and touring trains. A new steam locomotive, the LNER Peppercorn Class A1 60163 Tornado has been built (began service in 2009), and more are in the planning stage.

Germany

The VEB Lokomotivbau Karl Marx Babelsberg (LKM) built this steam locomotive, No.

The VEB Lokomotivbau Karl Marx Babelsberg (LKM) built this steam locomotive, No.

Narrow-gauge Chiemsee-Bahn Railway steam locomotive in southern Bavaria

Narrow-gauge Chiemsee-Bahn Railway steam locomotive in southern Bavaria

After the Second World War, Germany was divided into the Federal Republic of Germany, with the Deutsche Bundesbahn (founded in 1949) as the new state-owned railway, and the German Democratic Republic (GDR), where railway service continued under the old pre-war name Deutsche Reichsbahn.

For a short period after the war, both the Bundesbahn (DB) and Reichsbahn (DR) still placed orders for new steam locomotives. They needed to renew the rolling stock, mostly with steam locomotives designed for accelerated passenger trains. Many of the existing predecessors of those types of steam locomotives in Germany had been lost in the battles or simply reached the end of their lifetime, such as the famous Prussian P 8. There was no need for new freight train engines, however, because thousands of the Classes 50 and 52 had been built during the Second World War.

Because the concept of the so-called "Einheitslokomotiven", the standard locomotives built in the 1920s and 1930s, and still in wide use, was already outdated in the pre-war era, a whole new design for the new steam locomotives was developed by DB and DR, called "Neubaudampflokomotiven" (new-build steam locomotives). The steam locomotives made by the DB in West Germany, under the guidance of Friedrich Witte, represented the latest evolution in steam locomotive construction including fully welded frames, high-performance boilers and roller bearings on all moving parts. Although these new DB classes (10, 23, 65, 66 and 82) were said to be among the finest and best-performing German steam locomotives ever built, none of them exceeded 25 years in service. The last one, 23 105 (still preserved), went into service in 1959.

The Democratic Republic in East Germany began a similar procurement plan, including engines for a narrow gauge.

The DR-Neubaudampflokomotiven were the classes 23.10, 25.10, 50.40, 65.10, 83.10, 99.23-24 and 99.77-79. The purchase of new-build steam locomotives by the DR ended in 1960 with 50 4088, the last standard-gauge steam locomotive built in Germany. No locomotive of the classes 25.10 and 83.10 was in service for more than 17 years. The last engines of the classes 23.10, 65.10 and 50.40 were retired in the late 1970s, with some units older than 25 years. Some of the narrow-gauge locomotives are still in service for tourism purposes. Later, during the early 1960s, the DR developed a way to reconstruct older locomotives to conform with contemporary requirements. The high-speed locomotive 18 201 and the class 01.5 are examples of designs from that programme.

Around 1960, the Bundesbahn in West Germany began to phase out all steam-hauled trains over a period of ten years, but still had about 5,000 of them in running condition.

Even though DB were very assertive in continuing the electrification on the main lines – in 1963 they reached 5,000 km (3,100 mi) of electrified routes – and dieselisation with new developed stock, they had not completely removed steam locomotives within the ten-year goal.

In 1972, the Hamburg and Frankfurt departments of the DB rail networks became the first to no longer operate steam locomotives in their areas.

The remaining steam locomotives began to gather in rail yards in Rheine, Tübingen, Hof, Saarbrücken, Gelsenkirchen-Bismarck and others, which soon became popular with rail enthusiasts.

In 1975, DB's last steam express train made its final run on the Emsland-Line from Rheine to Norddeich in the upper north of Germany.

Two years later, on 26 October 1977, the heavy freight engine 44 903 (computer-based new number 043 903-4) made her final run at the same railway yard. After this date, no regular steam service took place on the network of the DB until their privatisation in 1994.

In the GDR, the Reichsbahn continued steam operation until 1988 on standard gauge tracks for economic and political reasons, despite strong efforts to phase out steam being made since the 1970s.

The last locomotives in service where of the classes 50.35 and 52.80, which hauled goods trains on rural main and branch lines. Unlike the DB, there was never a large concentration of steam locomotives in just a few yards in the East, because throughout the DR network the infrastructure for steam locomotives remained intact until the end of the GDR in 1990. This was also the reason that there was never a strict "final cut" at steam operations, with the DR continuing to use steam locomotives from time to time until they merged with the DB in 1994.

On their narrow-gauge lines, however, steam locomotives continued to be used on a daily year-round basis, mainly for tourist reasons.

The largest of these is the Harzer Schmalspurbahn (Harz Narrow Gauge Railways) network in the Harz Mountains, but the lines in Saxony and on the coast of the Baltic Sea are also notable. Even though all former DR narrow-gauge railways have undergone privatisation, steam operations are still commonplace there.

Russia

P36-0031, the last steam passenger locomotive built in Russia, on a heritage run during Expo 1520 exhibition in Scherbinka, Moscow Oblast.

P36-0031, the last steam passenger locomotive built in Russia, on a heritage run during Expo 1520 exhibition in Scherbinka, Moscow Oblast.

In the USSR, although the first mainline diesel-electric locomotive was built in USSR in 1924, the last steam locomotive (model П36, serial number 251) was built in 1956; it is now in the Museum of Railway Machinery at the former Warsaw Rail Terminal, Saint Petersburg. In the European part of the USSR, almost all steam locomotives were replaced by diesel and electric locomotives in the 1960s; in Siberia and Central Asia, state records verify that L-class 2-10-0 s and LV-class 2-10-2 s were not retired until 1985. Until 1994, Russia had at least 1,000 steam locomotives stored in operable condition in case of "national emergencies".[86][87][88]

China

China Railways QJ (前进, "Qiánjìn") heavy freight steam locomotive, kept in China Industrial Museum

China Railways QJ (前进, "Qiánjìn") heavy freight steam locomotive, kept in China Industrial Museum

China Railways SY industrial steam locomotive, kept in front of Dalian Modern Museum

China Railways SY industrial steam locomotive, kept in front of Dalian Modern Museum

China continued to build mainline steam locomotives until the late 20th century, even building a few examples for American tourist operations.

China was the last main-line user of steam locomotives, with use ending officially on the Ji-Tong line at the end of 2005.

Some steam locomotives are as of 2019 still in use in industrial operations in China.

Some coal and other mineral operations maintain an active roster of China Railways JS (建设, "Jiànshè") or China Railways SY (上游, "Shàngyóu") steam locomotives bought secondhand from China Railway. The last steam locomotive built in China was 2-8-2 SY 1772, finished in 1999. As of 2011, at least six Chinese steam locomotives exist in the United States – 3 QJs bought by the Rail Development Corporation (Nos. 6988 and 7081 for IAIS and No. 7040 for R.J. Corman), a JS bought by the Boone and Scenic Valley Railroad, and two SYs. No. 142 (formerly No. 1647) is owned by the NYSW for tourist operations, re-painted and modified to represent a 1920s-era US locomotive; No. 58 is operated by the Valley Railroad and has been modified to represent New Haven Railroad number 3025.

Japan

The steam train Amamiya-21 in Hokkaido

The steam train Amamiya-21 in Hokkaido

Owing to the destruction of most of the nation's infrastructure during the Second World War, and the cost of electrification and dieselisation, new steam locomotives were built in Japan until 1960.

The number of Japanese steam locomotives reached a peak of 5,958 in 1946.[89]

With the booming post-war Japanese economy, steam locomotives were gradually withdrawn from main line service beginning in the early 1960s, and were replaced with diesel and electric locomotives.

They were relegated to branch line and sub-main line services for several more years until the late 1960s, when electrification and dieselisation began to increase.

From 1970 onwards, steam locomotion was gradually abolished on the JNR:

  • Shikoku (April 1970)

  • Kanto area (Tokyo) (October 1970),

  • Kinki (Osaka, Kyoto area) (September 1973)

  • Chubu (Nagoya, Nagano area) (April 1974),

  • Tohoku (November 1974),

  • Chugoku (Yamaguchi area) (December 1974)

  • Kyushu (January 1975)

  • Hokkaido (March 1976)

The last steam passenger train, pulled by a C57-class locomotive built in 1940, departed from Muroran railway station to Iwamizawa on 14 December 1975. It was then officially retired from service, dismantled and sent to the Tokyo Transportation Museum, where it was inaugurated as an exhibit on 14 May 1976. It was moved to the Saitama Railway Museum in early 2007. The last Japanese main line steam train, D51-241, a D51-class locomotive built in 1939, left Yubari railway station on 24 December 1975. That same day, all steam main line service ended. D51-241 was retired on 10 March 1976, and destroyed in a depot fire a month later, though some parts were preserved.

On 2 March 1976, the only steam locomotive still operating on the JNR, 9600-39679, a 9600-class locomotive built in 1920, made its final journey from Oiwake railway station, ending 104 years of steam locomotion in Japan.[90]

South Korea

The first steam locomotive in South Korea (Korea at the time) was the Moga (Mogul) 2-6-0, which first ran on 9 September 1899 on the Gyeong-In Line. Other South Korean steam locomotive classes include the Sata, Pureo, Ame, Sig, Mika (USRA Heavy Mikado), Pasi (USRA Light Pacific), Hyeogi (Narrow gauge), Class 901, Mateo, Sori and Tou. Used until 1967, the Pasi 23 is now in the Railroad Museum[91].

India

New steam locomotives were built in India well into the early 1970s; the last broad-gauge steam locomotive to be manufactured, Last Star, a WG-class locomotive (No. 10560) was built in June 1970, followed by the last meter-gauge locomotive in February 1972.[92] Steam locomotion continued to predominate on Indian Railways through the early 1980s; in fiscal year 1980–81, there were 7,469 steam locomotives in regular service, compared to 2,403 diesels and 1,036 electrics.[93] Subsequently, steam locomotion was gradually phased out from regular service, beginning with the Southern Railway Zone in 1985; the number of diesel and electric locomotives in regular service surpassed the number of steam locomotives in service in 1987–88.[94] All regular broad-gauge steam service in India ended in 1995, with the final run made from Jalandhar to Ferozpur on 6 December.[95] The last meter-gauge and narrow-gauge steam locomotives in regular service were retired in 2000.[94] After being withdrawn from service, most steam locomotives were scrapped, though some have been preserved in various railway museums. The only steam locomotives remaining in regular service are on India's heritage lines.[93][96]

South Africa

In South Africa, the last new steam locomotives purchased were 2-6-2+2-6-2 Garratts from Hunslet Taylor for the 2-foot (610 mm) gauge lines in 1968.[97] Another class 25NC locomotive, No.

3450, nicknamed the "Red Devil" because of its colour scheme, received modifications including a prominent set of double side-by-side exhaust stacks.

In southern Natal, two former South African Railway 2-foot (610 mm) gauge NGG16 Garratts operating on the privatised Port Shepstone and Alfred County Railway (ACR) received some L.D. Porta modifications in 1990, becoming a new NGG16A class.[98]

By 1994 almost all commercial steam locomotives were put out of service, although many of them are preserved in museums or at railway stations for public viewing.

Today only a few privately owned steam locomotives are still operating in South Africa, including the ones being used by the 5-star luxury train Rovos Rail, and the tourist trains Outeniqua Tjoe Choo, Apple Express and (until 2008) Banana Express

Other countries

B 5112 before being reactivated in Ambarawa Railway Museum, Indonesia

B 5112 before being reactivated in Ambarawa Railway Museum, Indonesia

In other countries, the dates for conversion from steam to diesel and electric power varied.

On the contiguous North American standard gauge network across Canada, Mexico and the United States, the use of standard gauge main line steam locomotion using 4-8-4 s built in 1946 for handling freight between Mexico City and Irapuato lasted until 1968.[99] The Mexican Pacific line, a standard gauge short line in the state of Sinaloa, was reported in August 1987[100] to still be using steam, with a roster of one 4-6-0, two 2-6-2 s and one 2-8-2.

By March 1973 in Australia, steam was no longer used for industrial purposes.

Diesel locomotives were more efficient and the demand for manual labour for service and repairs was less than for steam.

Cheap oil also had cost advantages over coal.

Regular scheduled steam services operated from 1998 until 2004 on the West Coast Railway.[101]

In New Zealand's North Island, steam traction ended in 1968 when AB 832 (now stored at the Glenbrook Vintage Railway, Auckland, but owned by MOTAT) hauled a Farmers Trading Company "Santa Special" from Frankton Junction to Claudelands. In the South Island, due to the inability of the new DJ class diesel locomotives to provide in-train steam heating, steam operations continued using the J and JA class 4-8-2 tender locomotives on the overnight Christchurch-Invercargill expresses, Trains 189/190, until 1971.[102] By this time sufficient FS steam-heating vans were available, thus allowing the last steam locomotives to be withdrawn. Two AB class 4-6-2 tender locomotives, AB 778 and AB 795, were retained at Lyttelton to steam-heat the coaches for the Boat Trains between Christchurch and Lyttelton, until they were restored for the Kingston Flyer tourist train in 1972.

In Finland, the first diesels were introduced in the mid-1950s, superseding steam locomotives by the early 1960s.

State railways (VR) operated steam locomotives until 1975.

In the Netherlands, the first electric trains appeared in 1908, making the trip from Rotterdam to The Hague.

The first diesels were introduced in 1934.

As electric and diesel trains performed so well, the decline of steam started just after World War II, with steam traction ending in 1958.

In Poland, on non-electrified tracks, steam locomotives were superseded almost entirely by diesels by the 1990s.

A few steam locomotives, however, operate in the regularly scheduled service from Wolsztyn. After ceasing on 31 March 2014, regular service resumed out of Wolsztyn on 15 May 2017 with weekday runs to Leszno. This operation is maintained as a means of preserving railway heritage and as a tourist attraction. Apart from that, numerous railway museums and heritage railways (mostly narrow gauge) own steam locomotives in working condition.

In France, steam locomotives have not been used for commercial services since 24 September 1975.[103]

In Spain, the first electric trains were introduced en 1911, and the first diesels in 1935, just one year before the Spanish Civil War. National railway company (Renfe) operated steam locomotives until 9 June 1975.[104]

In Bosnia and Herzegovina, some steam locomotives are still used for industrial purposes, for example at the coal mine in Banovići[105] and ArcelorMittal factory in Zenica.[106]

In Paraguay, wood-burning steam locomotives operated until 1999.[107][108][109]

In Thailand, all steam locomotives were withdrawn from service between the late 1960s and early 1970s.

Most were scrapped in 1980.

However, there are about 20 to 30 locomotives preserved for exhibit in important or end-of-the-line stations throughout the country.

During the late 1980s, six locomotives were restored to running condition.

Most are JNR-built 4-6-2 steam locomotives with the exception of a single 2-8-2.

Indonesia has also used steam locomotives since 1876.

The last batch of E10 0-10-0 RT rack tank locomotives were purchased in 1967 (Kautzor, 2010) from Nippon Sharyo. The last locomotives – the D 52 class, manufactured by the German firm Krupp in 1954 – operated until 1994, when they were replaced by diesel locomotives. Indonesia also purchased the last batch of mallet locomotives from Nippon Sharyo, to be used on the Aceh Railway. In Sumatra Barat (West Sumatra) and Ambarawa some rack railways (with a maximum gradient of 6% in mountainous areas) are now operated for tourism only. There are two rail museums in Indonesia, Taman Mini and Ambarawa (Ambarawa Railway Museum).[110]

Pakistan Railways still has a regular steam locomotive service; a line operates in the North-West Frontier Province and in Sindh. It has been preserved as a "nostalgia" service for tourism in exotic locales, and is specifically advertised as being for "steam buffs".[111]

In Sri Lanka, one steam locomotive is maintained for private service to power the Viceroy Special

Revival

60163 Tornado, a new express locomotive built for the British main line, completed in 2008

60163 Tornado, a new express locomotive built for the British main line, completed in 2008

Reading and Northern Railroad number 425 being readied in Pennsylvania, US, for the daily tourist train in 1993.

Reading and Northern Railroad number 425 being readied in Pennsylvania, US, for the daily tourist train in 1993.

Er 774 38 0-10-0 on Steam Special Train in Moscow 11 July 2010

Er 774 38 0-10-0 on Steam Special Train in Moscow 11 July 2010

2-6-0 type "N3" steam locomotive built by Beyer Peacock in 1910 and restored 2005–2007 by the Uruguayan Railfan Association (AUAR).

2-6-0 type "N3" steam locomotive built by Beyer Peacock in 1910 and restored 2005–2007 by the Uruguayan Railfan Association (AUAR).

South African Class 26, the Red Devil

South African Class 26, the Red Devil

Dramatic increases in the cost of diesel fuel prompted several initiatives to revive steam power.[112][113] However none of these has progressed to the point of production and, as of the early 21st century, steam locomotives operate only in a few isolated regions of the world and in tourist operations.

As early as 1975, railway enthusiasts in the United Kingdom began building new steam locomotives.

That year, Trevor Barber completed his 2 ft (610 mm) gauge locomotive Trixie which ran on the Meirion Mill Railway.[114] From the 1990s onwards, the number of new builds being completed rose dramatically with new locos completed by the narrow-gauge Ffestiniog and Corris railways in Wales. The Hunslet Engine Company was revived in 2005, and began building steam locomotives on a commercial basis.[115] A standard-gauge LNER Peppercorn Pacific "Tornado" was completed at Hopetown Works, Darlington, and made its first run on 1 August 2008.[116][117] It entered main line service later in 2008, to great public acclaim. Demonstration trips in France and Germany have been planned.[118] As of 2009 over half-a-dozen projects to build working replicas of extinct steam engines are going ahead, in many cases using existing parts from other types to build them. Examples include BR Class 6MT Hengist,[119] BR Class 3MT No. 82045, BR Class 2MT No. 84030,[120] Brighton Atlantic Beachy Head,[121] the LMS "Patriot 45551 The Unknown Warrior" project, GWR "47xx 4709, BR" Class 6 72010 Hengist, GWR *SaintCounty]]*ed new build projects are further complimented by the new build Pennsylvania Railroad T1 class No. 5550 project in the United States, which will attempt to surpass the speed record held by the LNER Class A4 4468 Mallard when completed.[122]

In 1980, American financier Ross Rowland established American Coal Enterprises to develop a modernised coal-fired steam locomotive. His ACE 3000 concept attracted considerable attention, but was never built.[123][124]

In 1998, in his book The Red Devil and Other Tales from the Age of Steam,[125] David Wardale put forward the concept of a high-speed high-efficiency "Super Class 5 4-6-0" locomotive for future steam haulage of tour trains on British main lines. The idea was formalised in 2001 by the formation of 5AT Project dedicated to developing and building the 5AT Advanced Technology Steam Locomotive, but it never received any major railway backing.

Locations where new builds are taking place include:

  • GWR 1014 County of Glamorgan & GWR 2999 Lady of Legend, both being built at Didcot Railway Centre.

  • GWR 6880 Betton Grange, GWR 4709 & LMS 45551 The Unknown Warrior, all being built at Llangollen Railway.

  • LNER 2007 Prince of Wales, Darlington Locomotive Works.

  • LNER 2001 Cock O' The North, Doncaster.

  • PRR 5550, Pottstown, Pennsylvania[122]

  • BR 72010 Hengist, Great Central Railway.

  • BR 77021, TBA.

  • BR 82045, Severn Valley Railway.

  • BR 84030 & LBSCR 32424 Beachy Head, both being built at Bluebell Railway.

  • MS&LR/GCR 567, Ruddington Great Central Railway, Northern Section.

  • VR V499, Victoria, Australia.

In 2012, the Coalition for Sustainable Rail[126] project was started in the US with the goal of creating a modern higher-speed steam locomotive, incorporating the improvements proposed by Livio Dante Porta and others, and using torrefied biomass as solid fuel. The fuel has been recently developed by the University of Minnesota in a collaboration between the university's Institute on the Environment (IonE) and Sustainable Rail International (SRI), an organisation set up to explore the use of steam traction in a modern railway setup. The group have received the last surviving (but non-running) ATSF 3460 class steam locomotive (No. 3463) via donation from its previous owner in Kansas, the Great Overland Station Museum. They hope to use it as a platform for developing "the world's cleanest, most powerful passenger locomotive", capable of speeds up to 130 mph (210 km/h). Named "Project 130", it aims to break the world steam-train speed record set by LNER Class A4 4468 Mallard in the UK at 126 mph (203 km/h). However, any demonstration of the project's claims is yet to be seen.

In Germany, a small number of fireless steam locomotives are still working in industrial service, e.g. at power stations, where an on-site supply of steam is readily available.

The Swiss company Dampflokomotiv- und Maschinenfabrik DLM AG delivered eight steam locomotives to rack railways in Switzerland and Austria between 1992 and 1996. Four of them are now the main traction on the Brienz Rothorn Bahn; the four others were built for the Schafbergbahn in Austria, where they run 90% of the trains.

The same company also rebuilt a German DR Class 52.80 2-10-0 locomotive to new standards with modifications such as roller bearings, light oil firing and boiler insulation.[127]

Climate change

The future use of steam locomotives in the United Kingdom is in doubt because of government policy on climate change. The Heritage Railway Association is working with the All-Party Parliamentary Group on Heritage Rail in an effort to continue running steam locomotives on coal. [128]

The state quarter representing Utah, depicting the golden spike ceremony

The state quarter representing Utah, depicting the golden spike ceremony

The Biedermeier Period coin featuring a steam locomotive

The Biedermeier Period coin featuring a steam locomotive

Steam locomotives have been present in popular culture since the 19th century.

Folk songs from that period including "I've Been Working on the Railroad" and the "Ballad of John Henry" are a mainstay of American music and culture.

Many steam locomotive toys have been made, and railway modelling is a popular hobby.

Steam locomotives are often portrayed in fictional works, notably The Railway Series by the Rev W. V. Awdry, The Little Engine That Could by Watty Piper, The Polar Express by Chris Van Allsburg, and the Hogwarts Express from J.K. Rowling's Harry Potter series. They have also been featured in many children's television shows, such as Thomas the Tank Engine and Friends, based on characters from the books by Awdry, and Ivor the Engine created by Oliver Postgate.

The Hogwarts Express also appears in the Harry Potter series of films, portrayed by GWR 4900 Class 5972 Olton Hall in a special Hogwarts livery. The Polar Express appears in the animated movie of the same name.

An elaborate, themed funicular Hogwarts Express ride is featured in the Universal Orlando Resort in Florida, connecting the Harry Potter section of Universal Studios with the Islands of Adventure theme park.

The Polar Express is recreated on many heritage railroads in the United States, including the North Pole Express pulled by the Pere Marquette 1225 locomotive, which is operated by the Steam Railroading Institute in Owosso, Michigan. According to author Van Allsburg, this locomotive was the inspiration for the story and it was used in the production of the movie.

A number of computer and video games feature steam locomotives.

Railroad Tycoon

There are two notable examples of steam locomotives used as charges on heraldic coats of arms. One is that of Darlington, which displays Locomotion No. 1. The other is the original coat of arms of Swindon, not currently in use, which displays a basic steam locomotive.[129][130]

Steam locomotives are a popular topic for coin collectors.

The 1950 Silver 5 Peso coin of Mexico has a steam locomotive on its reverse as the prominent feature.

The 20 euro Biedermeier Period coin, minted 11 June 2003, shows on the obverse an early model steam locomotive (the Ajax) on Austria's first railway line, the Kaiser Ferdinands-Nordbahn. The Ajax can still be seen today in the Technisches Museum Wien.

As part of the 50 State Quarters program, the quarter representing the US state of Utah depicts the ceremony where the two halves of the First Transcontinental Railroad met at Promontory Summit in 1869. The coin recreates a popular image from the ceremony with steam locomotives from each company facing each other while the golden spike is being driven.

See also

General

  • History of rail transport

  • List of steam technology patents

  • Live steam

  • Reciprocating motion

  • Steam locomotive production

  • Steam railroad

  • Steam turbine locomotive

  • Timeline of railway history

Types of steam locomotives

  • Articulated

  • Beyer-Garratt

  • Cab forward

  • Double Fairlie

  • Duplex

  • Electric-steam locomotive

  • Geared steam locomotive

  • Heilmann locomotive

  • High-pressure steam locomotive

  • Mallet

  • 5AT Advanced Technology Steam Locomotive

  • Steam dummy

  • Steam turbine locomotive

  • Triplex

Historic locomotives

  • 2-6-6-6

  • 2-8-8-4

  • 3801

  • Arend

  • Bittern

  • Canadian Pacific 374

  • C&O 1308

  • C&O 1309

  • C&O 614

  • Catch Me Who Can

  • City of Truro

  • Evening Star

  • Fairy Queen

  • Flying Scotsman

  • Garratt K1

  • The General

  • GKB 671

  • Gov. Stanford

  • Invicta

  • John Bull

  • Jupiter

  • Kingston Flyer

  • Locomotion No. 1

  • LMR 57 Lion

  • Mallard

  • N&W J class (1941)

  • N&W 1218

  • N&W 2156

  • Novelty

  • NYC 999

  • NYC Hudson

  • NYC Mohawk

  • NYC Niagara

  • PRR K4s

  • PRR I1s

  • PRR Q2

  • Puffing Billy

  • Reuben Wells

  • Santa Fe 3751

  • Sir Nigel Gresley

  • Soo Line 2719

  • Stephenson's Rocket

  • Southern Pacific 4449

  • Southern Railway 4501

  • Tom Thumb

  • Tornado

  • Union Pacific 844

  • Union Pacific Big Boy

  • Union Pacific Challenger

  • Union Pacific No. 119

  • Western Pacific 94

  • William Crooks

  • Kriegslokomotive

References

[1]
Citation Linkwww.britannica.com"John Blenkinsop - English inventor".
Sep 21, 2019, 1:31 AM
[2]
Citation Linkopenlibrary.orgEllis, Hamilton (1968). The Pictorial Encyclopedia of Railways. pp. 24-30. Hamlyn Publishing Group.
Sep 21, 2019, 1:31 AM
[3]
Citation Linkwww.bbc.co.uk"Magnificent Mallard: World's fastest steam locomotive". BBC. 17 February 2018
Sep 21, 2019, 1:31 AM
[4]
Citation Linkopenlibrary.orgPayton, Philip (2004). Oxford Dictionary of National Biography. Oxford University Press.
Sep 21, 2019, 1:31 AM
[5]
Citation Linkopenlibrary.orgGordon, W.J. (1910). Our Home Railways, volume one. London: Frederick Warne and Co. pp. 7–9.
Sep 21, 2019, 1:31 AM
[6]
Citation Linkbooks.google.comThe Railway Magazine, Volume 150, IPC Business Press, 2004, page 11. Google Books.
Sep 21, 2019, 1:31 AM
[7]
Citation Linkbooks.google.comTzanakakis, Konstantinos (26 January 2013). The Railway Track and Its Long Term Behaviour: A Handbook for a Railway Track of High Quality. Springer Science & Business Media. ISBN 9783642360510 – via Google Books.
Sep 21, 2019, 1:31 AM
[8]
Citation Linkwww.craven-hall.org"The Legacy of JOHN FITCH » Craven-Hall.org". www.craven-hall.org.
Sep 21, 2019, 1:31 AM
[9]
Citation Linkbooks.google.comYetman, David S. (1 May 2010). Without a Prop. Dog Ear Publishing. ISBN 9781608444755 – via Google Books.
Sep 21, 2019, 1:31 AM
[10]
Citation Linkopenlibrary.orgFrancis Trevithick (1872). Life of Richard Trevithick: With an Account of His Inventions, Volume 1. E.&F.N.Spon.
Sep 21, 2019, 1:31 AM
[11]
Citation Linkwww.museumwales.ac.uk"Richard Trevithick's steam locomotive | Rhagor". Museumwales.ac.uk. Archived from the original on 15 April 2011. Retrieved 3 November 2009. Cite uses deprecated parameter |deadurl= (help)
Sep 21, 2019, 1:31 AM
[12]
Citation Linknews.bbc.co.uk"Steam train anniversary begins". BBC. 21 February 2004. Retrieved 13 June 2009. A south Wales town has begun months of celebrations to mark the 200th anniversary of the invention of the steam locomotive. Merthyr Tydfil was the location where, on 21 February 1804, Richard Trevithick took the world into the railway age when he set one of his high-pressure steam engines on a local iron master's tram rails
Sep 21, 2019, 1:31 AM
[14]
Citation Linkopenlibrary.orgGarnett, A.F. (2005). Steel Wheels. Cannwood Press. pp. 18–19.
Sep 21, 2019, 1:31 AM
[15]
Citation Linkopenlibrary.orgYoung, Robert (2000) [1923]. Timothy Hackworth and the Locomotive (reprint ed.). Lewes, UK: The Book Guild.
Sep 21, 2019, 1:31 AM
[16]
Citation Linkopenlibrary.orgHamilton Ellis (1968). The Pictorial Encyclopedia of Railways. The Hamlyn Publishing Group. pp. 24–30.
Sep 21, 2019, 1:31 AM
[17]
Citation Linkopenlibrary.orgStover, John F. (1987). History of the Baltimore and Ohio Railroad. West Lafayette, IN: Purdue University Press. pp. 35–36. ISBN 0-911198-81-4.
Sep 21, 2019, 1:31 AM
[18]
Citation Linkportal.issn.orgHilton, John (1986). "Steam Locomotive Boilers". Back Track. No. (Special Introductory Issue). Atlantic Transport Publishers. pp. xl–xli. ISSN 0955-5382. OCLC 226007088.
Sep 21, 2019, 1:31 AM
[19]
Citation Linkopenlibrary.orgAhrons. The British Steam Railway Locomotive from 1825 to 1925. vol. 1.
Sep 21, 2019, 1:31 AM
[20]
Citation Linkopenlibrary.orgSee section of the LNER Class A1/A3 article on the sharp increase in availability brought about in this respect by the application of the Kylchap exhaust to Gresley Pacifics in the early 1960s
Sep 21, 2019, 1:31 AM
[21]
Citation Linkopenlibrary.orgJ.J.G. Koopmans: The fire burns much better ... NL-Venray 2006, ISBN 90-6464-013-0
Sep 21, 2019, 1:31 AM
