SIG Sauer P226

SIG Sauer P226

The SIG Sauer P226 is a full-sized, service-type pistol made by SIG Sauer. This model is sold with a choice of four chambers to choose from: the 9×19mm Parabellum, .40 S&W, .357 SIG, or .22 Long Rifle. It is essentially the same basic design of the SIG Sauer P220, but developed to use higher capacity, double stack magazines in place of the single stack magazines of the P220. The P226 itself has spawned further sub-variants; the P228 and P229 are both compact versions of the double stack P226 design. The SIG Sauer P226 and its variants are in service with numerous law enforcement and military organizations worldwide.[3]

SIG Sauer P226
TypeSemi-automatic pistol
Place of originGermany
Service history
Used bySee Users
Production history
Designed1980–1983
ManufacturerSIG Sauer
Produced1983–present
VariantsSee Variants
Specifications
Mass964 g (34.0 oz) (w/ magazine)[1]
Length196 mm (7.7 in)[2]
Barrel length112 mm (4.4 in)[2]
Width38.1 mm (1.50 in)[1]
Height140 mm (5.5 in)[1]

Cartridge
ActionMechanically locked, recoil operated (DA/SA, (DAK double action kellerman), or DAO)
Feed system10-, 12-, 13-, or 15-round magazine (.40 S&W, .357 SIG);
10-, 15-, 17-, 18-, or 20-round magazine (9×19mm Parabellum);
10-round polymer magazine (Classic 22 only)
SightsIron sights

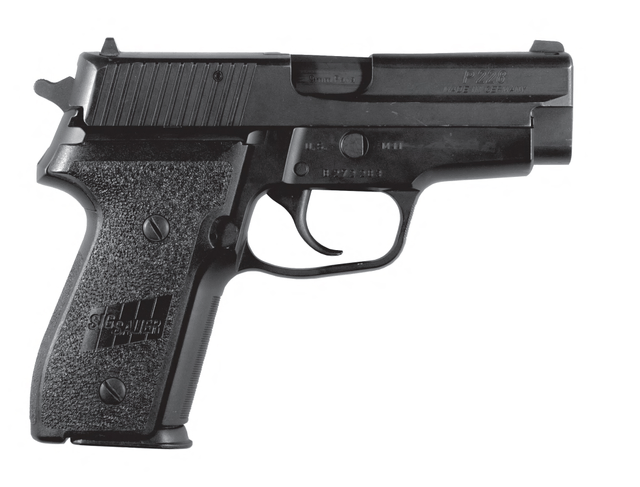

SIG P228 & P229
TypeSemi-automatic pistol
Place of originGermany
Switzerland
Service history
Used bySee Users
Production history
ManufacturerSIG Sauer
VariantsSee Variants
Specifications
Mass825 g (29.1 oz) (P228)
905 g (31.9 oz) (P229)[11]
Length180 mm (7.1 in)[11]
Barrel length99 mm (3.9 in)[11]
Width38 mm (1.5 in)[12]
Height137 mm (5.4 in)[12]

Cartridge9×19mm Parabellum (P228 & P229)
.40 S&W, .357 SIG (P229 only)
Actionmechanically locked, recoil operated (DA/SA or DAO)
Feed system
  • 9×19: 10-round, 13-round, or 15-round box magazine
  • .40 S&W and .357 SIG: 12-round magazine
SightsIron sights

History

Detail of the controls and parts: 1. Ejection port/locking lug, 2. Rear sights, 3. Hammer, 4. Takedown lever, 5. Decocker, 6. Slide stop, 7. Trigger, 8. Magazine release.

Detail of the controls and parts: 1. Ejection port/locking lug, 2. Rear sights, 3. Hammer, 4. Takedown lever, 5. Decocker, 6. Slide stop, 7. Trigger, 8. Magazine release.

Schweizerische Industrie Gesellschaft (SIG) is a Swiss company, now known as Swiss Arms. In 1975, SIG entered into an agreement with German gun manufacturer J.P. Sauer & Sohn to develop and market a new handgun which became the P220. The P220 was the first SIG Sauer handgun sold in the US. It was marketed initially by Browning as the Browning BDA. The SIG Sauer P220 is a refinement of the Petter-Browning design used in the SIG P210. The locked breech design is very different and was pioneered by SIG Sauer. See also The first SIG Sauer Handgun.

The P226 was designed for entry into the XM9 Service Pistol Trials (see also Joint Service Small Arms Program) that were held by the US Army in 1984 on behalf of the US armed forces to find a replacement for the M1911A1 and 24 other makes of handgun in US military service. Only the Beretta 92SBF and the SIG P226 satisfactorily completed the trials.[4] According to a GAO report, Beretta was awarded the M9 contract for the 92F due to a lower total package price. The P226 cost less per pistol than the 92F, but SIG's package price with magazines and spare parts was higher than Beretta's. The Navy SEALs, however, later chose to adopt the P226 as the P226 MK25 with special corrosion protection.[5]

For the U.S. military XM9 trials, the P226 was imported by Saco Defense. Interarms took over importing when the pistol was introduced for civilian sales. SIG Sauer eventually founded SIGARMS, Inc. (now SIG Sauer) in the United States to handle importation of their products. In 2000, SIG Holding AG sold J.P. Sauer & Sohn GmbH to two German businessmen.[6] The brand name SIG Sauer remained at J.P. Sauer & Sohn GmbH.

Manufacture

SIG Sauer firearms are manufactured in Eckernförde, Germany by Sig Sauer, GMBH and in Newington, NH, United States by SIG Sauer Inc., (formerly SIGARMS Inc.) Both of these companies along with Swiss Arms AG, Mauser Jagdwaffen GmbH, J.P. Sauer & Sohn, John Rigby & Company, German Sport Guns GmbH and Blaser Jagdwaffen Gmbh are subsidiaries of Luke and Ortmeier Gruppe of Emsdetten, Germany.[7]

Copies of the P226 are produced in China by Norinco, under the name of NP226. The ZOAF is made in Iran as the standard pistol of the Iranian military. Copies of P226 are produced by Myanmar for Tatmadaw, under the name of MA5 MK III.[8]

Variants

A P226 Mk25 model featuring the UID barcode, Silver Anchor and a Surefire X300 Ultra weapon light mounted on the Picatinny rail.

A P226 Mk25 model featuring the UID barcode, Silver Anchor and a Surefire X300 Ultra weapon light mounted on the Picatinny rail.

U.S. Navy SEAL teams started using the SIG P226 in the 1980s, after German Kampfschwimmer tested them successfully.

The first Naval Special Warfare inspired P226 pistols to be offered to the public were the NSW Commemoratives, issued in early 2004. The SIG P226-9-NAVY is a version of the SIG P226 produced that features a stainless steel slide engraved with an anchor to designate them as Naval Special Warfare pistols. SIGARMS raised $100,000 for the Special Operations Warrior Foundation through the sale of these NSW serialized pistols. The pistol with the serial number NSW0001 was sold during a live auction on the US-wide syndicated Laura Ingraham radio show for an additional $25,000. Later produced commercial versions added a universal rail for accessory attachments while retaining the anchor of previous models, but do not have the SIGLITE Night Sights.[9]

P226 E2

SIG Sauer P226 E2. Note magazine capacity in this picture is capped at 10 rounds.

SIG Sauer P226 E2. Note magazine capacity in this picture is capped at 10 rounds.

Introduced at the 2010 SHOT Show, the P226 E2 at the time was a significant update to the P226 line. 'E2' (pronounced 'E-squared'), or otherwise known as "Enhanced Ergonomics", is SIG Sauer's attempt to make the large frame gun more ergonomic for persons with small and medium-sized hands. A reduced grip size and reduced reach trigger bring the trigger face back more than 13 mm (0.5 in), thus potentially allowing better trigger manipulation and control for a greater number of shooters. Other standard features include the Short Reset Trigger, aggressive grip finish texture, and a new wrap-around, one-piece grip panel configuration.[10] The gun was discontinued from the P226 model lineup at the end of 2010 but the E2-style grip system has been adopted on and carried over to other P226 variants.

P228 (M11)

US Navy Explosive Ordnance Disposal range practice

US Navy Explosive Ordnance Disposal range practice

A compact version of the P226, the P228, is in use with various law enforcement agencies and also with the US military, where it is designated as the M11. The P228 has a shorter slide and barrel than the P226. Unlike the P226, the P228 is available only in 9×19mm Parabellum with a 13-round magazine, but can also use P226 15- or 20-round magazines. Aftermarket magazines extend the capacity of the P228 to 15 rounds.

From a distance, the P228 can be differentiated from the P226 by comparing the trigger guards (the P228's is curved, while the P226's is slightly hooked) and the barrel and slide lengths (the P228's barrel 99 mm (3.9 in), thus having a corresponding shorter slide). Also in a side-by-side comparison the P228 would appear slightly shorter (15 mm (0.59 in) shorter) than the P226. The larger capacity P226 magazine can also be employed in the P228 although it extends from the base of the grip. Civilian sales of the P228 were discontinued with the introduction of 9mm chambering in the P229 but were recently reintroduced in limited quantities to civilians with an accessory rail and hooked trigger guard, designated the P228R.

The P229 is nearly identical to the P228, however its slide is made from milled stainless steel (versus the P228's folded carbon steel slide) and is available in 9mm, .40 S&W, and .357 SIG. In the summer of 2012, SIG Sauer announced they were releasing the M11A1, which is essentially the milled-slide P229 chambered in 9mm with P228-labeled grips, a short reset trigger, SIGLITE tritium night sights, Mec-Gar 15-round magazines, and a military style smart tag and serial number. Later in 2012, Air Force M11b versions of the P228 were released for civilian sale. The M11 is to be replaced in the Army and Air Force through the Modular Handgun System program.[13] On January 19, 2017, it was announced that the SIG Sauer P320 Compact (M18) had been selected to replace the M11 as the U.S's service pistol. One factor in winning the Modular Handgun System competition was the ability to employ 9mm Parabellum, .357 Sig or .40 S&W cartridges within the same basic frame.

P229

The P229 is a compact firearm often used for duty or concealed carry purposes. The standard version features a DA/SA trigger. The pistol has also been made available in a DAK (Double Action Kellermann) model, which is a DAO system with two trigger reset points, and a lighter, smoother pull than that of traditional DAO handguns. Most of the above-mentioned factory variants of the P226 are also available for the P229, including the Equinox option, Elite lineup, as well as a SAS GEN 2 model.

The P229 differs from its cousin the P226 in several respects, and was originally introduced to supplement and then replace the P228 by adding the .357 SIG and .40 S&W as available chamberings. The P229 was the first production handgun introduced that could chamber the .357 SIG round.[14] The P226 and P228 were originally manufactured using a stamped-steel slide on an aluminum alloy frame. The P229 consists of a CNC-milled stainless steel slide, typically colored black with a Nitron finish. The P229's milled steel slide was introduced to handle the higher slide velocities created by the .357 SIG and .40 S&W loads, which the stamped slide of the P228 could not handle without the use of a much stiffer recoil spring. This would have made manual slide-retraction much more difficult and the use of a milled stainless slide (coupled with the new milling and stainless production capabilities found in the U.S. factory) with a standard weight recoil spring made more sense.

A standard weight recoil spring for the P229 is 71 N (16 lbf). A spring weight of 89 N (20 lbf) or higher would have been required if a stamped slide was used for the .40 S&W or .357 SIG chamberings. The SAAMI maximum chamber pressures of 9mm, 9mm +P, .40 S&W, and .357 SIG are as follows: 240 MPa (35,000 psi); 265 MPa (38,500 psi); 240 MPa (35,000 psi); and 280 MPa (40,000 psi). The slide on the P226 was redesigned in a similar fashion, and civilian sales of the P228 were discontinued in early 2005 due to declining sales and the advent of the P229 in 9mm. The P226 and P229 are both available with optional accessory rails and optional forged stainless steel frames.

The P229 can be chambered in .22 LR, 9mm, .40 S&W or .357 SIG. Changing between .40 S&W and .357 SIG is as simple as switching out the barrel; both calibers use the same magazine. Conversion barrels also allow a P229 or P226 to change between a .40 S&W/.357 SIG to a 9mm caliber. The 9mm model (both railed and non-railed) can be converted to .22 LR, but in the past its receivers were not designed to provide the space needed for handling the larger rounds of .357 SIG and .40 S&W. As SIG Sauer has slowly begun adopting the E2-style grip system across the P229 model range in 2011—a move similar to what is also happening to the larger P226—they have also begun using the .357 SIG/.40 S&W spec frame dimensions for their factory 9mm P229s, presumably to streamline the number of variations in parts needed to be kept in inventory. Although the manufacturer has announced that older-configuration magazines will continue to operate in the new receiver configuration, SIG Sauer has nonetheless revised new P229 9mm factory magazines to a design that is specific to the resized magazine well of the newly reconfigured receiver/frame. As a consequence, the newer magazines are not back-compatible, due to their larger width.

Users

CountryOrganization NameModelReference
BangladeshBangladesh Navy SWADSP226, P228, P229[15]
Special Security Force (SSF) of the Bangladesh ArmyP226, P228, P229[15]
CanadaCanadian Armed ForcesP226[3]
Royal Canadian Mounted Police (Emergency Response Team)P226[16]
Royal Newfoundland ConstabularyP226[17]
Vancouver Police DepartmentP226[18]
ChinaHubei province SWATNP22[19]
ColombiaColombian National PoliceSP2022Standard side weapon of the Colombian Police, replaced the .38 S&W caliber weapons in service since 2005.[20][21][22]
El SalvadorNational Civil Police of El SalvadorP228[23]
FinlandFinnish ArmyP226[3]
FranceNational Gendarmerie Intervention Group (GIGN), The Tactical Squad of French GendarmerieP226, P228[24]
Escouade de contre-terrorisme et de libération d'otages (ECTLO), counter-terrorist and hostages rescue squad of French NavyP226[25]
GeorgiaUsed by Georgian Police and Georgian Special ForcesP226[26][27]
GermanySpezialeinsatzkommandos (SEKs) of the police, and the Federal Criminal Police OfficeP226, P229[28]
GreeceEKAM counter-terrorist unit of the Hellenic PoliceP229[29][30]
IndiaIndian ArmyP226[3]
IndonesiaKomando Pasukan Khusus (Kopassus) special forces group of the Indonesian ArmyP226, P228[31]
Komando Pasukan Katak (Kopaska) tactical diver group of the Indonesian NavyP226, P228[31]
IranDefense Industries OrganizationP226[32]
IrelandDefence Forces Army Ranger WingP226, P228[33]
Garda; plainclothes officers, SDU, ERU, RSU, NBCI, Drugs and Organised Crime BureauP226[34][35]
IsraelIsraeli Special Forces UnitsP226, P228[36]
JapanSpecial Boarding UnitP226R[37]
South KoreaRepublic of Korea Naval Special Warfare FlotillaP226N[38]
Malaysia10 Paratrooper BrigadeP226[39]
Grup Gerak KhasP226[39]
MyanmarMyanmar ArmyP226[8]
NetherlandsUnit Interventie Mariniers (UIM) of the Netherlands Marine CorpsP226[40]
New ZealandNew Zealand Defence ForceP226, P226R designated P226AL[41]
PakistanSpecial Services GroupP226, P229[42]
PhilippinesPhilippine Air ForceP228[43]
PolandGROM special groupP228[44]
PortugalPortuguese Armed ForcesP228[45]
SingaporeSingapore Armed ForcesP226[46]
SloveniaSpecial Unit (Slovenian Police - "CT")P226 Ehanced Elite[47]
Security and Protection Center (Slovenian Police - "CP")P226[48]
Special Operations Unit (Slovenian Army - "SF")P226[49]
Specialized unit for Special Tactics (Slovenian Army - "MP SWAT")P226[50]
SpainGrupo Especial de Operaciones (GEO) of the Cuerpo Nacional de PolicíaP226[51]
SwedenSwedish Police AuthorityP226, P228, P229, P239[52]
ThailandRoyal Thai ArmyP226[53]
TurkeySpecial ForcesP229[3]
Underwater Offence Group CommandP226, P229[54]
United Arab EmiratesUnited Arab Emirates ArmyP228[3]
Various special forcesP228[3]
United KingdomBritish Army (standard P226 designated L105A1 and improved version with corrosion resistant finish designated L106A1, P229 designated L117A2)P226, P229[3]
Special Air ServiceP226, P228 designated L107A1[3]
Ministry of Defence PoliceP229[55]
United StatesUnited States ArmyP228 (designated M11)[56]
United States Army Criminal Investigation CommandP228 (designated M11)[57]
United States Coast GuardP229R DAK .40 S&W[57]
United States Department of Homeland SecurityP229 DAK .40 S&W[57]
U.S. Diplomatic Security Service (U.S. Department of State)P226R, P228, P229, P229R (9×19mm)[58]
U.S. Federal Air MarshalsP229 (.357 SIG)[59]
Naval Criminal Investigative ServiceP229R DAK (.40 S&W), P239 DAK (.40 S&W)[60]
United States Navy SEALsP226 (designated MK25), P229 (9×19mm)[61]
United States NavyP226R (9×19mm)& P228 (designated M11) (9×19mm)[62]
United States Department of Veterans Affairs PoliceP229R DAK (9×19mm)[63]
U.S. Secret ServiceP229 (.357 SIG)[64]
United States Postal Inspection ServiceP229R DAK (.40 S&W)[65]
Texas Ranger DivisionP226 (.357 SIG)[66]
New York City Police DepartmentP226 DAO (9×19mm)[67]
Delaware State PoliceP226, P229 (.357 SIG)[68]
Ohio State Highway PatrolP226 .40 S&W[69]
Orlando Police DepartmentP226R (9×19mm)[70]
Memphis Police DepartmentP229 DAK[71]
Shelby County Sheriff's OfficeP226, P229 DAK (.40 S&W)[72]
Connecticut State PoliceP229 (.40 S&W), P220 (.45ACP)[73]
Franklin County Sheriff's Office (Ohio)P226R (9mm)[74]
Ferguson, Missouri Police DepartmentP229 .40 S&W[75]
Houston Police DepartmentP229R, P226 .40 S&W[76]
Sacramento Police DepartmentP226R, P229R, P239[77]
San Francisco Police DepartmentP226, P229R .40 S&W[78]
Tampa Police Department Tactical Response Team (TRT/SWAT)P226R (9×19mm)[79]
Fairfax County Police DepartmentP226R .40 S&W[69]

See also

  • Joint Combat Pistol

  • M9 pistol
