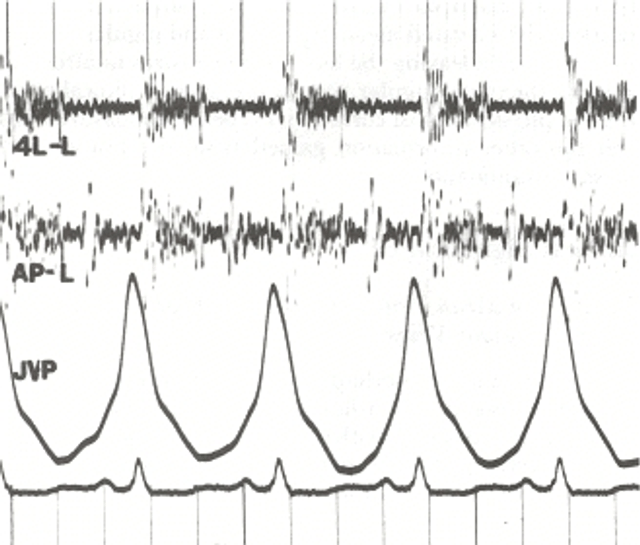

A phonocardiogram (or PCG) is a plot of high-fidelity recording of the sounds and murmurs made by the heart with the help of the machine called the phonocardiograph; thus, phonocardiography is the recording of all the sounds made by the heart during a cardiac cycle.^[2][3]

The sounds result from vibrations created by closure of the heart valves, there are at least two: the first when the atrioventricular valves (tricuspid and mitral) close at the beginning of systole and the second when the aortic valve and pulmonary valve (semilunar valves) close at the end of systole.^[4] It allows the detection of subaudible sounds and murmurs, and makes a permanent record of these events.^[5] In contrast, the stethoscope cannot always detect all such sounds or murmurs, and it provides no record of their occurrence. The ability to quantitate the sounds made by the heart provides information not readily available from more sophisticated tests, and it provides vital information about the effects of certain drugs on the heart. It is also an effective method for tracking the progress of the person's disease.

According to a review by Cherif et al, discrete wavelet transform DWT is better at not affecting S1 or S2 while filtering heart murmurs. Packet wavelet transform affects internal components structure much more than DWT does.^[6]

Awareness of the sounds made by the heart dates to ancient times. The idea of developing an instrument to record it may date back to Robert Hooke (1635–1703), who wrote "There may also be a possibility of discovering the internal motions and actions of bodies - whether animal, vegetable, or mineral, by the sound they make". The earliest known examples of phonocardiography date to the 1800s.^[7]

Monitoring and recording equipment for phonocardiography was developed through the 1930s and 1940s. Standardization began by 1950, when the first international conference was held in Paris.^[7]

A phonocardiogram system manufactured by Beckman Instruments was used on at least one of the Project Gemini manned spaceflights (1965-1966) to monitor the heartbeat of astronauts on the flight. It was one of many Beckman Instruments specialized for and used by NASA.^[8]

John Keefer filed a patent for a phonocardiogram simulator in 1970 while he was an employee of the U.S. government. The original patent description indicates that it is a device which via electrical voltage mimics the human heart's sounds.^[9]
