Minute and second of arc

Minute and second of arc

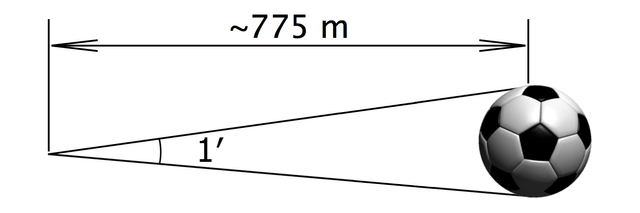

A minute of arc, arcminute (arcmin), arc minute, or minute arc is a unit of angular measurement equal to 1/60 of one degree. Since one degree is 1/360 of a turn (or complete rotation), one minute of arc is 1/21600 of a turn. The nautical mile was originally defined as a minute of latitude on a hypothetical spherical Earth so the actual Earth circumference is very near 21 600 nautical miles. A minute of arc is π/10800 of a radian.

A second of arc, arcsecond (arcsec), or arc second is 1/60 of an arcminute, 1/3600 of a degree, 1/1296000 of a turn, and π/648000 (about 1/206265) of a radian.

These units originated in Babylonian astronomy as sexagesimal subdivisions of the degree; they are used in fields that involve very small angles, such as astronomy, optometry, ophthalmology, optics, navigation, land surveying, and marksmanship.

To express even smaller angles, standard SI prefixes can be employed; the milliarcsecond (mas) and microarcsecond (μas), for instance, are commonly used in astronomy.

The number of square arcminutes in a complete sphere is148510660square arcminutes (the surface area of a unit sphere in square units divided by the solid angle area subtended by a square arcminute, also in square units – so that the final result is a dimensionless number).

The names "minute" and "second" have nothing to do with the identically named units of time "minute" or "second". The identical names reflect the ancient Babylonian number system, based on the number 60.[2]

Arcminute
General information
Unit systemNon-SI units mentioned in the SI
Unit ofAngle
Symbol′ or arcmin 
In unitsDimensionless with an arc length of approx. ≈0.2908/1000of the radius, i.e. 0.2908mm/m
Conversions
1 ′ in ...... is equal to ...
degrees1/60° = 0.016°
arcseconds60″
radiansπ/10800≈ 0.000290888 rad
milliradians≈ 0.2908 mil
gons600/9g= 66.6g
turns1/21600

Symbols and abbreviations

The standard[3] symbol for marking the arcminute is theprime(′) (U+2032), though a single quote (') (U+0027) is commonly used where onlyASCIIcharacters are permitted. One arcminute is thus written 1′. It is also abbreviated as arcmin or amin or, less commonly, the prime with acircumflexover it ().

The standard[3] symbol for the arcsecond is the double prime (″) (U+2033), though a double quote (") (U+0022) is commonly used where only ASCII characters are permitted. One arcsecond is thus written 1″. It is also abbreviated as arcsec or asec.

Sexagesimal system of [[LINK|lang_en|Angle|angular measurement]]
UnitValueSymbolAbbreviationsIn radians, approx.
Degree1/360turn° (degree)deg17.4532925mrad
Arcminute1/60degree′ (prime)arcmin, amin, am,, MOA290.8882087 μrad
Arcsecond1/60arcminute =1/3600degree″ (double prime)arcsec, asec, as4.8481368 μrad
Milliarcsecond0.001 arcsecond =1/3600000degreemas4.8481368 nrad
Microarcsecond0.001 mas =0.000001arcsecondμas4.8481368 prad

In celestial navigation, seconds of arc are rarely used in calculations, the preference usually being for degrees, minutes and decimals of a minute, for example, written as 42° 25.32′ or 42° 25.322′.[4][5] This notation has been carried over into marine GPS receivers, which normally display latitude and longitude in the latter format by default.[6]

Common examples

The full moon's average apparent size is about 31 arcminutes (or 0.52°).

An arcminute is approximately the resolution of the human eye.

An arcsecond is approximately the angle subtended by a U.S. dime coin (18 mm) at a distance of 4 kilometres (about 2.5 mi).[7] An arcsecond is also the angle subtended by

  • an object of diameter 725.27 km at a distance of one astronomical unit,

  • an object of diameter 45866916 km at one light-year,

  • an object of diameter one astronomical unit (149597870.7 km) at a distance of one parsec, by definition.

A milliarcsecond is about the size of a dime atop the Eiffel Tower as seen from New York City.

A microarcsecond is about the size of a period at the end of a sentence in the Apollo mission manuals left on the Moon as seen from Earth.

A nanoarcsecond is about the size of a penny on Neptune's moon Triton as observed from Earth.

Also notable examples of size in arcseconds are:

  • Hubble Space Telescope has calculational resolution of 0.05 arcseconds and actual resolution of almost 0.1 arcseconds, which is close to the diffraction limit.[8]

  • crescent Venus measures between 60.2 and 66 seconds of arc.[8]

Uses

Astronomy

Comparison of angular diameter of the Sun, Moon, planets and the International Space Station. True representation of the sizes is achieved when the image is viewed at a distance of 103 times the width of the "Moon: max." circle. For example, if the "Moon: max." circle is 10 cm wide on a computer display, viewing it from 10.3 m (11.3 yards) away will show true representation of the sizes.

Comparison of angular diameter of the Sun, Moon, planets and the International Space Station. True representation of the sizes is achieved when the image is viewed at a distance of 103 times the width of the "Moon: max." circle. For example, if the "Moon: max." circle is 10 cm wide on a computer display, viewing it from 10.3 m (11.3 yards) away will show true representation of the sizes.

Since antiquity the arcminute and arcsecond have been used in astronomy. In the ecliptic coordinate system, latitude (β) and longitude (λ); in the horizon system, altitude (Alt) and azimuth (Az); and in the equatorial coordinate system, declination (δ), are all measured in degrees, arcminutes and arcseconds. The principal exception is right ascension (RA) in equatorial coordinates, which is measured in time units of hours, minutes, and seconds.

The arcsecond is also often used to describe small astronomical angles such as the angular diameters of planets (e.g. the angular diameter of Venus which varies between 10″ and 60″), the proper motion of stars, the separation of components of binary star systems, and parallax, the small change of position of a star in the course of a year or of a solar system body as the Earth rotates. These small angles may also be written in milliarcseconds (mas), or thousandths of an arcsecond. The unit of distance, the parsec, named from the parallax of one arc second, was developed for such parallax measurements. It is the distance at which the mean radius of the Earth's orbit would subtend an angle of one arcsecond.

The ESA astrometric space probe Gaia, launched in 2013, can approximate star positions to 7 microarcseconds (µas).[9]

Apart from the Sun, the star with the largest angular diameter from Earth is R Doradus, a red giant with a diameter of 0.05 arcsecond.[1] Because of the effects of atmospheric seeing, ground-based telescopes will smear the image of a star to an angular diameter of about 0.5 arcsecond; in poor seeing conditions this increases to 1.5 arcseconds or even more. The dwarf planet Pluto has proven difficult to resolve because its angular diameter is about 0.1 arcsecond.[10]

Space telescopes are not affected by the Earth's atmosphere but are diffraction limited. For example, the Hubble Space Telescope can reach an angular size of stars down to about 0.1″. Techniques exist for improving seeing on the ground. Adaptive optics, for example, can produce images around 0.05 arcsecond on a 10 m class telescope.

Cartography

Minutes (′) and seconds (″) of arc are also used in cartography and navigation. At sea level one minute of arc along the equator or a meridian (indeed, any great circle) equals exactly one geographical mile along the Earth's equator or approximately one nautical mile (1,852 metres; 1.151 miles).[11] A second of arc, one sixtieth of this amount, is roughly 30 metres (98 feet). The exact distance varies along meridian arcs because the figure of the Earth is slightly oblate (bulges a third of a percent at the equator).

Positions are traditionally given using degrees, minutes, and seconds of arcs for latitude, the arc north or south of the equator, and for longitude, the arc east or west of the Prime Meridian. Any position on or above the Earth's reference ellipsoid can be precisely given with this method. However, when it is inconvenient to use base-60 for minutes and seconds, positions are frequently expressed as decimal fractional degrees to an equal amount of precision. Degrees given to three decimal places (1/1000 of a degree) have about 1/4 the precision of degrees-minutes-seconds (1/3600 of a degree) and specify locations within about 120 metres (390 feet).

Property cadastral surveying

Related to cartography, property boundary surveying using the metes and bounds system relies on fractions of a degree to describe property lines' angles in reference to cardinal directions. A boundary "mete" is described with a beginning reference point, the cardinal direction North or South followed by an angle less than 90 degrees and a second cardinal direction, and a linear distance. The boundary runs the specified linear distance from the beginning point, the direction of the distance being determined by rotating the first cardinal direction the specified angle toward the second cardinal direction. For example, North 65° 39′ 18″ West 85.69 feet would describe a line running from the starting point 85.69 feet in a direction 65° 39′ 18″ (or 65.655°) away from north toward the west.

Firearms

Example ballistic table for a given 7.62×51mm NATO load. Bullet drop and wind drift are shown both in mil and minute of angle.

Example ballistic table for a given 7.62×51mm NATO load. Bullet drop and wind drift are shown both in mil and minute of angle.

Comparison of milliradian (mil) and minute of arc (moa).

Comparison of milliradian (mil) and minute of arc (moa).

The arcminute is commonly found in the firearms industry and literature, particularly concerning the accuracy of rifles, though the industry refers to it as minute of angle (MOA). It is especially popular with shooters familiar with the imperial measurement system because 1 MOA is subtended by a sphere with a diameter of 1.047 inches at 100 yards (2.908 cm at 100 m), a traditional distance on U.S. target ranges. The subtension is linear with the distance, for example, at 500 yards, 1 MOA is subtended by a sphere with a diameter of 5.235 inches, and at 1000 yards 1 MOA is subtended by a sphere with a diameter of 10.47 inches. Since many modern telescopic sights are adjustable in half (1/2), quarter (1/4), or eighth (1/8) MOA increments, also known as clicks, zeroing and adjustments are made by counting 2, 4 and 8 clicks per MOA respectively.

For example, if the point of impact is 3 inches high and 1.5 inches left of the point of aim at 100 yards (which for instance could be measured by using a spotting scope with a calibrated reticle), the scope needs to be adjusted 3 MOA down, and 1.5 MOA right. Such adjustments are trivial when the scope's adjustment dials have a MOA scale printed on them, and even figuring the right number of clicks is relatively easy on scopes that click in fractions of MOA. This makes zeroing and adjustments much easier:

  • To adjust a ​1⁄2 MOA scope 3 MOA down and 1.5 MOA right, the scope needs to be adjusted 3 × 2 = 6 clicks down and 1.5 x 2 = 3 clicks right

  • To adjust a ​1⁄4 MOA scope 3 MOA down and 1.5 MOA right, the scope needs to be adjusted 3 x 4 = 12 clicks down and 1.5 × 4 = 6 clicks right

  • To adjust a ​1⁄8 MOA scope 3 MOA down and 1.5 MOA right, the scope needs to be adjusted 3 x 8 = 24 clicks down and 1.5 × 8 = 12 clicks right

Another common system of measurement in firearm scopes is the milliradian or mil. Zeroing a mil based scope is easy for users familiar with base ten systems. The most common adjustment value in mil based scopes is 1/10 mil (which approximates ​1⁄3 MOA).

  • To adjust a 1/10 mil scope 0.9 mil down and 0.4 mil right, the scope needs to be adjusted 9 clicks down and 4 clicks right (which equals approximately 3 and 1.5 MOA respectively).

One thing to be aware of is that some MOA scopes, including some higher-end models, are calibrated such that an adjustment of 1 MOA on the scope knobs corresponds to exactly 1 inch of impact adjustment on a target at 100 yards, rather than the mathematically correct 1.047". This is commonly known as the Shooter's MOA (SMOA) or Inches Per Hundred Yards (IPHY). While the difference between one true MOA and one SMOA is less than half of an inch even at 1000 yards,[12] this error compounds significantly on longer range shots that may require adjustment upwards of 20–30 MOA to compensate for the bullet drop. If a shot requires an adjustment of 20 MOA or more, the difference between true MOA and SMOA will add up to 1 inch or more. In competitive target shooting, this might mean the difference between a hit and a miss.

The physical group size equivalent to m minutes of arc can be calculated as follows: group size = tan(m/60) × distance. In the example previously given, for 1 minute of arc, and substituting 3,600 inches for 100 yards, 3,600 tan(1/60) ≈ 1.047 inches. In metric units 1 MOA at 100 metres ≈ 2.908 centimetres.

Sometimes, a precision firearm's accuracy will be measured in MOA. This simply means that under ideal conditions i.e. no wind, match-grade ammo, clean barrel, and a vise or a benchrest used to eliminate shooter error, the gun is capable of producing a group of shots whose center points (center-to-center) fit into a circle, the average diameter of circles in several groups can be subtended by that amount of arc. For example, a 1 MOA rifle should be capable, under ideal conditions, of shooting an average 1-inch groups at 100 yards. Most higher-end rifles are warrantied by their manufacturer to shoot under a given MOA threshold (typically 1 MOA or better) with specific ammunition and no error on the shooter's part. For example, Remington's M24 Sniper Weapon System is required to shoot 0.8 MOA or better, or be rejected.

Rifle manufacturers and gun magazines often refer to this capability as sub-MOA, meaning it shoots under 1 MOA. This means that a single group of 3 to 5 shots at 100 yards, or the average of several groups, will measure less than 1 MOA between the two furthest shots in the group, i.e. all shots fall within 1 MOA. If larger samples are taken (i.e., more shots per group) then group size typically increases, however this will ultimately average out. If a rifle was truly a 1 MOA rifle, it would be just as likely that two consecutive shots land exactly on top of each other as that they land 1 MOA apart. For 5-shot groups, based on 95% confidence, a rifle that normally shoots 1 MOA can be expected to shoot groups between 0.58 MOA and 1.47 MOA, although the majority of these groups will be under 1 MOA. What this means in practice is if a rifle that shoots 1-inch groups on average at 100 yards shoots a group measuring 0.7 inches followed by a group that is 1.3 inches, this is not statistically abnormal.[13][14]

The Metric System counterpart of the MOA is the milliradian or mil, being equal to one 1000th of the target range, laid out on a circle that has the observer as centre and the target range as radius. The number of mils on a full such circle therefore always is equal to 2 × π × 1000, regardless the target range. Therefore, 1 MOA ≈ 0.2908 mil. This means that an object which spans 1 mil on the reticle is at a range that is in metres equal to the object's size in millimetres (e.g. an object of 100 mm @ 1 mrad is 100 metres away). So there is no conversion factor required, contrary to the MOA system. A reticle with markings (hashes or dots) spaced with a one mil apart (or a fraction of a mil) are collectively called a mil reticle. If the markings are round they are called mil-dots.

In the table below conversions from mil to metric values are exact (e.g. 0.1 mil equals exactly 1 cm at 100 metres), while conversions of minutes of arc to both metric and imperial values are approximate.

Conversion between common sight adjustments based on milliradian and minute of arc
Angle
adjustment
per click
Minutes of arcMilli- radiansAt 100mAt 100yd
mmcminin
**​112′**0.083′0.024 mil2.42 mm0.242 cm0.0958 in0.087 in
**​0.2510 mil**0.086′0.025 mil2.5 mm0.25 cm0.0985 in0.09 in
**​18′**0.125′0.036 mil3.64 mm0.36 cm0.144 in0.131 in
**​16′**0.167′0.0485 mil4.85 mm0.485 cm0.192 in0.175 in
**​0.510 mil**0.172′0.05 mil5 mm0.5 cm0.197 in0.18 in
**​14′**0.25′0.073 mil7.27 mm0.73 cm0.29 in0.26 in
**​110 mil**0.344′0.1 mil10 mm1 cm0.39 in0.36 in
**​12′**0.5′0.145 mil14.54 mm1.45 cm0.57 in0.52 in
**​1.510 mil**0.516′0.15 mil15 mm1.5 cm0.59 in0.54 in
**​210 mil**0.688′0.2 mil20 mm2 cm0.79 in0.72 in
1′1.0′0.291 mil29.1 mm2.91 cm1.15 in1.047 in
1 mil3.438′1 mil100 mm10 cm3.9 in3.6 in

(Values in bold face are exact. All mil fractions are given in tenths, which is more convenient for practical use.)

  • 1′ at 100 yards equals 22619/ 21600 = 1.04717593 in[15] ≈ 1.047 inches

  • 1′ ≈ 0.291 mil (or 2.91 cm at 100 m, approximately 30 mm at 100 m)

  • 1 mil ≈ 3.44′, so 1/10 mil ≈ 1/3′

  • 0.1 mil equals exactly 1 cm at 100 m, or approximately 0.36 inches at 100 yards

Human vision

In humans, 20/20 vision is the ability to resolve a spatial pattern separated by a visual angle of one minute of arc. A 20/20 letter subtends 5 minutes of arc total.

Materials

The deviation from parallelism between two surfaces, for instance in optical engineering, is usually measured in arcminutes or arcseconds. In addition, arcseconds are sometimes used in rocking curve (ω-scan) x ray diffraction measurements of high-quality epitaxial thin films.

Manufacturing

Some measurement devices make use of arcminutes and arcseconds to measure angles when the object being measured is too small for direct visual inspection. For instance, a toolmaker's optical comparator will often include an option to measure in "minutes and seconds".

See also

  • Degree (angle) § Subdivisions

  • Sexagesimal § Modern usage

  • Square minute

  • Square second

  • Milliradian
