Heckler & Koch GMG

837 VIEWS

Heckler & Koch GMG


GMG
Type	Automatic grenade launcher
Place of origin	Germany
Service history
Used by	See Users
Wars	War in Afghanistan (2001–present)
Production history
Designed	1992-1995
Manufacturer	Heckler & Koch
Produced	1996-Present
Variants	GMW
Specifications
Mass	28.8 kg Gun, 10.7 kg tripod and 8 kg softmount.
Length	1090 mm
Barrel length	415 mm
Width	226 mm (without ammunition box)
Height	208 mm

Cartridge	40x53 mm
Action	API Blowback
Rate of fire	350 rounds/min
Muzzle velocity	241 m/s
Effective firing range	1500 m
Maximum firing range	2200 m
Feed system	32-round disintegrating, closed-link belt
Sights	Reflex sight and back-up leaf sight

The GMG (Granatmaschinengewehr or "grenade machine gun") is an automatic grenade launcher developed by Heckler & Koch for the German Army. It is also often referred to as GMW or GraMaWa (Granatmaschinenwaffe).^[1]


GMG
Type	Automatic grenade launcher
Place of origin	Germany
Service history
Used by	See Users
Wars	War in Afghanistan (2001–present)
Production history
Designed	1992-1995
Manufacturer	Heckler & Koch
Produced	1996-Present
Variants	GMW
Specifications
Mass	28.8 kg Gun, 10.7 kg tripod and 8 kg softmount.
Length	1090 mm
Barrel length	415 mm
Width	226 mm (without ammunition box)
Height	208 mm

Cartridge	40x53 mm
Action	API Blowback
Rate of fire	350 rounds/min
Muzzle velocity	241 m/s
Effective firing range	1500 m
Maximum firing range	2200 m
Feed system	32-round disintegrating, closed-link belt
Sights	Reflex sight and back-up leaf sight

Design details

It fires 40 mm grenades at a rate of about 340 rounds per minute. The GMG is belt-fed, and can be loaded from either side, making it easy to mount on most platforms. With a variety of day and night sights available, the GMG can be used for most medium range infantry support situations.

The weapon is 1.09 m long and has a 415 mm rifled barrel; the ammunition box has dimensions of 470x160x250 mm. The gun operates on a recoil operated blow back basis. It weighs 29 kg; the tripod is an additional 11 kg.

Testing and operation

The HK GMG was tested in the Yuma desert in Arizona in 1997 in order to compete for future United States contracts.

Users

Canada: 304 ordered.^[2] Designated as the C16 Close Area Suppression Weapon (CASW) and license-built by Rheinmetall Defence Canada.^[3]
Finland^[4] Locally known as 40 KRKK 2005^[5]
Germany^[6]
Greece^[6]
Ireland: Irish Army^[7]
Latvia^[6]^[8]
Lithuania: Lithuanian Armed Forces.^[9]

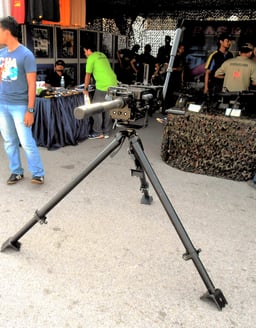

Malaysia: Used by Pasukan Khas Laut (PASKAL) of the Royal Malaysian Navy.^[10]
Netherlands^[11]^[12]
New Zealand^[13]
Norway^[14]
Poland: Wojska Specjalne RP.
Portugal^[6]
Slovenia^[15]
United Kingdom: 44 purchased in 2006 for use in Afghanistan and Iraq.^[16] Designated as L134A1.^[17]
United States: Used by USSOCOM.^[16]
