Four-wheel drive

Four-wheel drive

Four-wheel drive, also called 4×4 ("four by four") or 4WD, refers to a two-axled vehicle drivetrain capable of providing torque to all of its wheels simultaneously. It may be full-time or on-demand, and is typically linked via a transfer case providing an additional output drive shaft and, in many instances, additional gear ranges.

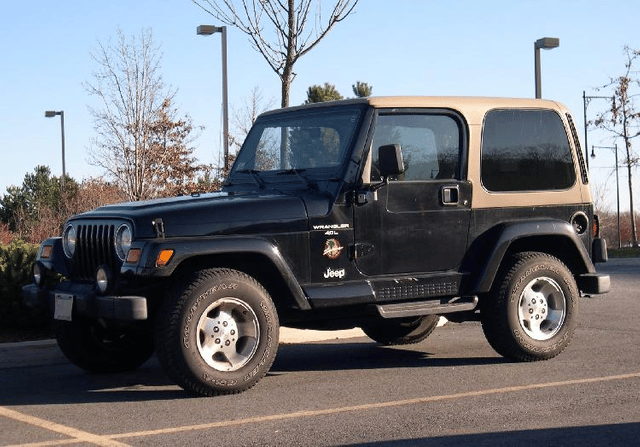

In day-to-day language, "jeep" has become the common noun used for four-wheel drive vehicles resembling the original World War II Jeep.

A four-wheeled vehicle with torque supplied to both axles is described as "all-wheel drive" (AWD). However, "four-wheel drive" typically refers to a set of specific components and functions, and intended off-road application, which generally complies with modern use of the terminology.


Four-wheel drive systems were developed in many different markets and used in many different vehicle platforms. No universally accepted set of terminology describes the various architectures and functions.[2] The terms used by various manufacturers often reflect marketing rather than engineering considerations or significant technical differences between systems.[3][4] SAE International's standard J1952 recommends only the term "all-wheel drive" with additional subclassifications that cover all types of AWD/4WD/4x4 systems found on production vehicles.[5]


Center transfer case sending power from the transmission to the rear axle (right) and front axle (left)

Center transfer case sending power from the transmission to the rear axle (right) and front axle (left)

"Four-by-four" or "4x4" is frequently used to refer to a class of vehicles in general. Syntactically, the first figure indicates the total number of wheels (or more precisely: axle ends), and the second indicates the number that are powered. So, 4x2 means a four-wheel vehicle that transmits engine torque to only two axle ends: the front two in front-wheel drive or the rear two in rear-wheel drive.[6] Similarly, a 6×4 vehicle has three axles, two of which provide torque to two axle ends each. If this vehicle were a truck with dual rear wheels on two rear axles, so actually having ten wheels, its configuration would still be formulated as 6x4. During World War II, the U.S. military would typically use spaces and a capital 'X' – as "4 X 2" or "6 X 4".[7]


Four-wheel drive (4WD) refers to vehicles with two axles providing torque to four axle ends. In the North American market, the term generally refers to a system optimized for off-road driving conditions.[8] The term "4WD" is typically designated for vehicles equipped with a transfer case that switches between 2WD and 4WD operating modes, either manually or automatically.[9]


All-wheel drive (AWD) historically was synonymous with "four-wheel drive" on four-wheeled vehicles, and six-wheel drive on 6×6s, and so on, being used in that fashion at least as early as the 1920s.[10][11] Today in North America, the term is applied to both heavy vehicles and light passenger vehicles. When referring to heavy vehicles, the term is increasingly applied to mean "permanent multiple-wheel drive" on 2×2, 4×4, 6×6, or 8×8 drive-train systems that include a differential between the front and rear drive shafts.[12] This is often coupled with some sort of antislip technology, increasingly hydraulic-based, that allows differentials to spin at different speeds, but still be capable of transferring torque from a wheel with poor traction to one with better. Typical AWD systems work well on all surfaces, but are not intended for more extreme off-road use.[12] When used to describe AWD systems in light passenger vehicles, it refers to a system that applies torque to all four wheels (permanently or on demand) and/or is targeted at improving on-road traction and performance (particularly in inclement conditions), rather than for off-road applications.[8]

Some all-wheel drive electric vehicles solve this challenge using one motor for each axle, thereby eliminating a mechanical differential between the front and rear axles. An example of this is the dual-motor variant of the Tesla Model S, which on a millisecond scale can control the torque distribution electronically between its two motors.[13]


Individual-wheel drive (IWD) is used to describe electric vehicles with each wheel being driven by its own electric motor. This system essentially has inherent characteristics that would be generally attributed to four-wheel drive systems like the distribution of the available torque to the wheels. However, because of the inherent characteristics of electric motors, torque can be negative, as seen in the Rimac Concept One and SLS AMG Electric. This can have drastic effects, as in better handling in tight corners.[14]

The term "IWD" can refer to a vehicle with any number of wheels. For example, the Mars rovers are six-wheel IWD.

Per the SAE International standard J1952, AWD is the preferred term for all the systems described above. The standard subdivides AWD systems into three categories.[5]

Part-time AWD systems require driver intervention to couple and decouple the secondary axle from the primarily driven axle, and these systems do not have a center differential (or similar device). The definition notes that part-time systems may have a low range.

Full-time AWD systems drive both front and rear axles at all times via a center (interaxle) differential. The torque split of that differential may be fixed or variable depending on the type of center differential. This system can be used on any surface at any speed. The definition does not address inclusion or exclusion of a low-range gear.

On-demand AWD systems drive the secondary axle via an active or passive coupling device or "by an independently powered drive system". The standard notes that in some cases, the secondary drive system may also provide the primary vehicle propulsion. An example is a hybrid AWD vehicle where the primary axle is driven by an internal combustion engine and secondary axle is driven by an electric motor. When the internal combustion engine is shut off, the secondary, electrically driven axle is the only driven axle. On-demand systems function primarily with only one powered axle until torque is required by the second axle. At that point, either a passive or active coupling sends torque to the secondary axle.

In addition to the above primary classifications, the J1952 standard notes secondary classifications resulting in a total of eight systems, designated as:

  • Part-time nonsynchro

  • Part-time synchro

  • Full-time fixed torque

  • Full-time variable-torque passive

  • Full-time variable-torque active

  • On-demand synchro variable-torque passive

  • On-demand synchro variable-torque active

  • On-demand independently powered variable-torque active



The Lamborghini Murciélago is an AWD that powers the front via a viscous coupling unit if the rear slips.

The Lamborghini Murciélago is an AWD that powers the front via a viscous coupling unit if the rear slips.

The HMMWV is a 4WD/AWD that powers all wheels evenly (continuously) via a manually lockable center differential, with Torsen differentials for both front and rear.

The HMMWV is a 4WD/AWD that powers all wheels evenly (continuously) via a manually lockable center differential, with Torsen differentials for both front and rear.

To prevent slippage, some vehicles have controls for independently locking center, front, and rear differentials.

To prevent slippage, some vehicles have controls for independently locking center, front, and rear differentials.

Two wheels fixed to the same axle turn at the same speed as a vehicle goes around curves. This either forces one to slip, if possible, to balance the apparent distance covered, or creates uncomfortable and mechanically stressful wheel hop. To prevent this, the wheels are allowed to turn at different speeds using a mechanical or hydraulic differential. This allows one driveshaft to independently drive two output shafts, axles that go from the differential to the wheel, at different speeds.

The differential does this by distributing angular force (in the form of torque) evenly, while distributing angular velocity (turning speed) such that the average for the two output shafts is equal to that of the differential ring gear. When powered, each axle requires a differential to distribute power between the left and right sides. When power is distributed to all four wheels, a third or 'center' differential can be used to distribute power between the front and rear axles.

The described system handles extremely well, as it is able to accommodate various forces of movement and distribute power evenly and smoothly, making slippage unlikely. Once it does slip, however, recovery is difficult. If the left front wheel of a 4WD vehicle slips on an icy patch of road, for instance, the slipping wheel spins faster than the other wheels due to the lower traction at that wheel. Since a differential applies equal torque to each half-shaft, power is reduced at the other wheels, even if they have good traction. This problem can happen in both 2WD and 4WD vehicles, whenever a driven wheel is placed on a surface with little traction or raised off the ground. The simplistic design works acceptably well for 2WD vehicles. It is much less acceptable for 4WD vehicles, because 4WD vehicles have twice as many wheels with which to lose traction, increasing the likelihood that it may happen. 4WD vehicles may also be more likely to drive on surfaces with reduced traction. However, since torque is divided between four wheels rather than two, each wheel receives roughly half the torque of a 2WD vehicle, reducing the potential for wheel slip.

Limiting slippage

Many differentials have no way of limiting the amount of engine power that gets sent to its attached output shafts. As a result, if a tire loses traction on acceleration, either because of a low-traction situation (e.g., driving on gravel or ice) or the engine power overcomes available traction, the tire that is not slipping receives little or no power from the engine. In very low-traction situations, this can prevent the vehicle from moving at all. To overcome this, several designs of differentials can either limit the amount of slip (these are called 'limited-slip' differentials) or temporarily lock the two output shafts together to ensure that engine power reaches all driven wheels equally.

Locking differentials work by temporarily locking together a differential's output shafts, causing all wheels to turn at the same rate, providing torque in case of slippage. This is generally used for the center differential, which distributes power between the front and the rear axles. While a drivetrain that turns all wheels equally would normally fight the driver and cause handling problems, this is not a concern when wheels are slipping.

The two most common factory-installed locking differentials use either a computer-controlled multiplate clutch or viscous coupling unit to join the shafts, while other differentials more commonly used on off-road vehicles generally use manually operated locking devices. In the multiplate clutch, the vehicle's computer senses slippage and locks the shafts, causing a small jolt when it activates, which can disturb the driver or cause additional traction loss. In the viscous coupling differentials, the shear stress of high shaft speed differences causes a dilatant fluid in the differential to become solid, linking the two shafts. This design suffers from fluid degradation with age and from exponential locking behavior. Some designs use gearing to create a small rotational difference that hastens torque transfer.

A third approach to limiting slippage is taken by a Torsen differential, which allows the output shafts to receive different amounts of torque. This design does not provide for traction when one wheel is spinning freely, where no torque exists, but provides excellent handling in less extreme situations. A typical Torsen II differential can deliver up to twice as much torque to the high-traction side before traction is exceeded at the low-traction side.

A fairly recent innovation in automobiles is electronic traction control. It typically uses a vehicle's braking system to slow a spinning wheel. This forced slowing emulates the function of a limited-slip differential, and by using the brakes more aggressively to ensure wheels are being driven at the same speed, can also emulate a locking differential. This technique normally requires wheel sensors to detect when a wheel is slipping, and only activates when wheel slip is detected. Therefore, typically no mechanism exists to actively prevent wheel slip (i.e., locking the differential in advance of wheel slip is not possible); rather, the system is designed to expressly permit wheel slip to occur, and then to attempt to send torque to the wheels with the best traction. If preventing all-wheel slip is a requirement, this is a limiting design.

Operating modes

Selection lever: 2H for two-wheel drive, 4H for high-range 4WD, 4L for low-range 4WD, and N for neutral

Selection lever: 2H for two-wheel drive, 4H for high-range 4WD, 4L for low-range 4WD, and N for neutral

The architecture of an AWD/4WD system can be described by showing its possible operating modes.[2] A single vehicle may have the ability to operate in multiple modes depending on driver selection. The different modes are:

  • Two-wheel drive (mode – In this mode, only one axle (typically the rear axle) is driven. The drive to the other axle is disconnected. The operating torque split ratio is 0:100.

  • Four-wheel drive mode – Here, depending on the nature of torque transfer to the axles, three submodes (below) can be defined.

  • Part-time mode – The front and rear axle drives are rigidly coupled in the transfer case. Since the driveline does not permit any speed differentiation between the axles and would cause driveline wind-up, this mode is recommended only for part-time use in off-road or loose-surface conditions where driveline wind-up is unlikely. Up to full torque could go to either axle, depending on the road conditions and the weight over the axles.

  • Full-time mode – Both axles are driven at all times, but an interaxle differential permits the axles to turn at different speeds as needed. This allows the vehicle to be driven full-time in this mode, regardless of the road surface, without fear of driveline wind-up. With standard bevel-gear differentials, the torque split is 50:50. Planetary differentials can provide asymmetric torque splits as needed. A system that operates permanently in the full-time mode is sometimes called all-the-time 4WD, all-wheel drive, or AWD. If the interaxle differential is locked out, then the mode reverts to a part-time mode.

  • On-demand mode – In this mode, the transfer case operates primarily in the 2WD mode. Torque is transferred to the secondary axle as needed by modulating the transfer clutch from open to a rigidly coupled state, while avoiding any driveline wind-up. The torque modulation may be achieved by active electronic/hydraulic control systems, or by passive devices, based on wheel slip or wheel torque, as described in the section on traction control systems.

In addition to these basic modes, some implementations can combine these modes. The system could have a clutch across the center differential, for example, capable of modulating the front axle torque from a full-time mode with the 30:70 torque split of the center differential to the 0:100 torque split of the 2WD mode.


Late 1800s

In 1893, before the establishment of a modern automotive industry in Britain, English engineer Bramah Joseph Diplock patented a four-wheel drive system for a steam-powered traction engine,[15] including four-wheel steering and three differentials, which was subsequently built. The development also incorporated Bramah's Pedrail wheel system in what was one of the first four-wheel drive automobiles to display an intentional ability to travel on challenging road surfaces. It stemmed from Bramagh's previous idea of developing an engine that would reduce the amount of damage to public roads.

Ferdinand Porsche designed and built a four-wheel-driven electric vehicle for the k. u. k. Hofwagenfabrik Ludwig Lohner & Co. in Vienna in 1899, presented to the public during the 1900 World Exhibition in Paris. The vehicle was a series hybrid car that used an electric hub motor at each wheel, powered by batteries, which were in turn charged by a gasoline-engine generator.[16][17] It was clumsily heavy, and due to its unusual status, the so-called Lohner-Porsche is not frequently given its credit as the first four-wheel driven automobile.


The Jeffery / Nash Quads were the first 4WD vehicles produced in five-figure numbers (1913–1928).

The Jeffery / Nash Quads were the first 4WD vehicles produced in five-figure numbers (1913–1928).

The world's first four-wheel drive car directly powered by an internal-combustion engine, and the first with a front-engine, four-wheel-drive layout was the Dutch Spyker 60 H.P. Commissioned for the Paris to Madrid race of 1903, it was presented that year by brothers Jacobus and Hendrik-Jan Spijker of Amsterdam.[18][19] The two-seat sports car featured permanent four-wheel drive and was also the first car equipped with a six-cylinder engine, as well as four-wheel braking. Later used as a hill-climb racer, it is now an exhibit in the Louwman Museum (the former Nationaal Automobiel Museum) in the Hague, the Netherlands.[20]

Designs for four-wheel drive in America came from the Twyford Company of Brookville, Pennsylvania, in 1905; six were made there around 1906; one still exists and is displayed annually.[21] The Reynolds-Alberta Museum has a four-wheel drive vehicle, named "Michigan", from 1905 in an unrestored storage.

The first four-wheel drive vehicles to go into mass production were built by (what became) the American Four Wheel Drive Auto Company (FWD) of Wisconsin, founded in 1908 [22] (not to be confused with the term "FWD" as an acronym for front-wheel drive). Along with the 2-ton Nash Quad (see below), the 3-ton FWD Model B became a standard military four-wheel drive truck for the U.S. Army in World War I. Some 16,000 FWD Model B trucks were built for the British and American armies during World War I – about half by FWD and the rest by other licensed manufacturers. Only about 20% of the trucks built were four-wheel drives, but the 4x4s were more often on the front lines.[23][24]

About 11,500 of the Jeffery / Nash Quad trucks were built for similar use between 1913 and 1919. The Quad not only came with four-wheel drive and four-wheel brakes, but also featured four-wheel steering.[24] The Quad was one of the first successful four-wheel drive vehicles ever to be made, and its production continued for 15 years with a total of 41,674 units made by 1928.[25]

Daimler-Benz also has a history in four-wheel drive. After the Daimler Motoren Gesellschaft had built a four-wheel driven vehicle called Dernburg-Wagen, also equipped with four-wheel steering, in 1907, that was used by German colonial civil servant, Bernhard Dernburg, in Namibia; Mercedes and BMW, in 1926, introduced some rather sophisticated four-wheel drives, the G1, the G4, and G4 following. Mercedes and BMW developed this further in 1937.


The 1936–1944 Kurogane Type 95 scout car (Japan)

The 1936–1944 Kurogane Type 95 scout car (Japan)

The 1938–1945 GAZ-61 four-wheel drive phaeton (Russia)

The 1938–1945 GAZ-61 four-wheel drive phaeton (Russia)

1940 GAZ-64 jeep-like car (Russia)

1940 GAZ-64 jeep-like car (Russia)

The American Marmon-Herrington Company was founded in 1931 to serve a growing market for moderately priced four-wheel drive vehicles. Marmon-Herrington specialized in converting Ford trucks to four-wheel drive and got off to a successful start by procuring contracts for military and commercial aircraft refueling trucks, 4×4 chassis for towing light weaponry, and an order from the Iraqi Pipeline Company for what were the largest trucks built at the time.[26]

The early Marmon-Herringtons proved to be the exception to the rule — 4WD cars and trucks developed in the 1930s were mainly built for governments, with (future) warfare applications in mind.

Dodge developed its first four-wheel drive truck in 1934 — a military 1½ ton designated K-39-X-4(USA), of which 796 units were built for the U.S. Army in several configurations.[27] Timken supplied front axles and transfer cases, added to militarized a civilian truck. The Timken transfer case was the first part-time design,[28] that allowed the driver to engage or disengage four-wheel drive using a lever inside the cab.[29][30] In spite of the limited 1930s U.S. military budgets, the ’34 truck was liked well-enough that a more modern 1½ ton truck was developed, and 1,700 RF-40-X-4(USA) trucks were produced in 1938, and 292 TF-40-X-4(USA) in 1939.[31][27]

Starting in 1936, Japanese company Tokyu Kurogane Kogyo built roughly 4,700 four-wheel drive roadsters, called the Kurogane Type 95 reconnaissance car, used by the Imperial Japanese Army from 1937 until 1944, during the Second Sino-Japanese War. Three different bodystyles were manufactured - a two-door roadster, a two-door pickup truck, and a four-door phaeton, all equipped with a transfer case that engaged the front wheels, powered by a 1.3-litre, two-cylinder, air-cooled OHV V-twin engine.[32]

The 1937 Mercedes-Benz G5 and BMW 325 4×4 featured full-time four-wheel drive, four-wheel steering, three locking differentials, and fully independent suspension. They were produced because of a government demand for a four-wheel-drive passenger vehicle. The modern G-series/Wolf such as the G500 and G55 AMG still feature some of the attributes, with the exception of fully independent suspension, since it can compromise ground clearance. The Unimog is also a result of Mercedes 4x4 technology.

The first Russian-produced four-wheel drive vehicle, also in part for civilian use, was the GAZ-61, developed in the Soviet Union in 1938. "Civilian use" may be a bit of a misnomer, as most, if not all, were used by the Soviet government and military (as command cars), but the GAZ-61-73 version is the first four-wheel drive vehicle with a normal closed sedan body. Elements of the chassis were used in subsequent military vehicles such as the 1940 GAZ-64 and the 1943 GAZ-67, as well as the postwar GAZ-69, and the properly civilian GAZ-M-72, based on the rear-wheel drive GAZ-20 "Victory" and built from 1955-1958. Soviet civilian life did not allow the proliferation of civilian products such as the Jeep in North America, but through the 1960s, the technology of Soviet 4×4 vehicles stayed on par with British, German, and American models, even exceeding it in some aspects, and for military purposes just as actively developed, produced, and used.

World War II — a leap in AWD proliferation

The 1940–1945 Willys U.S. Jeep

The 1940–1945 Willys U.S. Jeep

Until "go-anywhere" vehicles were needed for the military on a large scale, four-wheel drive and all-wheel drive vehicles had not found their place. The World War II Jeep, originally developed by American Bantam, but mass-produced by Willys and Ford, became the best-known four-wheel drive vehicle in the world during the war.[33] The American Dodge WC series and Chevrolet G506 4x4 variants were also produced by the hundreds of thousands, as well as the Canadian Military Pattern trucks, of which 4x4s were by far the most prevalent of their various driveline configurations. All told, North America built about ​1 1⁄2 million 4x4 driven vehicles during the war,[34][35][36]

Availability of certain critical components, such transfer cases and especially constant-velocity joints affected development;though not used much on commercial vehicles,[1] all-wheel drive vehicles all needed these; and they would use two or three times the number of driven axles, meaning more gears to cut for all the differentials. Produced up to the war by a few specialized firms with limited capacity, from spring 1942, Ford, Dodge, and Chevrolet joined in fabricating these in a quantity more than a 100-fold greater than in 1939.[37]

Although Russia had their own jeep-like vehicle (the GAZ-64) up and running in 1940, a year earlier than the American jeep, in the early years of the war, they relied significantly on Lend-Lease vehicles, provided by the western allies. In 1943, they launched a further-developed version: the GAZ-67.

By contrast, the Axis powers' closest equivalent to the jeep, the VW Kübelwagen, of which only some 50,000 were built, though being equipped with portal gear hubs, only had rear-wheel drive.


A 1945  Willys CJ-2A Jeep

A 1945 Willys CJ-2A Jeep

A first-generation Dodge Power Wagon

A first-generation Dodge Power Wagon

Willys introduced the model CJ-2A in 1945, the first full-production four-wheel drive vehicle for sale in the general marketplace. Due to the ubiquitous World War II Jeep's success, its rugged utilitarianism set the pattern for many four-wheel drive vehicles to come.[38] Hot on its heels, Dodge also started production of the civilian 4WD Power Wagon trucks, for the 1946 model year. Both the Willys and the Dodge were developed directly from their WW II predecessors.

Equally boxy to the Jeep, and also inline-four powered, the Land Rover appeared at the Amsterdam Motor Show in 1948. Originally conceived as a stop-gap product for the struggling Rover car company, despite chronic underinvestment, it succeeded far better than their passenger cars. Inspired by a Willys MB – the ubiquitous WWII “jeep” – that was frequently run off-road on the farm belonging to chief engineer Maurice Wilks, Land Rover developed the more refined yet still off-road capable luxury 4WD Range Rover in the 1970s.

With the acquisition of the "Jeep" name in 1950, Willys had cornered the brand. Its successor, Kaiser Jeep, introduced a revolutionary 4WD wagon called the Wagoneer in 1963. Not only was it technically innovative, with independent front suspension and the first automatic transmission coupled to 4WD, but also it was equipped and finished as a regular passenger automobile.[39] In effect, it was the ancestor of the modern SUV. The luxury Rambler or Buick V8-powered Super Wagoneer produced from 1966 to 1969 raised the bar even higher.

Jensen applied the Formula Ferguson (FF) full-time all-wheel-drive system to 318 units of their Jensen FF built from 1966 to 1971, marking the first time 4WD was used in a production GT sports car.[40] While most 4WD systems split torque evenly, the Jensen split torque roughly 40% front, 60% rear by gearing the front and rear at different ratios.


1969 Jensen FF, world's first 4WD in a production GT sports car

1969 Jensen FF, world's first 4WD in a production GT sports car

A 1987 AWD AMC Eagle wagon, the most popular model in the line

A 1987 AWD AMC Eagle wagon, the most popular model in the line

A 1981 AMC Eagle AWD convertible

A 1981 AMC Eagle AWD convertible

American Motors (AMC) acquired Kaiser's Jeep Division in 1970 and quickly upgraded and expanded the entire line of off-road 4WD vehicles. With its added roadworthiness, the top-range full-sized Grand Wagoneer continued to compete with traditional luxury cars.[41] Partially hand-built, it was relatively unchanged during its production through 1991, even after Chrysler's buyout of AMC.

Subaru introduced the category-expanding Leone in 1972, an inexpensive compact station wagon with a light-duty, part-time four-wheel drive system that could not be engaged on dry pavement. In September, AMC introduced Quadra Trac full-time AWD for the 1973 model year Jeep Cherokee and Wagoneer.[42] Due to full-time AWD, which relieved the driver of getting out to lock hubs and having to manually select between 2WD and 4WD modes, it dominated all other makes in FIA rally competition. Gene Henderson and Ken Pogue won the Press-on-Regardless Rally FIA championship with a Quadra Trac-equipped Jeep in 1972.[43]

American Motors introduced the innovative Eagle for the 1980 model year.[44] These were the first American mass-production cars to use the complete front-engine, four-wheel drive system.[45] The AMC Eagle was offered as a sedan, coupe, and station wagon with permanent automatic all-wheel drive passenger models. The new Eagles combined Jeep technology with an existing and proven AMC passenger automobile platform. They ushered a whole new product category of "sport-utility" or crossover SUV. AMC's Eagles came with the comfort and high-level appointments expected of regular passenger models and used the off-road technology for an extra margin of safety and traction.[46]

The Eagle's thick viscous fluid center differential provided quiet and smooth transfer of power that was directed proportionally to the axle with the greatest traction. This was a true full-time system operating only in four-wheel drive without undue wear on suspension or driveline components. No low range was used in the transfer case. This became the forerunner of the designs that followed from other manufacturers.[47] The automobile press at the time tested the traction of the Eagles and described it as far superior to the Subaru's and that it could beat many so-called off-road vehicles. Four Wheeler magazine concluded that the AMC Eagle was "The beginning of a new generation of cars."[48]

The Eagles were popular (particularly in the snowbelt), had towing capacity, and came in several equipment levels including sport and luxury trims. Two additional models were added in 1981, the subcompact SX/4 and Kammback. A manual transmission and a front axle-disconnect feature were also made available for greater fuel economy. During 1981 and 1982, a unique convertible was added to the line. The Eagle's monocoque body was reinforced for the conversion and had a steel targa bar with a removable fiberglass roof section.[49] The Eagle station wagon remained in production for one model year after Chrysler acquired AMC in 1987. Total AMC Eagle production was almost 200,000 vehicles.

Audi also introduced a permanently all-wheel-driven road-going car, the Audi Quattro, in 1980. Audi's chassis engineer, Jörg Bensinger, had noticed in winter tests in Scandinavia that a vehicle used by the German Army, the Volkswagen Iltis, could beat any high-performance Audi. He proposed developing a four-wheel drive car that would also be used for rallying to improve Audi's conservative image. The Audi Quattro system became a feature on production cars.

In 1987, Toyota also developed a car built for competition in rally campaigns.[50] A limited number of road-going FIA Homologation Special Vehicle Celica GT-Four (known as Toyota Celica All-Trac Turbo in North America) were produced. The All-Trac system was later available on serial production Toyota Camry, Toyota Corolla, and Toyota Previa models.

Some of the earliest mid-engined four-wheel drive cars were the various road-legal rally cars made for Group B homologation, such as the Ford RS200 made from 1984 to 1986. In 1989, niche maker Panther Westwinds created a mid-engined four-wheel-drive, the Panther Solo 2.


In the United States, as of late 2013, AWD vehicles comprised 32% of new light vehicle sales, up 5% since 2008.[51] This is in large part due to the popularity of the crossover.[51] Most crossovers offer the popular technology, in spite of it increasing vehicle price and fuel consumption.[52] Car manufacturers have inundated consumers with marketing proclaiming AWD as a safety feature, although the advantage of AWD over FWD occurs in accelerating, not braking or steering.[53] Tests have shown that though AWD gives improved acceleration in wintery conditions, it does not help with braking.[54]

In 2008, Nissan introduced the GT-R featuring a rear-mounted transaxle. The AWD system requires two drive shafts, one main shaft from the engine to the transaxle and differential and a second drive shaft from the transaxle to the front wheels.[55]


Road racing

Spyker is credited with building and racing the first four-wheel drive racing car, the Spyker 60 HP in 1903.[56][19]

Bugatti created a total of three four-wheel drive racers, the Type 53, in 1932, but the cars were notorious for having poor handling.

Miller produced the first 4WD car to qualify for the Indianapolis 500, the 1938 Miller Gulf Special.

Ferguson Research Ltd. built the front-engined P99 Formula One car that actually won a non-World Championship race with Stirling Moss in 1961. In 1968, Team Lotus raced cars in the Indy 500 and three years later in Formula 1 with the Lotus 56, that had both turbine engines and 4WD, as well as the 1969 4WD-Lotus 63 that had the standard 3-litre V8 Ford Cosworth engine. Matra also raced a similar MS84, and McLaren entered their M9A in the British Grand Prix, while engine manufacturers Ford-Cosworth produced their own version, which was tested but never raced. All these F1 cars were considered inferior to their RWD counterparts, as the advent of aerodynamic downforce meant that adequate traction could be obtained in a lighter and more mechanically efficient manner, and the idea was discontinued, though Lotus tried repeatedly.

Nissan and Audi had success with all-wheel drive in road racing with the former's advent of the Nissan Skyline GT-R in 1989. So successful was the car that it dominated the Japanese circuit for the first years of production, going on to bigger and more impressive wins in Australia before weight penalties eventually levied ade factoban on the car. Most controversial was the win pulled off at the 1990 Macau Grand Prix, where the car led from start to finish. Audi's dominance in the Trans-Am Series in 1988 was equally controversial, as it led to a weight penalty midseason and to a rule revision banning all AWD cars; its dominance in Super Touring eventually led to a FIA ban on AWD system in 1998.

New 2011 24 Hours of Le Mans regulations may revive AWD/4WD in road racing, though such systems are only allowed in new hybrid-powered Le Mans prototypes.[57] One example is the Audi R18 e-tron quattro (winner of 2012 race, the first hybrid/4WD to win Le Mans), using an electric motor in the front axle with the gasoline engine in the rear.[58]

In heavy trucks

Medium-duty and heavy-duty trucks have recently adopted 4×4 drivetrains; 4×4 medium-duty trucks became common after Ford began selling Ford Super Duty trucks. These trucks shared many parts between the light-duty and medium-duty, reducing production costs. The Dana 60 front axle is used on both medium- and light-duty Super Duty trucks. Furthermore, the Big Three share/shared parts between the companies, reducing costs. The Dana S 110 is currently being used for the rear drive, under Ford and Ram's medium-duty trucks. The Dana 110 was also used on the General Motors 4×4s. Ram Trucks began selling medium-duty trucks, 4×4 and 4×2, in 2008. General Motors sold a 4×4 for model years 2005-2009.

In construction equipment

A Case backhoe loader with 4WD

A Case backhoe loader with 4WD

Volvo introduced the Model 646 four-wheel drive backhoe loader in 1977.[59] Case Corporation followed suit in the U.S. in 1987.


In engineering terms, "four-wheel drive" designates a vehicle with power delivered to four wheel ends spread over at least two axles. The term "4×4" (pronounced four by four) was in use to describe North American military four-wheel drive vehicles as early as the 1940s,[60] with the first number indicating the number of wheel ends on a vehicle and the second indicating the number of driven wheels.

Trucks with dual tires on the rear axle and two driven axles are designated as 4×4s despite having six wheels, because the paired rear wheels behave as a single wheel for traction and classification purposes. True 6×6 vehicles, which have three powered axles, are classified as 6×6s regardless of how many wheels they have. Examples of these with two rear, one front axle are the six-wheeled Pinzgauer, which is popular with defense forces around the globe, and 10-wheeled GMC CCKW made famous by the U.S. Army in World War II.

Four-wheeler is a related term applying to all-terrain vehicles, and not to be confused with four-wheel drive. The "four" in the instance referring to the vehicle having four wheels, not necessarily all driven.

Unusual systems

Prompted by a perceived need for a simple, inexpensive all-terrain vehicle for oil exploration in North Africa, French motor manufacturer Citroën developed the 2CV Sahara in 1958. Unlike other 4×4 vehicles, which use a conventional transfer case to drive the front and rear axles, the Sahara had two engines, each independently driving a separate axle, with the rear engine facing backwards. The two throttles, clutches, and gear-change mechanisms could be linked, so the two 12 hp (9 kW) 425 cc (26 cu in) engines could run together, or they could be split and the car driven solely by either engine. Combined with twin fuel tanks and twin batteries (which could be set up to run either or both engines), the redundancy of two separate drive trains meant that they could make it back to civilization even after major mechanical failures. Only around 700 of these cars were built, and only 27 are known to exist today.[61]

BMC experimented with a twin-engined Mini Moke (dubbed the "Twini Moke") in the mid-1960s, but never put it into production. This made advantage of the Mini's 'power pack' layout, with a transverse engine and the gearbox in the engine sump. Simply by fitting a second engine/gearbox unit across the rear, a rudimentary 4×4 system could be produced. Early prototypes had separate gear levers and clutch systems for each engine. Later versions sent for evaluation by the British Army had more user-friendly linked systems.

In 1965, A. J. M. Chadwick patented a 4WD system, GB 1113068, that used hemispherical wheels for an all-terrain vehicle. Twenty years later, B. T. E. Warne, patented, GB 2172558, an improvement on Chadwick's design that did not use differential gear assemblies. By using near-spherical wheels with provision to tilt and turn each wheel co-ordinatively, the driven wheels maintain constant traction. Furthermore, all driven wheels steer, and as pairing of wheels is not necessary, vehicles with an odd number of wheels are possible without affecting the system's integrity. Progressive deceleration is made possible by dynamically changing the front-to-rear effective wheel diameter ratios.

Suzuki Motors introduced the Suzuki Escudo Pikes Peak Edition in 1996. Earlier Suzuki versions were twin engined; from 1996 on, the engine is a twin-turbocharged 2.0-L V6, mated to a sequential six-speed manual transmission.

Nissan Motors has developed a system called E-4WD, designed for cars that are normally front-wheel drive; however, the rear wheels are powered by electric motors. This system was introduced in some variants of the Nissan Cube and Tiida. (This is similar to the system used on the Ford Escape Hybrid AWD.[62])

Chrysler's Jeep Division debuted the twin engined, 670 hp (500 kW) Jeep Hurricane concept at the 2005 North American International Auto Show in Detroit. This vehicle has a unique "crab crawl" capability, which allows it to rotate 360° in place. This is accomplished by driving the left wheels as a pair and right wheels as a pair, as opposed to driving the front and rear pairs. A central gearbox allows one side to drive in the opposite direction from the other. It also has dual Hemi V8s.

Some hybrid vehicles such as the Lexus RX400h provide power to an AWD system through a pair of electric motors, one to the front wheels and one to the rear. In the case of the AWD model version of the Lexus RX400h (and its Toyota-branded counterpart, the Harrier hybrid), the front wheels can also receive drive power directly from the vehicle's gasoline engine, as well as via the electric motors, whereas the rear wheels derive power only from the second electric motor. Transfer of power is managed automatically by internal electronics based on traction conditions and need, making this an all-wheel-drive system.

The 4RM system used in the Ferrari FF in 2011 is unique in that it has a rear transaxle with secondary front transaxle connected directly to the engine. The car operates primarily as a rear-wheel drive vehicle. Clutches in the front transaxle engage when the rear wheels slip. Drive to the front wheels is transmitted through two infinitely variable clutch packs that are allowed to 'slip' to give the required road wheel speeds. The front transaxle has three gears, two forward, and reverse. The two forward gears of the front transmission match the lower four forward gears of the rear transmission. It is not used in higher gears. The connection between this gearbox and each front wheel is via independent haldex-type clutches, without a differential. Due to the difference in ratios, the clutches continually slip and only transmit, at most, 20% of the engine's torque.[63]

Introduction to off-roaders

1941Ford and Willys-OverlandWillys MB / Ford GPWx
1941VolkswagenTyp 128 Schwimmwagenx
1945WillysJeep CJ seriesxx
1946DodgePower Wagonx
1947JeepWillys truckx
1948RoverLand Rover Seriesxx
1951Alfa RomeoAlfa Romeo Mattax
1951Austin Motor CompanyAustin Champx
1951FiatFiat Campagnolax
1951NissanNissan Patrolx
1954ToyotaLand Cruiserx
1956Auto UnionDKW Mungax
1963Kaiser JeepWagoneer (SJ)x
1970British LeylandRange Roverx
1977LadaLada Nivax

Introduction to passenger cars

YearManufacturerModel/SeriesMassSmall series
1938GAZGAZ-61x (238)
1955GAZGAZ M-72x (4677 units)
1966JensenJensen FFx (320 units)
1972SubaruSubaru Leonex
1980American MotorsAMC Eaglex
1980AudiAudi Quattrox
1982RenaultRenault 18 Combi 4×4x
1983FiatFiat Panda 4×4x
1984Alfa RomeoAlfa 33 4×4x
1984MitsubishiMitsubishi Cordia 4WD Turbox
1984VolkswagenVolkswagen Passat Syncrox
1984PeugeotPeugeot 205 T16x (200 units)
1985BMWBMW 325iXx
1985LanciaLancia Delta HF 4WDx
1985MazdaMazda 323 4WDx
1985SuzukiSuzuki Samuraix
1985FordFord Sierra XR4x4x
1986ToyotaToyota Celica GT-Four All-Trac Turbox
1987Mercedes-BenzMercedes W124 4MATICx
1987PorschePorsche 959x (292 units)
1988OpelOpel Vectra 4×4x
1988PontiacPontiac 6000 STE AWDx
1989CitroënCitroën BXx
1990ChevroletChevrolet Astro Full-time AWDx
1991LamborghiniLamborghini Diablo VTx
1991BugattiBugatti EB110x (ca. 300 units)
1992FiatTempra 4×4x
1997Volvo850 AWDx
2001JaguarJaguar X-Typex
2008SaabSaab 9-3 Turbo Xx
2010DaciaDacia Dusterx
2011FerrariFerrari FFx (ca. 800 units)

Systems by design type

Center differential with mechanical lock

  • Alfa Romeo 164 Q4 (central viscous coupling, epicyclic unit and Torsen rear differential)

  • Alfa Romeo 155 Q4 (central epicyclic unit, Ferguson viscous coupling and Torsen rear differential)

  • AMC Eagle (central viscous coupling)

  • Audi - Quattro Coupé, 80, 90, 100 & 200 (locking center and rear differentials) - up to 1987

  • Audi Q7 -double pinion 50/50 with lockup clutch pack

  • BMW 3 series and 5 series in the 1980s - planetary center differential with a 37-63 (front-back) torque split and viscous lock (also in rear differential but not front differential)

  • Chevrolet Rounded-Line K Fleetside, K Stepside, K Blazer, and K Suburban - permanent four-wheel drive (1973-1979) two-speed New Process 203 transfer case, center differential with 50:50 torque split and lock. An Eaton Automatic Differential Lock was optional for the rear hypoid differential.

  • Ford - Escort (RS 2000 16v 4×4 models and RS Cosworth), Sierra Cosworth, Sierra and Granada 4×4 models,

  • Dodge Power Wagon - permanent four-wheel drive (1974-1979) two-speed New Process 203 transfer case, center differential with 50:50 torque split and lock.

  • Ford Expedition (1997–present) and Expedition EL/Max (2007–present) - automatic ControlTrac four-wheel drive with two-speed dual range BorgWarner transfer case and intelligent locking center multi-disc differential

  • Ford Explorer (1995–2010) - automatic ControlTrac four-wheel drive with two-speed dual range BorgWarner transfer case and intelligent locking center multi-disc differential

  • Ford F-Series - permanent four-wheel drive (1974-1979) two-speed New Process 203 transfer case, center differential with 50:50 torque split and lock.

  • GMC Rounded-Line K Wideside, K Fenderside, K Jimmy, and K Suburban - permanent four-wheel drive (1973-1979) two-speed New Process 203 transfer case, center planetary differential with 50:50 torque split and lock. An Eaton Automatic Differential Lock was optional for the rear hypoid differential.

  • H1 & Humvee NVG 242HD AMG open center differential, locked center differential, Neutral, low range locked. Also Torsen1 differential at the front and rear axle, The H1 moved to Torsen2 when ABS was added. The H1 Alpha had optional locking differentials in place of torsens

  • Hummer H2, H3 40/60 planetary with lock

  • Jeep Grand Cherokee, Commander (except models equipped with Quadra-Trac I)

  • Jeep Liberty, Jeep Cherokee (XJ), Dodge Durango (Select-Trac) - NV 242 transfer case- rear drive, open center differential, locked center differential, Neutral, low range

  • Full size Jeeps with Borg Warner QuadraTrac: limited slip center differential, 50/50 locked center differential. Low range could be used in locked or unlocked mode, allowing for use of low range on pavement.

  • Land Rover Defender (and Series III V8 models)

  • Land Rover Discovery/LR3

  • Land Rover Freelander

  • Lada Niva (VAZ-2121) - full-time 4WD using open center differential. Transfer case with high/low range and manual central diff lock. Low range selectable in locked or unlocked mode, allowing use on pavement.

  • Lexus RX300 -viscous coupling across the otherwise open center differential.

  • Lincoln Navigator (1998–2006) - automatic ControlTrac four-wheel drive with two-speed dual range BorgWarner transfer case and intelligent locking center multi-disc differential Navigator and Navigator L (2007–present) use one-speed single range transfer case, no reduction gearing

  • Mercedes-Benz Unimog (locking center and rear with up to 10 low range gears).

  • Mercedes-Benz G-Class (locking center and lockers on both front- and rear axle)

  • Mercedes-Benz GL-Class - 4Matic all-wheel-drive system

  • Mitsubishi Pajero (also known as Montero or Shogun)

  • Porsche Cayenne - 38/62 planetary with lockup clutch pack

  • Range Rover Classic 1970–1995 all full-time 4WD either plate LSD, manual lock or Ferguson viscous centre differential.

  • Range Rover 2nd Gen. 1994–2002 full-time 4WD Ferguson viscous centre differential

  • Suzuki Grand Vitara/Escudo (2005 and later models, excepting the XL-7) -full-time 4WD using limited-slip center differential, off-road 4WD with selectable center differential lock and low range transfer case 4 mode (4h, 4h lock, 4l n), traction control and electronic stability control

  • Subaru - manual transmissions come with 50/50 viscous-type center differential; performance models include a planetary differential with computer regulated lockup; automatic transmission models have an electronically controlled variable transfer clutch.

  • Toyota Land Cruiser

  • Toyota Sequoia (Multi-mode)

  • Volkswagen Touareg -double pinion 50/50 with lockup clutch pack

Torsen center differential

  • Alfa Romeo Q4s - with (Torsen T-3): 156 Crosswagon and Sportwagon 159 Brera, Spider

  • Audis with quattro - various iterations of Torsen, the T-3 starting from the 2007 B7 RS4 80, 90 & Coupé (Typ 89) 100 & 200 A4, S4, RS4 A5 & S5 A6, S6, RS6 A8, S8 Q5, Q7

  • Bentley Continental GT, Bentley Continental Flying Spur (2005) initially Torsen T-2, current have T-3

  • Chevrolet Trailblazer SS Torsen T-3

  • Lexus GX470, Toyota Land Cruiser Prado 120 Torsen T-3

  • Range Rover 3rd Gen. 2002–2009

  • Toyota 4Runner (only Limited V8 model & 2010 Limited V6 model) Torsen T-3 with lock

  • Toyota FJ Cruiser (only manual models) Torsen T-3 with lock

  • Toyota Hilux Surf Torsen T-3 with lock

  • Toyota Land Cruiser 200/2008/V8 Torsen T-3 with lock

  • Toyota Sequoia (only 2005-07 Models)

  • Volkswagen Passenger Cars with 4motion: Volkswagen Passat Torsen T-2 (B5.5 model, not latest B6 model with transverse engine) Volkswagen Phaeton Torsen T-2

Non-locking center differential

  • BMW 3-series and X5 between 2001 and xDrive - planetary center differential with permanent 38-62 (front-back) torque split #

  • Cadillac Escalade, STS AWD, SRX AWD (The first two generations had a viscous clutch on the center differential) #

  • Chrysler 300C AWD#

  • Dodge Ramcharger 1974–1981 - NP203 FullTime 4WD Transfer Case

  • Dodge Magnum, Charger AWD #

  • GMC Yukon Denali, XL Denali, Sierra Denali #

  • Mercedes 4MATIC cars, R class, and ML class (note some MLs had low range) #

  • Plymouth Trail Duster 1974–1981 - NP203 FullTime 4WD Transfer Case

  • Toyota Highlander #

  • Toyota Sienna AWD (-2010 only) #

The above systems ending with "#" function by selectively using the traction control system (via ABS) to brake a slipping wheel.

Multiple-clutch systems

  • Acura RL, RDX (SH-AWD) Right and left axle shaft

  • Acura MDX SH-AWD & VTM4

  • Ford Explorer - Ford's full-time shift-on-the-fly Intelligent 4WD System (I-4WD) on the 2011 Explorer with Terrain Management System and RSC (Roll Stability Control), Curve Control functionality, HDC (Hill Descent Control) and HAA (Hill Ascent Assist).[64][65]

  • Honda Ridgeline

  • Honda Pilot

  • Infiniti FX (ATTESA E-TS)

  • Mercedes-Benz 1st generation 4MATIC (normally rear-drive, automatic clutch in transfer case engages 4WD on demand)

  • Mitsubishi GTO MR/3000GT VR-4

  • Mitsubishi Lancer Evolution Series S-AWC

  • 2010 Mitsubishi Outlander GT S-AWC

  • Mitsubishi Outlander (2003–2006) independent front and rear axle coupling, and Active Center Differential.

  • Nissan GT-R (ATTESA E-TS)

  • Nissan Skyline GT-R (ATTESA E-TS and ATTESA E-TS-PRO) front axle coupling, rear differential locking

  • Nissan Skyline GTS4 (ATTESA E-TS)

  • Nissan A31 Cefiro SE4 (ATTESA E-TS)

  • Porsche 959 PSK front axle coupling, rear differential locking

  • Saab 9-3, Saab 9-5, Saab 9-4X (Saab XWD).

Multi-plate clutch coupling

  • Audi A3 quattro, Audi S3, Audi TT quattro, Audi R8 (with Haldex Traction)

  • BMW xDrive: latest 3 Series, latest 5 series, X3, latest X5 series

  • Chevrolet Equinox (GMPCA)

  • Chrysler Pacifica (BorgWarner ITM3e) (on 2007 model)

  • Dodge Nitro (Quadra-Trac 1)

  • Dodge Caliber

  • Ford: Escape, Freestyle, Edge, Fusion, Five Hundred (Freestyle, FiveHundred Haldex Traction based) (Escape Control Trac II, based)

  • Honda CR-V, HR-V, Element

  • Hyundai Santa Fe, Hyundai Tucson Borg-Warner ITM 3e magnetic multi-plate clutch coupling

  • Hyundai Veracruz IMJ magnetic multi-plate clutch coupling

  • Infiniti: G35x, M35x

  • Jeep Compass (Freedom Drive)

  • Jeep Grand Cherokee and SRT8 NVG 249, 247

  • Land Rover Freelander 2/LR2 (also Haldex Traction)[66]

  • Lamborghini: AWD variants VT series (viscous traction)

  • Lincoln: MKS, MKZ

  • Mazdaspeed6 (a power takeoff unit linked to clutch pack with torque sensitive rear differential)

  • Mazda: Tribute, CX-7, CX-9 (tribute Control Trac II, based)

  • Mercury: Milan, Montego, Mariner (Montego Haldex Traction-based)

  • Mitsubishi Outlander (current generation)

  • Nissan Murano automatic with manual lockup switch

  • Porsche 911 AWD variants (a version of BorgWarner ITM3e) — excluding the 964-series Porsche 911 Carrera 4 31/69 planetary center differential

  • Pontiac Torrent (GMPCA)

  • Subaru low powered automatic transmission models

  • Subaru Legacy, Outback, Impreza, Forester, Tribeca automatic transmission models: mechanical front drive, clutch coupled rear axle.

  • Suzuki: SX4, XL7, Aerio, Swift/Cultus based Subaru Justy. (viscous clutch)

  • Toyota RAV4 - from 2005 (third generation only)

  • Toyota Sienna AWD (2011 and newer only)

  • Volkswagen Golf 4motion, Volkswagen Jetta 4motion, Volkswagen Tiguan 4motion, Volkswagen Passat (B6) 4motion (initially viscous coupling, later with Haldex Traction)

  • Volvo: S40, S60, S80, V50, V70, XC70, XC90 (Visco system until 2003; then all Haldex Traction-based)

Note: the above all function like 2WD when multi-plate clutch coupling is not engaged (with exception of Subaru models), and like 4WD highrange in a part-time 4WD system when the clutch is engaged (usually by computer although some allow manual control). Some in this category have varying degrees of control in the torque distribution between front and rear by allowing some of the clutches in a multi-plate clutch coupling to engage and slip varying amounts. An example of a system like this is the BorgWarner i-Trac(TM) system. Note: the Haldex Traction-based car list was created from the list on Haldex Traction corporate web site: Haldex Cars [67] . A version of the BorgWarner ITM3e system is used on 2006 and up Porsche 911TT's. The Borg-Warner ITM 3e is also used in the 2006-now Hyundai Santa Fe and the Hyundai Tucson. In the Hyundais, the ITM 3e acts like a full-time AWD with 95:5 normal torque split. In extreme conditions, the system can be locked in a 50:50 split via the 4WD LOCK button.


These are vehicles that have no center differential. Since there is no center differential to allow for speed differences between the front and rear wheels when turning, a small amount of tire slippage must occur during turns. When used on slick surfaces, this is not a problem, but when turning on dry pavement, the tires grip, then are forced to slip, then grip again, and so on, until the turn is completed. This causes the vehicle to exhibit a 'hopping' sensation. Using an engaged part-time 4WD system on a hard surface is not recommended, as damage to the drive-line eventually occurs.

  • Chevrolet Rounded-Line K Fleetside, K Stepside, K Blazer, and K Suburban - conventional four-wheel drive (1973-1987) or shift-on-the-move four-wheel drive (1981-1987) two-speed New Process 205 or 208 transfer case. 0:100 torque split in Two High. 50:50 torque split lock in Four High and Four Low. An Eaton Automatic Differential Lock was optional for the rear hypoid differential. Note Rounded-Line "K" Pickups and Utilities were temporarily renamed to "V" for 1987

  • Chevrolet Tahoe, Trailblazer (LT1 and LT3 models only), Tracker, Suburban, Silverado, Avalanche, Colorado, S-10 series, K5 Blazer

  • Dodge Power Wagon (a Ram version with front and rear differential locks)

  • Dodge Ram, Dakota

  • Dodge Nitro (Quadra-Trac 2)

  • Ford F series

  • Ford Explorer (1991-1994) & Sport Trac

  • Ford Ranger

  • Geo Tracker

  • GMC Rounded-Line K Wideside, K Fenderside, K Jimmy, and K Suburban - conventional four-wheel drive (1973-1987) or shift-on-the-move four-wheel drive (1981-1987) two-speed New Process 205 or 208 transfer case. 0:100 torque split in Two High. 50:50 torque split lock in Four High and Four Low. An Eaton Automatic Differential Lock was optional for the rear hypoid differential. Note Rounded-Line "K" Pickups and Utilities were temporarily renamed to "V" for 1987

  • GMC Envoy, Yukon, Sierra, Jimmy, Sonoma

  • Infiniti QX56 (All-mode 4WD) Auto-engages 4WD with slip

  • Isuzu i-series, Isuzu Wizard

  • Jeep Cherokee (Quadra-Trac 2)

  • Jeep Cherokee (XJ), Jeep Comanche, Jeep Grand Cherokee (ZJ), Jeep Liberty (Command-Trac)

  • Jeep Wrangler (Rubicon model has locking front and rear differentials)

  • Kia Sorento (some 2002-2009 models with 2WD/4HI/4LO - mostly LX)

  • Land Rover Series I, II & III (except V8 models)

  • Lincoln Mark LT

  • Mazda B-series

  • Mercedes-Benz G-Class

  • Mitsubishi Raider

  • Nissan Patrol

  • Nissan Terrano II

  • Nissan Armada, Pathfinder (All-mode 4WD) Auto-engages 4WD with slip

  • Nissan Titan, Xterra, Frontier (rear locker an option)

  • Subaru Loyale, GL/DL, BRAT Front/4wd/4wd lo, Justy 4WD

  • Suzuki Sidekick (pre-2005 models, and XL-7), Jimny, Vitara

  • Toyota Hilux

  • Toyota Tacoma (rear locking differential optional)

  • Toyota Tundra TRD

  • Toyota FJ Cruiser (automatic transmission models) (also locking rear differential)

  • Toyota 4Runner (only SR5 and pre 2010 Limited V6 models, 2010 Trail edition V6 models) (also locking rear differential on 2010 V6)

See also

  • Category:All-wheel-drive vehicles

  • Four-wheel drive in Formula One

  • Limited slip differential

  • Off-road vehicle

  • Sport utility vehicle

  • Dune bashing

  • Rock crawling

  • 4WS

  • Transfer case


Citation Linkopenlibrary.orgFront-wheel drive vehicles had not yet become common at that time
Sep 21, 2019, 8:59 PM
Citation Link210.101.116.115Mohan, Sankar (12 June 2000). "All - Wheel Drive / Four - Wheel Drive Systems and Strategies" (PDF). Seoul 2000 FISITA World Automotive Congres.
Sep 21, 2019, 8:59 PM
Citation Linkbooks.google.comAndreev, Alexandr F.; Kabanau, Viachaslau; Vantsevich, Vladimir (2010). Driveline Systems of Ground Vehicles: Theory and Design. CRC Press. p. 34.
Sep 21, 2019, 8:59 PM
Citation Linkwww.thetruthaboutcars.comDykes, Alex. "Alphabet Soup: 4×4 vs 4WD vs AWD Where's the Differential?". thetruthaboutcars.com. Retrieved 18 December 2015.
Sep 21, 2019, 8:59 PM
Citation Linkopenlibrary.org"Surface Vehicle Recommended Practice - J1952 - All-Wheel Drive System Classification". SAE International. October 2013. Cite journal requires |journal= (help)
Sep 21, 2019, 8:59 PM
Citation Link4wheeldrive.about.comWalczak, Jim. "4WD vs 2WD: The Differences Between 4×4 And 4×2". about com. Retrieved 7 August 2010.
Sep 21, 2019, 8:59 PM
Citation Linkbooks.google.nlHyde, Charles K. (2013). Arsenal of Democracy: The American Automobile Industry in World War II. Wayne State University Press. pp. 147–148. ISBN 9780814339527.
Sep 21, 2019, 8:59 PM
Citation Linkwww.consumerreports.orgCollard, Chris. "2WD vs AWD vs 4WD". ConsumerReports.com. Consumer Reports Magazine. Retrieved 15 December 2015.
Sep 21, 2019, 8:59 PM
Citation Linkwww.motortrend.comWilliams, Mark. "4WD vs AWD: What's the Diff". MotorTrend.com. Motor Trend Magazine. Retrieved 15 December 2015.
Sep 21, 2019, 8:59 PM
Citation Linkwww.allisons.orgAllisons.org Automotive History [1]"1929: AEC started to build AWD trucks in conjunction with FWD (UK)"
Sep 21, 2019, 8:59 PM
Citation Linkwww.gmheritagecenter.comMEYER, DONALD E. THE FIRST CENTURY OF GMC TRUCK HISTORY [2] "By December [1939], GMC had orders for more than 4,400 all-wheel drive military trucks."
Sep 21, 2019, 8:59 PM
Citation Linkwww.fourwheeler.comSheppard, Tom (1 September 2005). "Jeep Grand Cherokee 4WD System Breakthrough - 4x... For?". Four Wheeler Network. Retrieved 27 May 2014.
Sep 21, 2019, 8:59 PM
Citation Linkwww.wired.comDavies, Alex (10 October 2014). "The Model D Is Tesla's Most Powerful Car Ever, Plus Autopilot". Wired.com. Retrieved 11 October 2014. Musk said the added efficiency is thanks to the electronic system that will shift power between the front and rear motors from one millisecond to the next, so each is always operating at its most efficient point
Sep 21, 2019, 8:59 PM
Citation Linkwww.carscoops.comhttp://www.carscoops.com/2013/04/harris-helps-us-understand-negative.html
Sep 21, 2019, 8:59 PM
Citation Linkwww.haleydodgedealer.comThe History of 4 Wheel Drive – Haley Dodge
Sep 21, 2019, 8:59 PM
Citation Linkwww.hybridcars.com"History of Hybrid Vehicles". HybridCars.com. 27 March 2006. Archived from the original on 4 September 2009. Retrieved 25 October 2011. See year 1898.
Sep 21, 2019, 8:59 PM
Citation Linkwww.ultimatecarpage.com"Lohner-Porsche Mixte Voiturette". Ultimate Car Page. 19 November 2007. Retrieved 25 October 2011.
Sep 21, 2019, 8:59 PM
Citation Linkwww.of4wd.comHistory of 4WD Sport – OF4WD
Sep 21, 2019, 8:59 PM
Citation Linkwww.seriouswheels.com"1903 Spyker 60 HP". Retrieved 6 May 2011.
Sep 21, 2019, 8:59 PM
Citation Linkwww.louwmanmuseum.nlSpyker 60-hp Four-wheel Drive Racing Car – Louwman Museum
Sep 21, 2019, 8:59 PM
