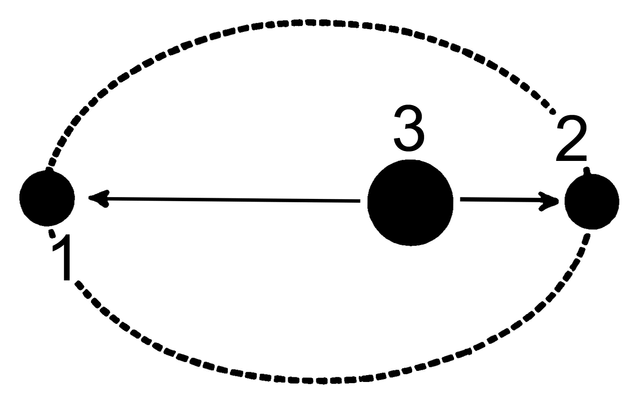

Apsis (Greek: ἁψίς; plural apsides /ˈæpsɪdiːz/, Greek: ἁψῖδες; "orbit") denotes either of the two extreme points (i.e., the farthest or nearest point) in the orbit of a planetary body about its primary body (or simply, "the primary"). The plural term, "apsides," usually implies both apsis points (i.e., farthest and nearest); apsides can also refer to the distance of the extreme range of an object orbiting a host body. For example, the apsides of Earth's orbit of the Sun are two: the apsis for Earth's farthest point from the Sun, dubbed the aphelion; and the apsis for Earth's nearest point, the perihelion (see top figure). (The term "apsis", a cognate with apse, comes via Latin from Greek).^[1]

There are two apsides in any elliptic orbit. Each is named by selecting the appropriate prefix: ap-, apo- (from **ἀπ(ό), (ap(o)-), meaning 'away from'), or peri- (from περί(peri-), meaning 'near') — then joining it to the reference suffix of the "host" body being orbited. (For example, the reference suffix for Earth is -gee, hence apogee and perigee are the names of the apsides for the Moon, and any other (man-made) satellites of the Earth. The suffix for the Sun is -helion, hence aphelion and perihelion are the names of the apsides for the Earth and for the Sun's other planets, comets, asteroids, etc., (see table, top figure).)

According to Newton's laws of motion all periodic orbits are ellipses, including: 1) the single orbital ellipse, where the primary body is fixed at one focus point and the planetary body orbits around that focus (see top figure); and 2) the two-body system of interacting elliptic orbits: both bodies orbit their joint center of mass (or barycenter), which is located at a focus point that is common to both ellipses, (see second figure). For such a two-body system, when one mass is sufficiently larger than the other, the smaller ellipse (of the larger body) around the barycenter comprises one of the orbital elements of the larger ellipse (of the smaller body).

The barycenter of the two bodies may lie well within the bigger body — e.g., the Earth-Moon barycenter is about 75% of the way from Earth's center to its surface. If, compared to the larger mass, the smaller mass is negligible (e.g., for satellites), then the orbital parameters are independent of the smaller mass.

When used as a suffix—that is, -apsis—the term can refer to the two distances from the primary body to the orbiting body when the latter is located: 1) at the periapsis point, or 2) at the apoapsis point (compare both graphics, second figure). The line of apsides denotes the distance of the line that joins the nearest and farthest points across an orbit; it also refers simply to the extreme range of an object orbiting a host body (see top figure; see third figure).

In orbital mechanics, the apsides technically refer to the distance measured between the barycenters of the central body and orbiting body. However, in the case of a spacecraft, the terms are commonly used to refer to the orbital altitude of the spacecraft above the surface of the central body (assuming a constant, standard reference radius).

The words "pericenter" and "apocenter" are often seen, although periapsis/apoapsis are preferred in technical usage.

The words perihelion and aphelion were coined by Johannes Kepler^[4] to describe the orbital motions of the planets around the Sun. The words are formed from the prefixes peri- (Greek: περί, near) and apo- (Greek: ἀπό, away from), affixed to the Greek word for the sun, (ἥλιος, or hēlíou).^[5]

Various related terms are used for other celestial objects. The suffixes -gee, -helion, -astron and -galacticon are frequently used in the astronomical literature when referring to the Earth, Sun, stars, and the galactic center respectively. The suffix -jove is occasionally used for Jupiter, but -saturnium has very rarely been used in the last 50 years for Saturn. The -gee form is also used as a generic closest-approach-to "any planet" term—instead of applying it only to Earth.

During the Apollo program, the terms pericynthion and apocynthion were used when referring to orbiting the Moon; they reference Cynthia, an alternative name for the Greek Moon goddess Artemis.^[6] Regarding black holes, the terms perimelasma and apomelasma (from a Greek root) were used by physicist and science-fiction author Geoffrey A. Landis in a 1998 story;^[7] which occurred before perinigricon and aponigricon (from Latin) appeared in the scientific literature in 2002,^[8] and before peribothron (from Greek bothros, meaning hole or pit) in 2015.^[9]

The suffixes shown below may be added to prefixes peri- or apo- to form unique names of apsides for the orbiting bodies of the indicated host/(primary) system. However, only for the Earth and Sun systems are the unique suffixes commonly used. Typically, for other host systems the generic suffix, -apsis, is used instead.^[10].

The two images below show the positions of perihelion and the aphelion in the orbits of the planets of the Solar System.^[1]

The image below-left features the inner planets: their orbits, orbital nodes, and the points of perihelion (green dot) and aphelion (red dot), as seen from above Earth's northern pole and Earth's ecliptic plane, which is coplanar with Earth's orbital plane. From this orientation, the planets are situated outward from the Sun as Mercury, Venus, Earth, and Mars, with all planets travelling their orbits counterclockwise around the Sun. The reference Earth-orbit is colored yellow and represents the orbital plane of reference. For Mercury, Venus, and Mars, the section of orbit tilted above the plane of reference is here shaded blue; the section below the plane is shaded violet/pink.

The image below-right shows the outer planets: the orbits, orbital nodes, and the points of perihelion (green dot) and aphelion (red dot) of Jupiter, Saturn, Uranus, and Neptune—as seen from above the reference orbital plane, all travelling their orbits counterclockwise. For each planet the section of orbit tilted above the reference orbital plane is colored blue; the section below the plane is violet/pink.

The two orbital nodes are the two end points of the "line of nodes" where a tilted orbit intersects the plane of reference;^[12] here they may be 'seen' where the blue section of an orbit becomes violet/pink.

The reference average distance from Sun to Earth is defined as one astronomical unit, AU. Per this reference, Mars averages slightly more than 1.5 AU from the Sun; Saturn averages almost 10 AU; and Neptune about 30 AU (see chart below)

The chart shows the extreme range—from the closest approach (perihelion) to farthest point (aphelion)—of several orbiting celestial bodies of the Solar System: the planets, the known dwarf planets, including Ceres, and Halley's Comet. The thickness of a vertical line or bar, or the length of a horizontal bar: both correspond to the extreme range of the orbit of the indicated body around the Sun. These extreme distances (between perihelion and aphelion) are the lines of apsides of the orbits of various objects around a host body.

Note, for the reference average distance (one AU) of the Earth from the Sun, Mars averages more than 1.5 AU from the Sun; Saturn almost 10 AU; and Neptune about 30 AU.

Currently, the Earth reaches perihelion in early January, approximately 14 days after the December Solstice. At perihelion, the Earth's center is about 0.98329 astronomical units (AU) or 147,098,070 km (91,402,500 mi) from the Sun's center. In contrast, the Earth reaches aphelion currently in early July, approximately 14 days after the June Solstice. The aphelion distance between the Earth's and Sun's centers is currently about 1.01671 AU or 152,097,700 km (94,509,100 mi). Dates change over time due to precession and other orbital factors, which follow cyclical patterns known as Milankovitch cycles. In the short term, the dates of perihelion and aphelion can vary up to 2 days from one year to another.^[13] This significant variation is due to the presence of the Moon: while the Earth–Moon barycenter is moving on a stable orbit around the Sun, the position of the Earth's center which is on average about 4,700 kilometres (2,900 mi) from the barycenter, could be shifted in any direction from it – and this affects the timing of the actual closest approach between the Sun's and the Earth's centers (which in turn defines the timing of perihelion in a given year).^[14]

Because of the increased distance at aphelion, only 93.55% of the solar radiation from the Sun falls on a given area of land as does at perihelion. However, this fluctuation does not account for the seasons,^[15] as it is summer in the northern hemisphere when it is winter in the southern hemisphere and vice versa. Instead, seasons result from the tilt of Earth's axis, which is 23.4 degrees away from perpendicular to the plane of Earth's orbit around the sun. Winter falls on the hemisphere where sunlight strikes least directly, and summer falls where sunlight strikes most directly, regardless of the Earth's distance from the Sun. In the northern hemisphere, summer occurs at the same time as aphelion. Despite this, there are larger land masses in the northern hemisphere, which are easier to heat than the seas. Consequently, summers are 2.3 °C (4 °F) warmer in the northern hemisphere than in the southern hemisphere under similar conditions.^[16] Astronomers commonly express the timing of perihelion relative to the vernal equinox not in terms of days and hours, but rather as an angle of orbital displacement, the so-called longitude of the periapsis (also called longitude of the pericenter). For the orbit of the Earth, this is called the longitude of perihelion, and in 2000 it was about 282.895°; by the year 2010, this had advanced by a small fraction of a degree to about 283.067°.^[17]

For the orbit of the Earth around the Sun, the time of apsis is often expressed in terms of a time relative to seasons, since this determines the contribution of the elliptical orbit to seasonal variations. The variation of the seasons is primarily controlled by the annual cycle of the elevation angle of the Sun, which is a result of the tilt of the axis of the Earth measured from the plane of the ecliptic. The Earth's eccentricity and other orbital elements are not constant, but vary slowly due to the perturbing effects of the planets and other objects in the solar system. See Milankovitch cycles. On a very long time scale, the dates of the perihelion and of the aphelion progress through the seasons, and they make one complete cycle in 22,000 to 26,000 years. There is a corresponding movement of the position of the stars as seen from Earth that is called the apsidal precession. (This is closely related to the precession of the axis.) The dates and times of the perihelions and aphelions for several past and future years are listed in the following table:^[18]

The following table shows the distances of the planets and dwarf planets from the Sun at their perihelion and aphelion.^[19]

These formulae characterize the pericenter and apocenter of an orbit:

While, in accordance with Kepler's laws of planetary motion (based on the conservation of angular momentum) and the conservation of energy, these two quantities are constant for a given orbit:

where:

Note that for conversion from heights above the surface to distances between an orbit and its primary, the radius of the central body has to be added, and conversely.

The arithmetic mean of the two limiting distances is the length of the semi-major axis a. The geometric mean of the two distances is the length of the semi-minor axis b.

The geometric mean of the two limiting speeds is
