Walther PP

Walther PP

The Walther PP (Polizeipistole, or police pistol) series pistols are blowback-operated semi-automatic pistols, developed by the German arms manufacturer Carl Walther GmbH Sportwaffen.[5]

It features an exposed hammer, a traditional double-action trigger mechanism,[6] a single-column magazine, and a fixed barrel that also acts as the guide rod for the recoil spring. The series includes the Walther PP, PPK, PPK/S, and PPK/E models. The Walther TPH pocket pistol is a smaller calibre pistol introduced in 1971 identical in handling and operation to the PPK.

Various PP series are manufactured in Germany, France and the United States.[7] In the past, the PPK version has been manufactured by Walther in its own factory in Germany, as well as under licenses by Manurhin in Alsace, France, Interarms in Alexandria, Virginia, US and by Smith & Wesson in Houlton, Maine, US. Since 2013, PPK and PPK/S models have been built in Fort Smith, Arkansas, at the factory of US-based subsidiary Walther Arms, Inc.[8][9]

The PP and the PPK were among the world's first successful double action semi-automatic pistols. They are still manufactured by Walther and have been widely copied. The design inspired other pistols, among them the Soviet Makarov, the Hungarian FEG PA-63, the Polish P-64, the American Accu-Tek AT-380 II, and the Argentinian Bersa Thunder 380. The PP and PPK were both popular with European police and civilians for being reliable and concealable. During World War II, they were issued to the German military (officers), including the Luftwaffe, as well as the police.[1]

Walther PP
TypeSemi-automatic pistol
Place of originGermany[1]
Service history
In service1935–Present
Used bySee Users
WarsChaco War[2]
World War II
Lebanese Civil War[3]
Syrian Civil War[4]
Production history
DesignerCarl Walther Waffenfabrik
Designed1929
ManufacturerCarl Walther GmbH Sportwaffen
Produced1929–present
VariantsPPK, PPK-L, PPKS, PP-Super, PPK/E, PP Sport and Walther TPH
Specifications
Mass665 g (23.5 oz) (PP 9×17mm Short/.380 ACP)
660 g (23 oz) (PP 7.65×17mm Browning SR/.32 ACP)
675 g (23.8 oz) (PP .22 LR)
590 g (21 oz) (PPK 9×17mm Short/.380 ACP)
590 g (21 oz) (PPK 7.65×17mm Browning SR/.32 ACP)
560 g (20 oz) (PPK .22 LR)
635 g (22.4 oz) (PPK/S 9×17mm Short/.380 ACP)
630 g (22 oz) (PPK/S 7.65×17mm Browning SR/.32 ACP)
645 g (22.8 oz) (PPK/S .22 LR)
480 g (17 oz) (PPK-L 7.65×17mm Browning SR/.32 ACP)
450 g (16 oz) (PPK-L .22 LR)
780 g (28 oz) (PP-Super)
Length170 mm (6.7 in) (PP)
155 mm (6.1 in) (PPK)
156 mm (6.1 in) (PPK/S)
155 mm (6.1 in) (PPK-L)
176 mm (6.9 in) (PP-Super)
Barrel length98 mm (3.9 in) (PP)
83 mm (3.3 in) (PPK, PPK/S, PPK-L)
92 mm (3.6 in) (PP-Super)
Width30 mm (1.2 in) (PP, PPK/S, PPK-E)
25 mm (1.0 in) (PPK)
35 mm (1.4 in) (PP-Super)
Height109 mm (4.3 in) (PP)
100 mm (3.9 in) (PPK)
110 mm (4.3 in) (PPK/S)
113 mm (4.4 in) (PPK-E)
124 mm (4.9 in) (PP-Super)

Cartridge7.65×17mm Browning SR (.32 ACP)
9×17mm Short (.380 ACP)
.22 Long Rifle
6.35×15mm Browning SR (.25 ACP)
9×18mm Ultra (PP-Super)
ActionStraight blowback
Muzzle velocity256 m/s (840 ft/s) (PP 9×17mm Short/.380 ACP)
320 m/s (1,049.9 ft/s) (PP 7.65×17mm Browning SR/.32 ACP)
305 m/s (1,000.7 ft/s) (PP .22 LR)
244 m/s (800.5 ft/s) (PPK/PPK/S 9×17mm Short/.380 ACP)
308 m/s (1,010.5 ft/s) (PPK/PPK/S/PPK-L 7.65×17mm Browning SR/.32 ACP)
280 m/s (918.6 ft/s) (PPK/PPK/S/PPK-L .22 LR)
325 m/s (1,066.3 ft/s) (PP-Super)
Feed systemMagazine capacity:
PP: 10 (.22 LR), 8 (.32 ACP)
7 (.380)
PPK: 9 (.22 LR), 7 (.32 ACP)
6 (.380).
SightsFixed iron sights, rear notch and front blade
Walther PPK/E
TypeSemi-automatic pistol
Production history
Designed2000
ManufacturerFegyver-és Gépgyár
Specifications
Length155 mm (6.1 in)
Barrel length83 mm (3.3 in)
Width30 mm (1.2 in)
Height113 mm (4.4 in)

Cartridge.22 LR, .32 ACP, and .380 ACP
ActionStraight blowback
SightsFixed iron sights, rear notch and front blade

PP Series

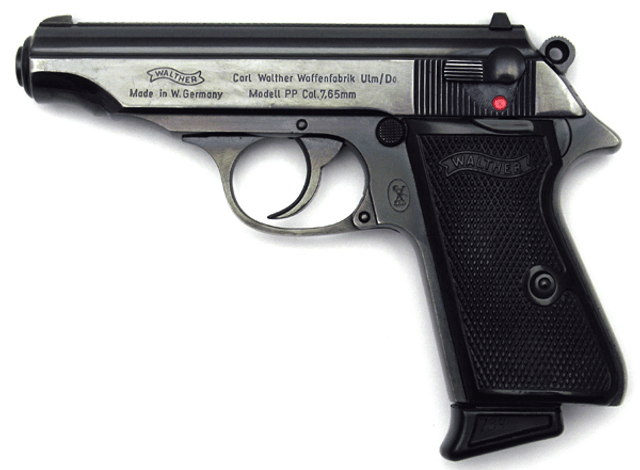

Walther PP .32 made in Germany in 1968

Walther PP .32 made in Germany in 1968

The original PP (Polizeipistole) was released in 1929.[1] It was designed for police use and was used by police forces in Europe in the 1930s and later.[1] The semi-automatic pistol operated using a simple blowback action.[1] The PP was designed with several safety features, some of them innovative, including an automatic hammer block, a combination safety/decocker and a loaded chamber indicator.[1]

PPK

The most common variant is the Walther PPK, a smaller version of the PP with a shorter grip, barrel and frame, and reduced magazine capacity. A new, two-piece wrap-around grip panel construction was used to conceal the exposed back strap. The smaller size made it more concealable than the original PP and hence better suited to plainclothes or undercover work. It was released in 1930.

"PPK" is an abbreviation for Polizeipistole Kriminalmodell (police pistol - detective model). While it's often thought to be "kurz" (German: short) referring to the police pistol with shorter barrel and frame, the manufacturer's selection of the name "Kriminal" appears in early original advertising brochures from Walther and the 1937 GECO German catalog.[10]

Adolf Hitler committed suicide with his PPK (.32 ACP/7.65mm) in the Führerbunker in Berlin.[11] South Korean dictator Park Chung-hee was shot and killed by Kim Jae-gyu, using the Walther PPK. The Walther PPK pistol is famous as fictional secret agent James Bond's gun in many of the films and novels: Ian Fleming's choice of the Walther PPK directly influenced its popularity and its notoriety.[12][13] Fleming had given Bond a .25 Beretta 418 pistol in early novels, but switched to the PPK in Dr. No on the advice of firearms expert Geoffrey Boothroyd,[14] though the actual guns carried by Bond and Felix Leiter in the film were, in fact, Walther PPs.[13][15][16]

Actor Jack Lord was presented with a gold plated one with ivory handgrips.

Singer Elvis Presley owned a silver-finish PPK, inscribed "TCB" ("taking care of business").[17]

PPK/S

The PPK/S was developed following the enactment of the Gun Control Act of 1968 (GCA68) in the United States, the pistol's largest market.[18] One of the provisions of GCA68 banned the importation of pistols and revolvers not meeting certain requirements of length, weight, and other "sporting" features into the United States. The PPK failed the "Import Points" test of the GCA68 by a single point. Walther addressed this situation by combining the PP's frame with the PPK's barrel and slide to create a pistol that weighed slightly more than the PPK.[6] The additional ounce or two of weight of the PPK/S compared to the PPK was sufficient to provide the extra needed import points.

Because United States law allowed domestic production (as opposed to importation) of the PPK, manufacture began under license in the U.S. in 1983; this version was distributed by Interarms. The version currently manufactured by Walther Arms in Fort Smith, Arkansas has been modified (by Smith & Wesson) by incorporating a longer grip tang (S&W calls it "extended beaver tail"),[19] better protecting the shooter from slide bite, i.e., the rearward-traveling slide's pinching the web between the index finger and thumb of the firing hand, which could be a problem with the original design for people with larger hands or an improper grip, especially when using "hotter" cartridge loads. The PPK/S is made of stainless steel.[6]

The PPK/S differs from the PPK as follows:

  • Overall height: 104 mm (4.1 in) vs. 100 mm (3.9 in)

  • Weight: the PPK/S weighs 51 g (1.8 oz) more than the PPK

  • The PPK/S magazine holds one additional round, in both calibers.[19]

The PPK/S and the PPK are offered in the following calibers: .32 ACP (with capacities of 8 for PPK/S and 7 for PPK); or .380 ACP (PPK/S: 7; PPK: 6). The PPK/S is also offered in .22 LR with capacity of 10 rounds.

PPK-L

A Walther PPK-L manufactured in 1966

A Walther PPK-L manufactured in 1966

In the 1960s, Walther produced the PPK-L, which was a light-weight variant of the PPK. The PPK-L differed from the standard, all steel PPK in that it had an aluminium alloy frame. These were only chambered in 7.65mm Browning (.32 ACP) and .22 LR because of the increase in felt recoil from the lighter weight of the gun. All other features of the postwar production PPK (brown plastic grips with Walther banner, high polished blue finish, lanyard loop, loaded chamber indicator, 7+1 magazine capacity and overall length) were the same on the PPK-L.

PP Super

First marketed in 1972, this was an all-steel variant of the PP chambered for the 9×18mm Ultra cartridge. Designed as a police service pistol, it was a blowback operated, double-action pistol with an external slide-stop lever and a firing-pin safety. A manual decocker lever was on the left side of the slide; when pushed down, it locked the firing pin and released the hammer. When the 9×19mm Parabellum was chosen as the standard service round by most of the German police forces, the experimental 9mm Ultra round fell into disuse. Only about 2,000 PP Super pistols were sold to German police forces in the 1970s, and lack of sales caused Walther to withdraw the PP Super from their catalogue in 1979.[20]

PPK/E

A Stainless PPK made under License by Ranger Arms

A Stainless PPK made under License by Ranger Arms

At the 2000 Internationale Waffen-Ausstellung (IWA—International Weapons Exhibition) in Nuremberg, Walther announced a new PPK variant designated as the PPK/E.[21][22] The PPK/E resembles the PPK/S and has a blue steel finish; it is manufactured under license by FEG in Hungary. Despite the resemblance between the two, certain PP-PPK-PPK/S parts, such as magazines, are not interchangeable with the PPK/E. Official factory photographs do not refer to the pistol's Hungarian origins. Instead, the traditional Walther legend ("Carl Walther Waffenfabrik Ulm/Do.") is stamped on the left side of the slide. The PPK/E is offered in .22 LR, .32 ACP, and .380 ACP calibers.

Manufacturing

Walther's original factory was located in Zella-Mehlis in the "Land" (state) of Thuringia. As that part of Germany was occupied by the Soviet Union following World War II, Walther fled to West Germany, where they established a new factory in Ulm. For several years following the war, the Allied powers forbade any manufacture of weapons in Germany. As a result, in 1952, Walther licensed production of the PP series pistols to a French company, Manufacture de Machines du Haut-Rhin, also known as Manurhin. Manurhin made the parts but the pistol was assembled either at St. Etienne arsenal (marked "Made in France") or by Walther in Ulm (marked "Made in West Germany" and having German proof-marks). The French company continued to manufacture the PP series until 1986.

In 1978, Ranger Manufacturing of Gadsden, Alabama was licensed to manufacture the PPK and PPK/S; this version was distributed by Interarms of Alexandria, Virginia. Ranger made versions of the PPK/S in both blued and stainless steel and chambered in .380 ACP and only made copies chambered in .32 ACP from 1997 to 1999. This license was eventually canceled in 1999. Walther USA briefly made PPKs and PPK/Ss in Springfield, Massachusetts. From 2002, Smith & Wesson (S&W) began manufacturing the PPK and PPK/S under license at their plant in Houlton, Maine until 2013. In February 2009, S&W issued a recall for PPKs it manufactured for a defect in the hammer block safety.[23] In 2018 Walther Arms began producing them again at their new US manufacturing plant in Fort Smith, Arkansas and new ones are being shipped as of March 2019.

Users

See also

  • Bersa Thunder 380

  • List of pistols

  • Makarov PM

  • Pistol Carpați Md. 1974

  • Table of handgun and rifle cartridges

  • Type 64 pistol

  • FEG PA-63
