Scanner Access Now Easy

Scanner Access Now Easy

Scanner Access Now Easy (SANE) is an application programming interface (API) that provides standardized access to any raster image scanner hardware (flatbed scanner, handheld scanner, video- and still-cameras, frame grabbers, etc.).

The SANE API is public domain and its discussion and development is open to everybody. It is commonly used on Linux.

SANE
Original author(s)David Mosberger-Tang
Andy Beck
Initial releaseNovember 27, 1996 (1996-11-27)[1]
Stable release
1.0.28 / 31 July 2019 (2019-07-31)
Repository
  • gitlab.com/sane-project [20]
Operating systemMicrosoft Windows, Linux, UNIX, OS/2
LicenseGNU GPLv2 or later[2] (frontend programs),
weakened[3] GPLv2 or later[4] (backend libraries),
Public domain[5] (SANE standard: API & network protocol) [6]
Websitewww.sane-project.org [21]

Architecture

SANE differs from TWAIN in that it is cleanly separated into "front ends" (user programs) and "back ends" (scanner drivers). Whereas a TWAIN driver handles the user interface as well as communications with the scanner hardware, a SANE driver only provides an interface with the hardware and describes a number of "options" which drive each scan. These options specify parameters such as the resolution of the scan, the scan area, colour model, etc. Each option has a name, and information about its type, units, and range or possible values (e.g., enumerated list). By convention there are several "well known" options that front ends can supply using convenient GUI interaction e.g., the scan area options can be set by dragging a rectangular outline over a preview image. Other options can be presented using GUI elements appropriate to their type e.g., sliders, drop-down lists, etc.

One consequence of this separation is that network scanning is easily implemented with no special handling in either the front ends or back ends. On a host with a scanner, the saned daemon runs and handles network requests. On client machines a "net" back end (driver) connects to the remote host to fetch the scanner options, and perform previews and scans. The saned daemon acts as a front end locally, but simply passes requests and data between the network connections and the local scanner. Similarly, the "net" back end passes requests and data between the local front end and the remote host.

Various types of unsupervised batch scanning are also possible with a minimum of support needed in the back end (driver). Many scanners support the attachment of document feeders which allow a large number of sheets of paper to be automatically scanned in succession. Using the SANE API, the front end simply has to "play back" the same set of options for each scan, driving the document feed in between scans to load the next sheet of paper. The front end only has to obtain the set of options from the user once.

Graphical user interfaces

Several user interfaces have been written to combine SANE with an easy user method of controlling it.

XSane

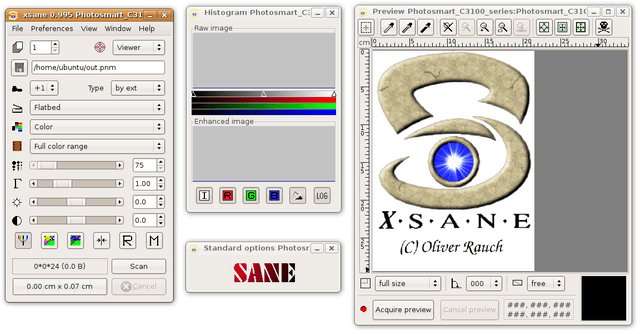

XSane is a graphical front end for SANE written by Oliver Rauch. It is available for Microsoft Windows, Linux, UNIX, and OS/2 and is licensed under the GNU General Public License (GPL).[7] The Windows version only allows a Windows computer to access a scanner that is attached to a Unix, OS/2 or Mac OS X network computer, but not generally to the local Windows computer. Only the "complete" sane-back-ends versions will possibly work with some scanner models connected locally.[8]

Simple Scan

Simple Scan 2.32.0

Simple Scan 2.32.0

Simple Scan is a simplified GUI using SANE that is intended to be easier to use and better integrate into the GNOME desktop than XSane. It was initially written for Ubuntu and is maintained by Robert Ancell of Canonical Ltd. for Linux. Simple Scan was first fielded as part of Ubuntu 10.04 Lucid Lynx and is also used in Lubuntu and Xubuntu.[9][10][11][12][13]

gscan2pdf

gscan2pdf is an interface for scanning documents to PDF on the GNOME desktop that uses SANE to communicate with the scanner. It is available under the GPL. It includes common editing tools, e.g., for rotating or cropping pages. It is also able to perform OCR using several optional OCR tools and save a searchable PDF. PDF files can be further downsampled upon saving.[14]

SwingSane

SwingSane is a cross-platform, Java front end for SANE, written and maintained by Roland Quast. It is available for Microsoft Windows, Linux, Mac OS X and is licensed under the Apache 2.0 License.[15] The source code for the project can also be adapted for use with an existing Swing application.[16]

See also

  • Image and Scanner Interface Specification (ISIS) — Open industry standard interface.

  • TWAIN — Software API for local drivers that are bundled with control GUI.

  • Windows Image Acquisition (WIA) — Proprietary API from Microsoft.
