A PHY, an abbreviation for "physical layer", is an electronic circuit, usually implemented as a chip, required to implement physical layer functions of the OSI model.
A PHY connects a link layer device (often called MAC as an acronym for medium access control) to a physical medium such as an optical fiber or copper cable. A PHY device typically includes both Physical Coding Sublayer (PCS) and Physical Medium Dependent (PMD) layer functionality.[1]
Applications
Ethernet physical transceiver

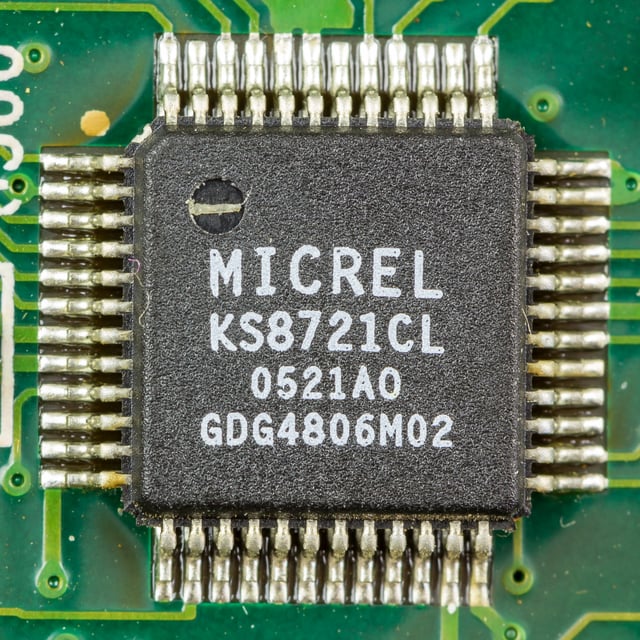

Micrel KS8721CL - 3.3V Single Power Supply 10/100BASE-TX/FX MII Physical Layer Transceiver

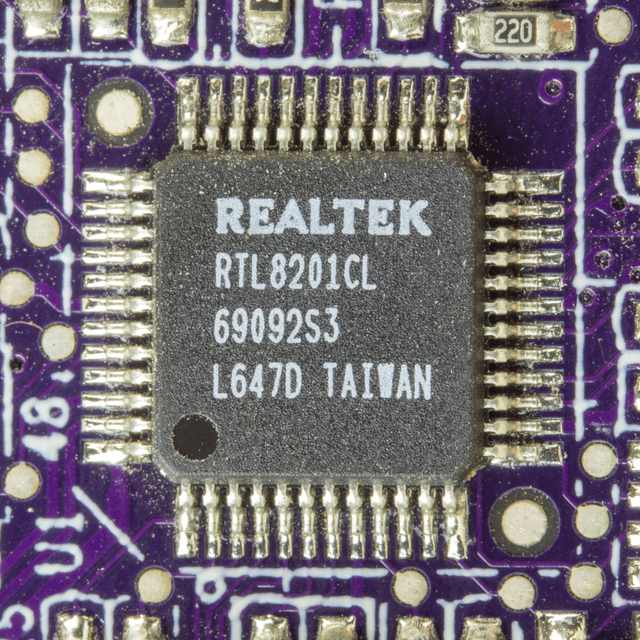

The Ethernet PHY is a component that operates at the physical layer of the OSI network model. It implements the Ethernet physical layer portion of the 1000BASE-T, 100BASE-TX, and 10BASE-T standards.
A PHY chip (PHYceiver) is commonly found on Ethernet devices. Its purpose is to provide analog signal physical access to the link. It is usually with a Media Independent Interface (MII) interfaced to a MAC chip in a microcontroller or other system that takes care of the higher layer functions.
More specifically, the Ethernet PHY is a chip that implements the hardware send and receive function of Ethernet frames; it interfaces between the analog domain of Ethernet's line modulation and the digital domain of link-layer packet signaling.[2] The PHY usually does not handle MAC addressing, as that is the link layer's job. Similarly, Wake-on-LAN and Boot ROM functionality is implemented in the network interface card (NIC), which may have PHY, MAC, and other functionality integrated into one chip or as separate chips.
Other applications
Wireless LAN or Wi-Fi: The PHY portion consists of the RF, mixed-signal and analog portions, that are often called transceivers, and the digital baseband portion that use digital signal processor (DSP) and communication algorithm processing, including channel codes. It is common that these PHY portions are integrated with the media access control (MAC) layer in System-on-a-chip (SOC) implementations. Other similar wireless applications are 3G/4G/LTE, WiMAX, UWB, etc.
Universal Serial Bus (USB): A PHY chip is integrated into most USB controllers in hosts or embedded systems and provides the bridge between the digital and modulated parts of the interface.
IrDA: The Infrared Data Associations (IrDA) specification includes an IrPHY specification for the physical layer of the data transport.
Serial ATA (SATA): Serial ATA controllers use a PHY.
