Italian aircraft carrier Trieste

Italian aircraft carrier Trieste

Trieste (L9890) is a Landing Helicopter Dock (LHD) of the Italian Navy.[13] It is expected to replace the Giuseppe Garibaldi around 2022.[14]

The ship will be equipped with heavy and medium helicopters (EH101 and NH90 respectively) and Lockheed Martin F-35B Lightning II aircraft.[15] It will have a floatable dock below the hangar level able to accommodate amphibious landing vessels such as LCM (new Cantieri Navali Vittoria LCM23 type), LCAC, and newer L-CAT (Landing Catamaran) vessels. It also can carry Ariete MBT, B1 Centauro tank destroyers, and 300 soldiers. Its base will be in Taranto.[16][17]

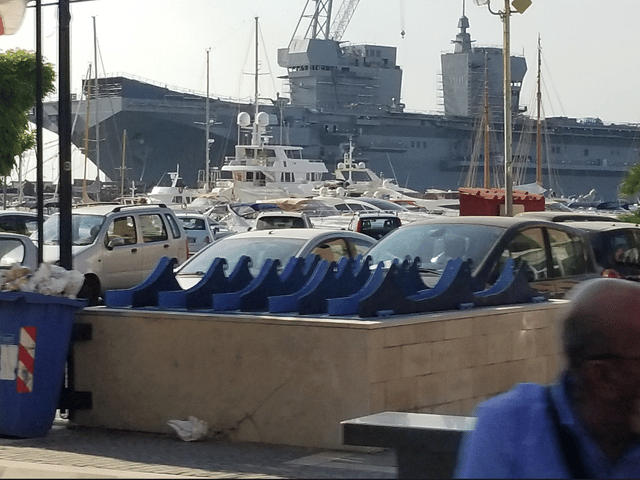

The unit is being built at Fincantieri’s Castellamare di Stabia facility near Naples. The first cut was 12 January 2017 and completed construction of the hull on 25 May 2019,[10] while the official delivery to the Italian Navy will be around the first half of 2022.[16] It is the largest Italian military ship built after the Second World War.[18]

It will be the largest vessel of the Italian navy along with Cavour.[19][20]

History
Italy
Name:Trieste
Namesake:Trieste, a city and seaport in northeastern Italy
Awarded:3 July 2015
Builder:Fincantieri, Castellammare di Stabia, Napoli, Italy
Cost:€ 1.1 billion [1][2]
Laid down:20 February 2018[3]
Launched:25 May 2019[4]
Sponsored by:Laura Mattarella
Commissioned:June 2022 (expected)
Status:Under construction
Notes:Hull number 6260 [5] - L9890 [6]
General characteristics
Class and type:Trieste
Type:Landing Helicopter Dock [7]
Displacement:
  • 33,000 t (32,000 long tons) full-load [8]
  • 25,816 t (25,408 long tons) [9]
Length:
  • 245 m (803 ft 10 in) LOA[10]
  • 213.4 m (700 ft) LPP [11]
Beam:36 m (118 ft 1 in)
Depth:7.2 m (23 ft 7 in)
Propulsion:
  • CODOG scheme + electric engines
  • 2 x Rolls-Royce MT30 gas turbines providing 76,000 kW (102,000 hp) [9]
  • 2 x diesel engines M.A.N. 20V32/44CR, 24,000 kW (32,000 hp) [9]
  • 4 x diesel engines generators M.A.N. 9L32/44CR, 20,960 kW (28,110 hp)
  • 2 x 2,250 kW (3,020 hp) electric engines
  • 2 x shaft
Speed:
  • 25 knots (46 km/h; 29 mph) on TAGs
  • 18 knots (33 km/h; 21 mph) on diesel engines
  • 10 kn (19 km/h; 12 mph) on electric engines
Range:7,000 nmi (13,000 km; 8,100 mi) to 16 knots (30 km/h; 18 mph)
Endurance:30 days
Complement:
  • 460 crew
  • 604 marines component
  • (max 1043 + 21)
Sensors and
processing systems:
  • Leonardo CMS SADOC Mk4
  • 1 x Leonardo Kronos Dual Band, AESA 3D DBR 4FF, only with X-band radar (Kronos StarFire) [12]
  • 1 x Leonardo Kronos Power Shield, AESA LRR L-band radar
  • 1 x Leonardo conformal IFF
  • 1 x Leonardo Black Snake, anti torpedo towed array sonar
  • 1 x TACAN
  • 1 x PAR (Precision Approach Radar) Leonardo SPN-720
Armament:
  • 3 × Oto Melara 76/62 mm Strales anti-aircraft guns
  • 3 × Oto Melara KBA 25/80 mm, remotized
  • 2 x Oto Melara ODLS-20 (decoys launchers)
  • FFBNW 2x8-cell SYLVER A50 VLS for 16 Aster 15 and 30 missiles or 32 CAMM ER missiles
Aircraft carried:usually 12 × AgustaWestland AW101 or combination with SH90A, AgustaWestland AW129D and F-35B;
Notes:
  • 50 m (164 ft 1 in) x 15 m (49 ft 3 in) dock, for 4 x 70 t LCU or 1 LCAC
  • 55 m (180 ft 5 in) x 18 m (59 ft 1 in) garage decks for vehicles (1,200 m (3,937 ft 0 in) for parking vehicles
  • 21 m (68 ft 11 in) (25 m (82 ft 0 in)) x 107 m (351 ft 1 in) hangar (up to 2,600 m2) for up to 14 AgustaWestland AW101 or combination with SH90A, AgustaWestland AW129D and F-35B (or 530 m (1,738 ft 10 in) for parking vehicles)
  • flight deck length 230 m (754 ft 7 in) and wide 36 m (118 ft 1 in)
  • flight deck with up to 9 spots for AW101 or combination with SH90A helicopters, AgustaWestland AW129D
  • Role 2E NATO standard hospital ( 700 m2 ) with 28 beds
