Golden Gate Bridge
Golden Gate Bridge
The Golden Gate Bridge is a suspension bridge spanning the Golden Gate, the one-mile-wide (1.6 km) strait connecting San Francisco Bay and the Pacific Ocean. The structure links the American city of San Francisco, California – the northern tip of the San Francisco Peninsula – to Marin County, carrying both U.S. Route 101 and California State Route 1 across the strait. The bridge is one of the most internationally recognized symbols of San Francisco, California, and the United States. It has been declared one of the Wonders of the Modern World by the American Society of Civil Engineers.
The Frommer's travel guide describes the Golden Gate Bridge as "possibly the most beautiful, certainly the most photographed, bridge in the world." At the time of its opening in 1937, it was both the longest and the tallest suspension bridge in the world, with a main span of 4,200 feet (1,280 m) and a total height of 746 feet (227 m). Today, the Golden Gate Bridge is neither the longest nor the tallest in the world, but remains the tallest bridge in the United States.
Before the bridge was built, the only practical short route between San Francisco and what is now Marin County was by boat across a section of San Francisco Bay.
A ferry service began as early as 1820, with a regularly scheduled service beginning in the 1840s for the purpose of transporting water to San Francisco.
The Sausalito Land and Ferry Company service, launched in 1867, eventually became the Golden Gate Ferry Company, a Southern Pacific Railroad subsidiary, the largest ferry operation in the world by the late 1920s. [undefined] [undefined] Once for railroad passengers and customers only, Southern Pacific's automobile ferries became very profitable and important to the regional economy. [undefined] The ferry crossing between the Hyde Street Pier in San Francisco and Sausalito in Marin County took approximately 20 minutes and cost US$1.00 per vehicle, a price later reduced to compete with the new bridge. [undefined] The trip from the San Francisco Ferry Building took 27 minutes.
Many wanted to build a bridge to connect San Francisco to Marin County.
San Francisco was the largest American city still served primarily by ferry boats.
Because it did not have a permanent link with communities around the bay, the city's growth rate was below the national average.
[undefined] Many experts said that a bridge could not be built across the 6,700 ft (2,042 m) strait, which had strong, swirling tides and currents, with water 372 ft (113 m) deep [undefined] at the center of the channel, and frequent strong winds. Experts said that ferocious winds and blinding fogs would prevent construction and operation. [undefined]
Although the idea of a bridge spanning the Golden Gate was not new, the proposal that eventually took hold was made in a 1916 San Francisco Bulletin article by former engineering student James Wilkins. San Francisco's City Engineer estimated the cost at $100 million, which would have been $2.12 billion in 2009, and impractical for the time. He asked bridge engineers whether it could be built for less. [undefined] One who responded, Joseph Strauss, was an ambitious engineer and poet who had, for his graduate thesis, designed a 55-mile-long (89 km) railroad bridge across the Bering Strait. At the time, Strauss had completed some 400 drawbridges —most of which were inland—and nothing on the scale of the new project. Strauss's initial drawings were for a massive cantilever on each side of the strait, connected by a central suspension segment, which Strauss promised could be built for $17 million. [undefined]
Local authorities agreed to proceed only on the assurance that Strauss would alter the design and accept input from several consulting project experts.
A suspension-bridge design was considered the most practical, because of recent advances in metallurgy. [undefined]
Strauss spent more than a decade drumming up support in Northern California.
[undefined] The bridge faced opposition, including litigation, from many sources.
The Department of War was concerned that the bridge would interfere with ship traffic. The navy feared that a ship collision or sabotage to the bridge could block the entrance to one of its main harbors. Unions demanded guarantees that local workers would be favored for construction jobs. Southern Pacific Railroad, one of the most powerful business interests in California, opposed the bridge as competition to its ferry fleet and filed a lawsuit against the project, leading to a mass boycott of the ferry service. [undefined]
In May 1924, Colonel Herbert Deakyne held the second hearing on the Bridge on behalf of the Secretary of War in a request to use federal land for construction. Deakyne, on behalf of the Secretary of War, approved the transfer of land needed for the bridge structure and leading roads to the "Bridging the Golden Gate Association" and both San Francisco County and Marin County, pending further bridge plans by Strauss. [undefined] Another ally was the fledgeling automobile industry, which supported the development of roads and bridges to increase demand for automobiles. [undefined]
The bridge's name was first used when the project was initially discussed in 1917 by M.M. O'Shaughnessy, city engineer of San Francisco, and Strauss. The name became official with the passage of the Golden Gate Bridge and Highway District Act by the state legislature in 1923, creating a special district to design, build and finance the bridge. [undefined] San Francisco and most of the counties along the North Coast of California joined the Golden Gate Bridge District, with the exception being Humboldt County, whose residents opposed the bridge's construction and the traffic it would generate. [undefined]

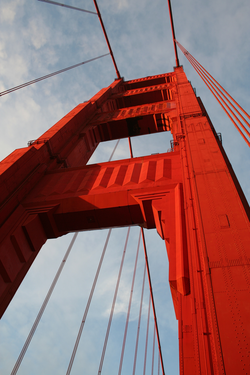

South tower seen from walkway, with Art Deco elements
Strauss was chief engineer in charge of overall design and construction of the bridge project.
[undefined] However, because he had little understanding or experience with cable-suspension designs, responsibility for much of the engineering and architecture fell on other experts.
Strauss's initial design proposal (two double cantilever spans linked by a central suspension segment) was unacceptable from a visual standpoint.
The final graceful suspension design was conceived and championed by Leon Moisseiff, the engineer of the Manhattan Bridge in New York City. [undefined]
Irving Morrow, a relatively unknown residential architect, designed the overall shape of the bridge towers, the lighting scheme, and Art Deco elements, such as the tower decorations, streetlights, railing, and walkways. The famous International Orange color was originally used as a sealant for the bridge. The US Navy had wanted it to be painted with black and yellow stripes to ensure visibility by passing ships. [undefined]
Senior engineer Charles Alton Ellis, collaborating remotely with Moisseiff, was the principal engineer of the project. Moisseiff produced the basic structural design, introducing his "deflection theory" by which a thin, flexible roadway would flex in the wind, greatly reducing stress by transmitting forces via suspension cables to the bridge towers. Although the Golden Gate Bridge design has proved sound, a later Moisseiff design, the original Tacoma Narrows Bridge, collapsed in a strong windstorm soon after it was completed, because of an unexpected aeroelastic flutter.  Ellis was also tasked with designing a "bridge within a bridge" in the southern abutment, to avoid the need to demolish Fort Point, a pre–Civil War masonry fortification viewed, even then, as worthy of historic preservation. He penned a graceful steel arch spanning the fort and carrying the roadway to the bridge's southern anchorage. [undefined]
Ellis was a Greek scholar and mathematician who at one time was a University of Illinois professor of engineering despite having no engineering degree.
He eventually earned a degree in civil engineering from the University of Illinois prior to designing the Golden Gate Bridge and spent the last twelve years of his career as a professor at Purdue University.
He became an expert in structural design, writing the standard textbook of the time.
Ellis did much of the technical and theoretical work that built the bridge, but he received none of the credit in his lifetime.
In November 1931, Strauss fired Ellis and replaced him with a former subordinate, Clifford Paine, ostensibly for wasting too much money sending telegrams back and forth to Moisseiff.
Ellis, obsessed with the project and unable to find work elsewhere during the Depression, continued working 70 hours per week on an unpaid basis, eventually turning in ten volumes of hand calculations.
With an eye toward self-promotion and posterity, Strauss downplayed the contributions of his collaborators who, despite receiving little recognition or compensation, are largely responsible for the final form of the bridge.
He succeeded in having himself credited as the person most responsible for the design and vision of the bridge.
Only much later were the contributions of the others on the design team properly appreciated.
In May 2007, the Golden Gate Bridge District issued a formal report on 70 years of stewardship of the famous bridge and decided to give Ellis major credit for the design of the bridge.
The Golden Gate Bridge and Highway District, authorized by an act of the California Legislature, was incorporated in 1928 as the official entity to design, construct, and finance the Golden Gate Bridge. [undefined] However, after the Wall Street Crash of 1929, the District was unable to raise the construction funds, so it lobbied for a $30 million bond measure. The bonds were approved in November 1930, by votes in the counties affected by the bridge. The construction budget at the time of approval was $27 million. However, the District was unable to sell the bonds until 1932, when Amadeo Giannini, the founder of San Francisco–based Bank of America, agreed on behalf of his bank to buy the entire issue in order to help the local economy. [undefined]
Construction began on January 5, 1933.
[undefined] The project cost more than $35 million, [undefined] ($3.45 billion in 2016 dollars [undefined]) completing ahead of schedule and $1.3 million under budget. [undefined] The Golden Gate Bridge construction project was carried out by the McClintic-Marshall Construction Co., a subsidiary of Bethlehem Steel Corporation founded by Howard H. McClintic and Charles D. Marshall, both of Lehigh University.
Strauss remained head of the project, overseeing day-to-day construction and making some groundbreaking contributions.
A graduate of the University of Cincinnati, he placed a brick from his alma mater's demolished McMicken Hall in the south anchorage before the concrete was poured. He innovated the use of movable safety netting beneath the construction site, which saved the lives of many otherwise-unprotected ironworkers. Of eleven men killed from falls during construction, ten were killed on February 17, 1937, when the bridge was near completion when the net failed under the stress of a scaffold that had fallen. [undefined] According to Travel Channel's Monumental Mysteries , the workers' platform that was attached to a rolling hanger on a track collapsed when the bolts that were connected to the track were too small and the amount of weight was too great to bear. The platform fell into the safety net, but was too heavy and the net gave way. Two out of the twelve workers survived the 200-foot (61 m) fall into the icy waters, including the 37-year-old foreman, Slim Lambert. Nineteen others who were saved by the net over the course of construction became members of their Half Way to Hell Club. [undefined]
The project was finished and opened May 27, 1937.
The Bridge Round House diner was then included in the southeastern end of the Golden Gate Bridge, adjacent to the tourist plaza which was renovated in 2012. [undefined] The Bridge Round House, an Art Deco design by Alfred Finnila completed in 1938, has been popular throughout the years as a starting point for various commercial tours of the bridge and an unofficial gift shop. [undefined] The diner was renovated in 2012 [undefined] and the gift shop was then removed as a new, official gift shop has been included in the adjacent plaza. [undefined]
During the bridge work, the Assistant Civil Engineer of California Alfred Finnila had overseen the entire iron work of the bridge as well as half of the bridge's road work. With the death of Jack Balestreri in April 2012, all workers involved in the original construction are now deceased.
Opening festivities, 50th, and 75th anniversaries
The bridge-opening celebration began on May 27, 1937 and lasted for one week.
The day before vehicle traffic was allowed, 200,000 people crossed either on foot or on roller skates.
[undefined] On opening day, Mayor Angelo Rossi and other officials rode the ferry to Marin, then crossed the bridge in a motorcade past three ceremonial "barriers", the last a blockade of beauty queens who required Joseph Strauss to present the bridge to the Highway District before allowing him to pass. An official song, "There's a Silver Moon on the Golden Gate", was chosen to commemorate the event. Strauss wrote a poem that is now on the Golden Gate Bridge entitled "The Mighty Task is Done." The next day, President Roosevelt pushed a button in Washington, D.C. signaling the official start of vehicle traffic over the Bridge at noon. As the celebration got out of hand there was a small riot in the uptown Polk Gulch area. Weeks of civil and cultural activities called "the Fiesta" followed. A statue of Strauss was moved in 1955 to a site near the bridge.
In May 1987, as part of the 50th anniversary celebration, the Golden Gate Bridge district again closed the bridge to automobile traffic and allowed pedestrians to cross the bridge.
However, this celebration attracted 750,000 to 1,000,000 people, and ineffective crowd control meant the bridge became congested with roughly 300,000 people, causing the center span of the bridge to flatten out under the weight.
[undefined] Although the bridge is designed to flex in that way under heavy loads, and was estimated not to have exceeded 40% of the yielding stress of the suspension cables,  bridge officials stated that uncontrolled pedestrian access was not being considered as part of the 75th anniversary on Sunday, May 27, 2012, [undefined] [undefined] because of the additional law enforcement costs required "since 9/11". [undefined]
Until 1964, the Golden Gate Bridge had the longest suspension bridge main span in the world, at 4,200 feet (1,300 m). Since 1964 its main span length has been surpassed by ten bridges; it now has the second-longest main span in the United States, after the Verrazano-Narrows Bridge in New York City. The total length of the Golden Gate Bridge from abutment to abutment is 8,981 feet (2,737 m). [undefined]
The Golden Gate Bridge's clearance above high water averages 220 feet (67 m) while its towers, at 746 feet (227 m) above the water, [undefined] were the world's tallest on a suspension bridge until 1993 when it was surpassed by the Mezcala Bridge, in Mexico. The Golden Gate Bridge remains the tallest bridge in the United States.
The weight of the roadway is hung from 250 pairs of vertical suspender ropes, which are attached to two main cables. The main cables pass over the two main towers and are fixed in concrete at each end. Each cable is made of 27,572 strands of wire. The total length of galvanized steel wire used to fabricate both main cables is estimated to be 80,000 miles (130,000 km). [undefined]
The bridge has approximately 1,200,000 total rivets.
The color of the bridge is officially an orange vermilion called international orange . [undefined] The color was selected by consulting architect Irving Morrow [undefined] because it complements the natural surroundings and enhances the bridge's visibility in fog. Aesthetics was the foremost reason why the first design of Joseph Strauss was rejected. Upon re-submission of his bridge construction plan, he added details, such as lighting, to outline the bridge's cables and towers.  In 1999, it was ranked fifth on the List of America's Favorite Architecture by the American Institute of Architects.
The bridge was originally painted with red lead primer and a lead-based topcoat, which was touched up as required. In the mid-1960s, a program was started to improve corrosion protection by stripping the original paint and repainting the bridge with zinc silicate primer and vinyl topcoats. [undefined] [undefined] Since 1990, acrylic topcoats have been used instead for air-quality reasons. The program was completed in 1995 and it is now maintained by 38 painters who touch up the paintwork where it becomes seriously corroded. [undefined]

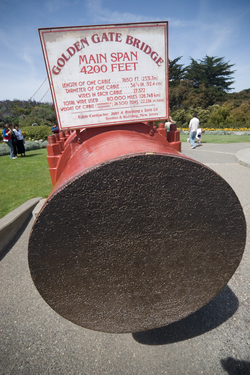

On the south side of the bridge a 36.5-inch-wide (93 cm) cross-section of the cable, containing 27,572 wires, is on display.
Most maps and signage mark the bridge as part of the concurrency between U.S. Route 101 and California State Route 1. Although part of the National Highway System, the bridge is not officially part of California's Highway System. [undefined] For example, under the California Streets and Highways Code § 401, Route 101 ends at "the approach to the Golden Gate Bridge" and then resumes at "a point in Marin County opposite San Francisco". The Golden Gate Bridge, Highway and Transportation District has jurisdiction over the segment of highway that crosses the bridge instead of the California Department of Transportation (Caltrans).

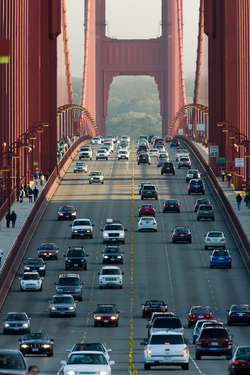

The movable median barrier between the lanes is moved several times daily to conform to traffic patterns. On weekday mornings, traffic flows mostly southbound into the city, so four of the six lanes run southbound. Conversely, on weekday afternoons, four lanes run northbound. During off-peak periods and weekends, traffic is split with three lanes in each direction. [undefined]
From 1968 to 2015, opposing traffic was separated by small, plastic pylons, and during that time, there were 16 fatalities resulting from 128 head-on collisions. [undefined] To improve safety, the speed limit on the Golden Gate Bridge was reduced from 50 to 45 mph (80 to 72 km/h) on October 1, 1989. [undefined] Although there had been discussion concerning the installation of a movable barrier since the 1980s, only in March 2005 did the Bridge Board of Directors commit to finding funding to complete the $2 million study required prior to the installation of a movable median barrier. [undefined] Installation of the resulting barrier was completed on January 11, 2015, following a closure of 45.5 hours to private vehicle traffic, the longest in the bridge's history. The new barrier system, including the zipper trucks, cost approximately $30.3 million to purchase and install. [undefined] [undefined]
Usage and tourism
The bridge is popular with pedestrians and bicyclists, and was built with walkways on either side of the six vehicle traffic lanes.
Initially, they were separated from the traffic lanes by only a metal curb, but railings between the walkways and the traffic lanes were added in 2003, primarily as a measure to prevent bicyclists from falling into the roadway.
The main walkway is on the eastern side, and is open for use by both pedestrians and bicycles in the morning to mid-afternoon during weekdays (5 am to 3:30 pm), and to pedestrians only for the remaining daylight hours (until 6 pm, or 9 pm during DST). The eastern walkway is reserved for pedestrians on weekends (5 am to 6 pm, or 9 pm during DST), and is open exclusively to bicyclists in the evening and overnight, when it is closed to pedestrians. The western walkway is open only for bicyclists and only during the hours when they are not allowed on the eastern walkway. [undefined]
Bus service across the bridge is provided by two public transportation agencies: San Francisco Muni and Golden Gate Transit. Muni offers Saturday and Sunday service on the Marin Headlands Express bus line, and Golden Gate Transit runs numerous bus lines throughout the week. [undefined] [undefined] The southern end of the bridge, near the toll plaza and parking lot, is also accessible daily from 5:30 a.m. to midnight by Muni line 28. [undefined] The Marin Airporter, a private company, also offers service across the bridge between Marin County and San Francisco International Airport. [undefined]
A visitor center and gift shop, dubbed the "Bridge Pavilion", is located on the San Francisco side of the bridge, adjacent to the southeast parking lot. It opened in 2012, in time for the bridge's 75th anniversary celebration. A cafe, outdoor exhibits, and restroom facilities are located nearby. [undefined] On the Marin side of the bridge, only accessible from the northbound lanes, is the H. Dana Bower Rest Area and Vista Point, [undefined] named after the first landscape architect for the California Division of Highways. [undefined]
Lands and waters under and around the bridge are homes to varieties of wildlife such as bobcats and sea lions. [undefined] [undefined] Three species of cetaceans that had been absent in the area for many years show recent recoveries/(re)colonizations vicinity to the bridge, and researchers study them to strengthen protections, concerning actions by public and recommending to watch whales either from the bridge and nearby, or to use a local whale watching operator. [undefined] [undefined] [undefined]
The last of the construction bonds were retired in 1971, with $35 million in principal and nearly $39 million in interest raised entirely from bridge tolls.
In November 2006, the Golden Gate Bridge, Highway and Transportation District recommended a corporate sponsorship program for the bridge to address its operating deficit, projected at $80 million over five years. The District promised that the proposal, which it called a "partnership program," would not include changing the name of the bridge or placing advertising on the bridge itself. In October 2007, the Board unanimously voted to discontinue the proposal and seek additional revenue through other means, most likely a toll increase. [undefined]
In an effort to save $19.2 million over the following 10 years, the Golden Gate District voted in January 2011 to eliminate all toll takers by 2012 and use only open road tolling.  Subsequently, this was delayed and toll taker elimination occurred in March 2013. The cost savings have been revised to $19 million over an eight-year period. In addition to the FasTrak electronic toll collection system, the Golden Gate District implemented the use of license plate tolling (branded as "Pay-by-Plate"), and also a one time payment system for drivers to pay before or after their trip on the bridge. Twenty-eight positions were eliminated as part of this plan. [undefined]
On April 7, 2014, the toll for users of FasTrak was increased from $5 to $6, while the toll for drivers using either the license plate tolling or the one time payment system was raised from $6 to $7.
Bicycle, pedestrian, and northbound motor vehicle traffic remain toll free.
For vehicles with more than two axles, the toll rate is $7 per axle for those using license plate tolling or the one time payment system, and $6 per axle for FasTrak users.
During peak traffic hours, carpool vehicles carrying two or more people and motorcycles pay a discounted toll of $4; drivers must have Fastrak to take advantage of this carpool rate.
[undefined] The Golden Gate Transportation District then planned to increase the tolls by 25 cents in July 2015, and then by another 25 cents each of the next three years.
|Effective date||FasTrak||Toll-by-plate||Carpool||Multi-axle vehicle|
|April 7, 2014||$6.00||$7.00||$4.00||$7.00 per axle|
|July 1, 2015||$6.25||$7.25||$4.25||$7.25 per axle|
|July 1, 2016||$6.50||$7.50||$4.50||$7.50 per axle|
|July 1, 2017||$6.75||$7.75||$4.75||$7.75 per axle|
|July 1, 2018||$7.00||$8.00||$5.00||$8.00 per axle|
In March 2008, the Golden Gate Bridge District board approved a resolution to start congestion pricing at the Golden Gate Bridge, charging higher tolls during the peak hours, but rising and falling depending on traffic levels. This decision allowed the Bay Area to meet the federal requirement to receive $158 million in federal transportation funds from USDOT Urban Partnership grant.  As a condition of the grant, the congestion toll was to be in place by September 2009.
The first results of the study, called the Mobility, Access and Pricing Study (MAPS), showed that a congestion pricing program is feasible.
 The different pricing scenarios considered were presented in public meetings in December 2008.
In August 2008, transportation officials ended the congestion pricing program in favor of varying rates for metered parking along the route to the bridge including on Lombard Street and Van Ness Avenue. [undefined]
The Golden Gate Bridge is the second-most used suicide site / suicide bridge in the world, after the Nanjing Yangtze River Bridge. [undefined] The deck is about 245 feet (75 m) above the water.  After a fall of four seconds, jumpers hit the water at around 75 mph or about 120 km/h. Most of the jumpers die from impact trauma. About 5% of the jumpers survive the initial impact but generally drown or die of hypothermia in the cold water. [undefined] [undefined]
After years of debate and over an estimated 1,500 deaths, suicide barriers began to be installed in April 2017.
Construction will take approximately four years at a cost of over $200 million.
Since its completion, the Golden Gate Bridge has been closed because of weather conditions only three times: on December 1, 1951, because of gusts of 69 mph (111 km/h); on December 23, 1982, because of winds of 70 mph (113 km/h); and on December 3, 1983, because of wind gusts of 75 mph (121 km/h).
An anemometer, placed midway between the two towers on the west side of the bridge, has been used to measure wind speeds. Another anemometer was placed on one of the towers.
Seismic vulnerability and improvements
Installation of the movable median barrier system in January 2015
Modern knowledge of the effect of earthquakes on structures led to a program to retrofit the Golden Gate to better resist seismic events. The proximity of the bridge to the San Andreas Fault places it at risk for a significant earthquake. Once thought to have been able to withstand any magnitude of foreseeable earthquake, the bridge was actually vulnerable to complete structural failure (i.e., collapse) triggered by the failure of supports on the 320-foot (98 m) arch over Fort Point. [undefined] A $392 million program was initiated to improve the structure's ability to withstand such an event with only minimal (repairable) damage. One challenging undertaking is completing this program without disrupting traffic. A complex electro-hydraulic synchronous lift system was custom built for construction of temporary support towers and a series of intricate lifts, transferring the loads from the existing bridge onto the temporary supports. This was completed with engineers from Balfour Beatty and Enerpac, accomplishing this task without disrupting day-to-day San Francisco commuter traffic. [undefined] [undefined] The retrofit was planned to be completed in 2012. [undefined] [undefined]
The former elevated approach to the Golden Gate Bridge through the San Francisco Presidio, known as Doyle Drive, dated to 1933 and was named after Frank P. Doyle, President and son of the founder of the Exchange Bank in Santa Rosa, and the man who, more than any other person, made it possible to build the Golden Gate Bridge.
[undefined] The highway carried about 91,000 vehicles each weekday between downtown San Francisco and the North Bay and points north. [undefined] The road was deemed "vulnerable to earthquake damage", had a problematic 4-lane design, and lacked shoulders, and a San Francisco County Transportation Authority study recommended that it be replaced. Construction on the $1 billion [undefined] replacement, temporarily known as the Presidio Parkway, began in December 2009. [undefined] The elevated Doyle Drive was demolished on the weekend of April 27–30, 2012, and traffic used a part of the partially completed Presidio Parkway, until it was switched onto the finished Presidio Parkway on the weekend of July 9–12, 2015. As of May 2012, an official at Caltrans said there is no plan to permanently rename the portion known as Doyle Drive. [undefined]
In popular culture
As a prominent American landmark, the Golden Gate Bridge has been used in numerous media which includes books, films and video games.
