Fiat Doblò

Fiat Doblò

The Fiat Doblò is a panel van and leisure activity vehicle produced by Italian automaker Fiat since 2000. It was unveiled at the Paris Motor Show in October 2000.[1]

Fiat Doblò
Fiat Doblo (22707961995).jpg
Overview
ManufacturerFiat
Production2000–present
Body and chassis
ClassPanel van/leisure activity vehicle
Chronology
PredecessorFiat Fiorino
Fiat Marengo
First generation (223)
Overview
Also calledFiat Panorama (Singapore)
Fiat Doblò Classic
Pyongwha Ppeokkugi
Production2000–2010 (Europe)
2001-2017 (Brazil)
AssemblyBursa, Turkey (Tofaş)
Akçalar, Turkey (Karsan)[2]
Betim, Minas Gerais, Brazil (Fiat Automóveis)
Naberezhnye Chelny, Russia (Fiat-Sollers)
Ho Chi Minh City, Vietnam
(Mekong Auto)
Body and chassis
Body style4/5-door panel van
5-door LAV
RelatedFiat Punto
Fiat Palio
Fiat Albea
Fiat Siena
Fiat Strada
Lancia Y
Powertrain
Engine1.2 L Fire I4 (petrol)
1.4 L Fire I4 (petrol)
1.6 L Torque I4 (petrol)
1.6 L Torque Natural Power I4 (CNG)
1.8 L Ecotec N18XFH I4 gasoline
1.8 L E.torQ I4 (Flexfuel)
1.3 L Multijet I4 (diesel)
1.9 L D I4 (diesel)
1.9 L JTD I4 (diesel)
1.9 L Multijet I4 (diesel)
Transmission5-speed manual
6-speed manual
Dimensions
Wheelbase2,583 mm (101.7 in)
2,963 mm (116.7 in) (Doblò Maxi)
Length4,158 mm (163.7 in) (until 2005)
4,253 mm (167.4 in) (from 2005)
4,633 mm (182.4 in) (Doblò Maxi)
4,354 mm (171.4 in) (Adventure)[3]
Widthfrom 1,715 mm (67.5 in) (until 2005)
1,722 mm (67.8 in) (from 2005)
1,763 mm (69.4 in) (Adventure)
Height1,818 mm (71.6 in) (from 2005)
2,086 mm (82.1 in) (high roof)
1,957 mm (77.0 in) (Adventure)
Second generation (263)
Fiat Doblò Cargo Maxi 1.6 16V Multijet (II) – Frontansicht, 3. März 2013, Düsseldorf.jpg
Overview
Also calledOpel Combo
Fiat Doblò Work Up
Fiat Pratico
Vauxhall Combo
Ram ProMaster City (NAFTA)
Ram V1000 (Chile)
Production2010–present
AssemblyTurkey: Bursa (Tofaş)
Body and chassis
Body style2-door chassis cab
2-door pickup
3-door panel van
4-door panel van
5-door panel van
5-door LAV
PlatformFCA Small LWB platform
RelatedFiat Fiorino
Fiat Grande Punto[11]
Fiat Linea
Opel Corsa D
Powertrain
Engine
  • 1.4 L Fire I4 (petrol)
  • 1.4 L Fire I4 (turbocharged CNG)
  • 1.3 L Multijet I4 (turbocharged diesel)
  • 1.6 L Multijet I4 (turbocharged diesel)
  • 2.0 L Multijet I4 (turbocharged diesel)
  • 2.4 L Tigershark I4 (petrol)
Transmission
  • 5-speed manual
  • 6-speed manual
  • 5-speed Dualogic semi-automatic
  • 9-speed 948TE automatic
Dimensions
WheelbaseSWB: 2,755 mm (108.5 in)[11]
LWB: 3,105 mm (122.2 in)
LengthSWB: 4,390 mm (172.8 in)
LWB: 4,756 mm (187.2 in)
WidthSWB: 1,832 mm (72.1 in)
LWB: 1,832 mm (72.1 in)
HeightSWB: 1,845 mm (72.6 in)
LWB: 1,880 mm (74.0 in)
Chronology
PredecessorRam C/V Tradesman (for ProMaster City)

First generation (2000–2009)

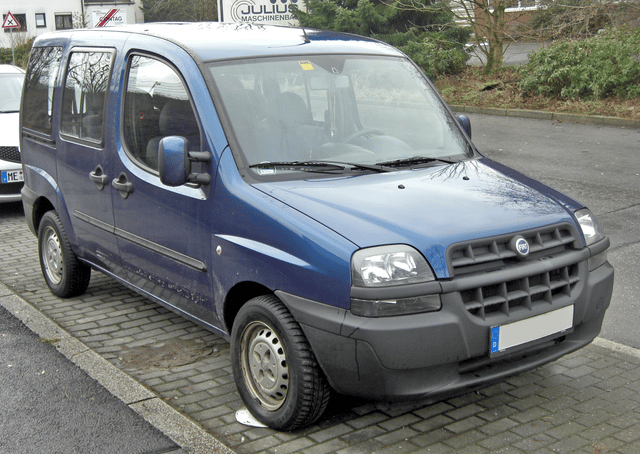

Pre facelift Fiat Doblò

Pre facelift Fiat Doblò

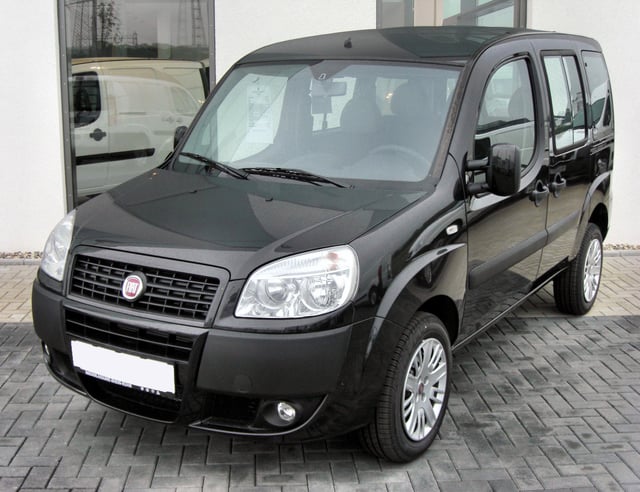

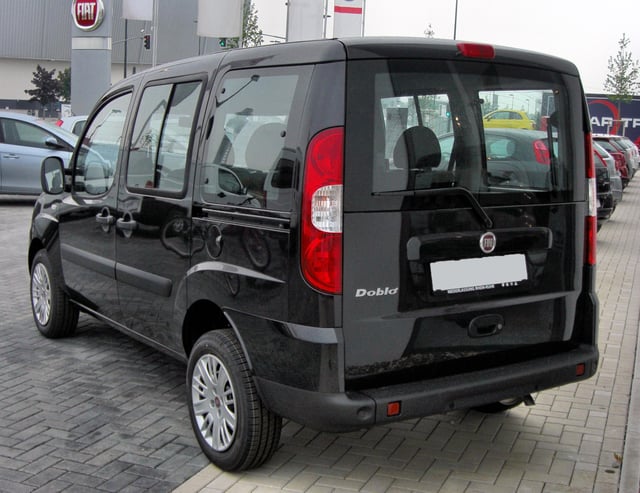

Post facelift Fiat Doblò

Post facelift Fiat Doblò

Post facelift Fiat Doblò

Post facelift Fiat Doblò

It was first launched to the public in the Netherlands, and received the "2006 International Van of the Year" award by an international jury from 19 countries. In Singapore, a 1.4 litre LAV variant is marketed as the Fiat Panorama in five and seven seater versions.[4] The first Doblò was sold in January 2001.

The Doblò carries a payload of up to 730 kg (1,609 lb), with an interior volume of 3.2 cubic metres (110 cu ft). The Doblò uses Fiat Strada's platform, in turn derived from the Fiat Palio's one, using a rigid axle with leaf springs at the rear, instead of a torsion beam with coil springs as on the Palio.[1]

It is manufactured by Fiat's Tofaş subsidiary factory in Bursa, Turkey, in Brazil since 2002 and in Russia and Vietnam. Turkish models have an engine range that includes a 1.4 litre petrol, a 1.9 litre MultiJet, and a 16 valve 1.3 litre MultiJet.

In North Korea, Pyonghwa Motors produces Doblò branded as its own name Ppeokkugi.[5] The facelift version came in October 2005, and was restyled with modifications to the front and rear light groups, and the total design of the front part.

Brazilian Doblò

Launched in 2002, the Brazilian Doblòs were initially available with two 16 valve petrol engines, a 1.3 litre Fire and a 1.6 litre Torque. From 2004 to 2009, the only engine available in Brazil was an 8 valve 1.8 litre Ecotec, supplied by General Motors do Brasil. This engine was produced initially in a petrol version, and later as flex fuel.

In September 2003, Fiat Brazil introduced an off road 4x2 version called Fiat Doblò Adventure, also with the straight-4 Ecotec 1800 cc engine. It has revised exterior look with bigger bumpers and mouldings and raised ride height 6 cm (2.4 in) and spare wheel on the rear.[6]

In 2009, the whole Adventure line (Doblò, Idea, Strada and Palio Weekend) was equipped with a locking differential. The line was rebadged as Adventure Locker. Only in the model year of 2010, the Brazilian Doblò and the Doblò Adventure were updated with the European facelift of 2005.

Besides the 1.8 litre Powertrain, Doblò is now equipped with a 1.4 litre Fire flex engine.[7] In the model year of 2011, the 8 valve 1.8 litre Ecotec engine was replaced by the brand new 16 valve 1.8 litre E.torQ engine, produced by Fiat Powertrain Technologies.[8]

Engines

2000–2006

ModelTypePower
1.2petrol65 PS (48 kW; 64 hp)
1.6 Natural Powernatural gas92 PS (68 kW; 91 hp)
1.9 Ddiesel63 PS (46 kW; 62 hp)
1.9 JTDdiesel105 PS (77 kW; 104 hp)

2006–2009

ModelTypePower
1.4petrol77 PS (57 kW; 76 hp)
1.6 Natural Power (CNG)Natural gas92 PS (68 kW; 91 hp)
1.3 16v Multijetdiesel75 PS (55 kW; 74 hp)
1.3 16v Multijetdiesel84 PS (62 kW; 83 hp)
1.9 Multijetdiesel105 PS (77 kW; 104 hp)
1.9 16v Multijetdiesel120 PS (88 kW; 120 hp)

Electric versions

Micro-Vett Fiat Doblò has three battery versions:[9]

  • Go Green, an 18 kWh Altairnano lithium-ion NanoSafe battery pack. The battery pack can be fully recharged in less than ten minutes using AeroVironment's high voltage, 125 kW rated, rapid charging system.

  • a 43 kWh lead acid battery pack, providing a range of 150 km (93 mi) in the urban duty cycle on a single charge; recharging takes 5–8 hours

  • 60 x 200 AH 3.6V lithium modules; Battery life: 1000 cycles at 80% DOD / 2000 cycles at 70% DOD

The vehicle uses a 30 kW (60 kW peak) motor from Ansaldo Electric Drives (a S.p.A. based in Genoa[10]), that gives 120 km/h (75 mph) top speed.

On October 2, 2007, a sixty day demonstration of the All-Electric Fiat Doblo was begun. The Electric engine is powered by a custom 18 kWh Altairnano high performance NanoSafe(R) battery pack, travelled 300 kilometres (190 mi) in an urban delivery circuit.

The custom battery pack was fully recharged in less than ten minutes a total of three times using AeroViroments' high voltage, 125 kW rated, rapid charging system. The vehicle was driven an estimated total of 7,500 kilometres (4,700 mi) during the sixty day demonstration period, which translates to an annual equivalent use of 45,000 kilometres (28,000 mi).

Second generation (2010–present)

Fiat Doblo (Europe)

Fiat Doblo (Europe)

The all new Doblò (Type 263) was launched in the beginning of 2010, and it is built in Turkey by Tofaş. The 2010 Doblò uses the Fiat Small platform, derived from the Grande Punto, with a new bi-link independent rear suspension instead of a torsion beam, which has 2,755-millimetre (108.5 in) wheelbase, 790-litre (28 cu ft) luggage compartment, and low CO2 emissions (129 g/km with the 1.3 Multijet 90 PS (66 kW; 89 hp) engine).[12] The Doblò was also sold by Opel and Vauxhall as the Combo.[13]

As of July 2011 the Doblò is available as a pickup called Fiat Doblò Work Up[14] or Fiat Pratico in Turkey.[15] There is also a raised roof version, as well as an extended wheelbase van called the "Doblò Cargo Maxi".

These two features are combined for the Fiat Doblò Cargo XL, a high roofed, long wheelbase panel van model, with a one tonne payload, equipped with the 105 hp (78 kW) 1.6 litre Multijet common rail diesel. The XL, which can carry as much as the bigger and more expensive Scudo, was presented in the United Kingdom in May 2013.[16]

In other markets the XL appeared in 2012, and it is available with all diesel engines excepting the 1.3, and also the 1.4 T-Jet. There is also an XL Combi, with a 135 PS (99 kW) version of the 2.0 diesel.[17]

Doblò EV

In February 2010, Tofaş have revealed their development activities on the All-Electric version of their Doblò 2010.[18]

The vehicle itself was also introduced to press in July 2010, as "The First Commercial Electrical Vehicle Developed in Turkey".[19] It has been also revealed that, Tofaş will be FIAT's development pole for electric light commercial vehicles (LCV).[20] In the one millionth ceremony of the Doblo, the Doblo EV was tested by press and Turkish Minister of Industry and Commerce, Nihat Ergün.

In February 2019, the first Doblò EV was delivered to the turkish fashion company Vakko. The Doblò EV has an electric motor delivering 111 horsepower of maximum power and a torque of 220 Nm. The autonomy at full load is 210 km with a single recharge. The 30 kWh battery is located in the rear floor. Overall the Doblò EV weighs 150 kg more than the Cargo 1.6 Multijet version.[21]

Facelift

2015 Facelift

2015 Facelift

2015 facelift

2015 facelift

Introduced at the Hanover Motor Show, the 2015 Fiat Doblò receives a revised front end with new headlamps, grille, and front bumper to coincide with the release of the Ram ProMaster City.[22]

Ram ProMaster City

A 2015 Ram ProMaster City Tradesman Cargo Van (US)

A 2015 Ram ProMaster City Tradesman Cargo Van (US)

The Ram ProMaster City (Type 636) is an Americanised version of the Fiat Doblò introduced in the model year of 2015, to succeed the Dodge Caravan based C/V Tradesman. The ProMaster City is built in the same plant in Turkey as the Doblò and exported to North America.

To circumvent the chicken tax, only passenger vans are imported into North America, with cargo vans being post-import conversions.

Unlike the Doblò, passenger versions of the ProMaster City use solid metal panels instead of glass in its rear quarters, and third row seating and the lift tailgate options are not offered. The 2.4 litre Tigershark engine mated to the 948TE nine speed automatic transmission is the only power train available for the ProMaster City.[23]

Ram ProMaster City Facelift (2019)

Like the larger Ram ProMaster, the Ram ProMaster City received a facelift for the 2019 model year. The front "crosshair" grille was replaced with a plain front grille with the 'RAM' lettering. The new front grille is reminiscent of the one on the all-new 2019 Ram 1500 pickup truck.

The interior of the facelifted 2019 Ram ProMaster City remains largely unchanged rom its 2018 predecessor, although the U Connect 3 5.0BT touchscreen radio is now standard equipment (both GPS navigation and SiriusXM Satellite Radio still remain options), replacing the previously-standard U Connect 3.0 non-touchscreen radio on 2018 models. This is due to the National Highway Traffic Safety Administration (NHTSA) regulation of standard rearview backup cameras for the 2019 model year. Now standard are a USB input as well as U Connect Bluetooth hands-free calling and wireless A2DP audio streaming, as well as voice control.

The standard and only available engine option for the Ram ProMaster City remains the 2.4L "Tigershark" Inline Four-Cylinder (I4) gasoline engine, producing 184 horsepower and 174 lb. ft. of torque, and mated to the ZF 948TE 9-speed automatic transmission. All ProMaster City models remain Front Wheel Drive (FWD). Trim levels are Tradesman, SLT, Wagon, and Wagon SLT. Wagon SLT buyers can opt for the SLT Wagon Premium Package, which adds rear speakers, power rear windows, and rear tinted window glass, as well as the SLT Lights and Wheels Group, which adds sixteen-inch (16") aluminum-alloy wheels and front fog lamps (this package is also included with the SLT Wagon Premium Package). Pricing (MSRP) for the 2019 Ram ProMaster City starts at $24,295, before options.[24]

Engines

Petrol engine
ModelEnginePower@rpmTorque@rpmNote
1.4 FIRE1368 cc I495 PS (70 kW; 94 hp)@6000127 N⋅m (94 lb⋅ft)@45002009-on
2.4 Tigershark12360 cc I4179 PS (132 kW; 177 hp)@6250236 N⋅m (174 lb⋅ft)@39002015-on
Compressed natural gas
ModelEnginePower@rpmTorque@rpmNote
1.4 T-JET Natural Power1368 cc I4120 PS (88 kW; 118 hp)@5000207 N⋅m (153 lb⋅ft)@20002009-on
Diesel engine
ModelEnginePower@rpmTorque@rpmNote
1.3 Multijet1248 cc I490 PS (66 kW; 89 hp)@4000200 N⋅m (148 lb⋅ft)@15002009-on
1.6 Multijet1598 cc I4105 PS (77 kW; 104 hp) @4000 rpm290 N⋅m (214 lb⋅ft) @15002009-on
2.0 Multijet1956 cc I4135 PS (99 kW; 133 hp) @3500 rpm320 N⋅m (236 lb⋅ft) @15002009-on

1 Only for Ram ProMaster City
